The DC-DC converter series uses high-frequency inverter technology, its size, weight, energy consumption, efficiency and other performance and reliability are better than other similar products,
Wide input voltage range (36 ~ 75V) can meet the different voltage levels of electric vehicles.
Performance Introduction:
High inverter frequency, fast response, small size, light weight, low power consumption, high efficiency, materials, energy conservation;
A wide range of anti-voltage fluctuation, strong ability, high control accuracy;
It has a whole over temperature, output reverse polarity, output overcurrent and short circuit protection, safe and reliable;
Low temperature, high temperature, humidity, sour, dust, vibration environment adaptability strong, stable and reliable;

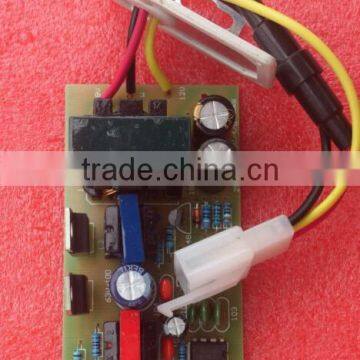

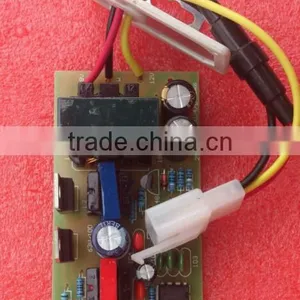

The modular design of the circuit configuration, installation and maintenance quick and easy.
Features:
1. Short-circuit protection: When the output short-circuit converter stops working, remove the automatic return to work after a short circuit;
2. overcurrent protection: When the output current reaches the current value converter protection to stop working;
3. over-voltage protection: When the output voltage is higher than the rating of the converter stops working.
Technical parameters:
1. Input voltage: 36v ~ 75V
2. Input Current: <10A (full load)
3. Working Frequency: 250KHz
4. Output voltage: 24.0 ± 0.2V
5. Output current: 0 ~ 10A
6. Maximum power: 240W
7. Efficiency: 90% typical
8. Voltage stability: <1%
9. Load stability: <1%
10. Insulation resistance: between input and output between> 50MΩ between Input and enclosure> 50MΩ Output and enclosure> 50MΩ
11. Weight: 0.25Kg
12. Start Delay: Within 2 seconds
13. Operating temperature: -30 ℃ ~ + 55 ℃

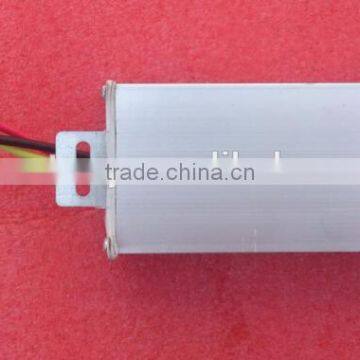

14. Size: 116 * 50 * 35MM

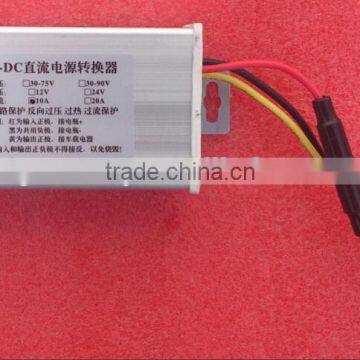

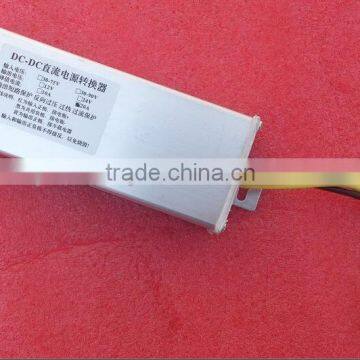

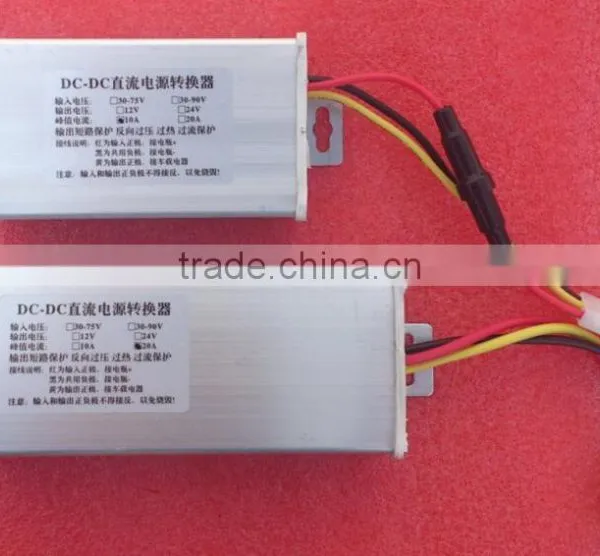

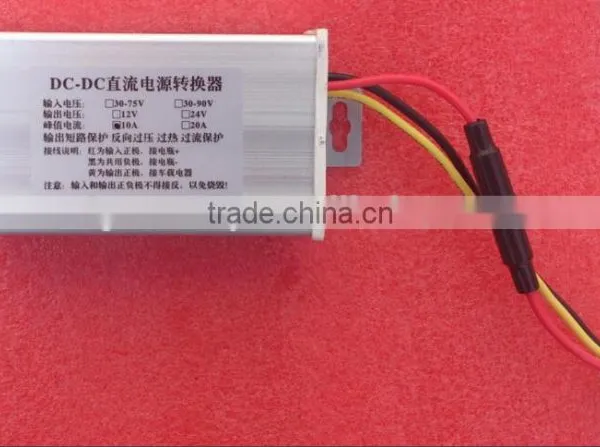

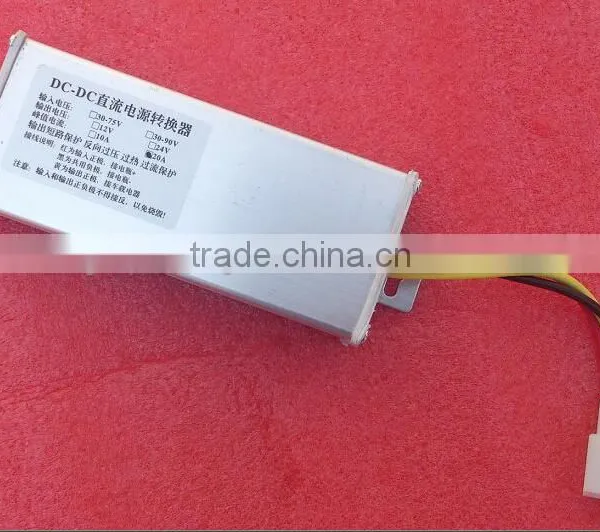

15. Wiring instructions:

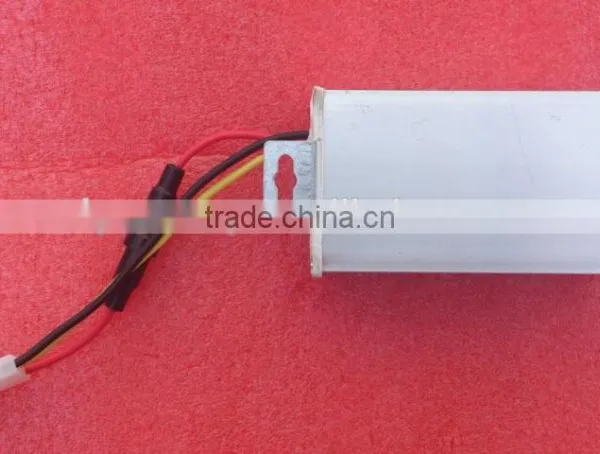

Input section: coarse red is positive, thick black is negative;
Output section: coarse yellow (blue) is positive, thick black is negative
