The Isolated DC-DC converter is designed for car audio and video products to build, car LCD because of engine and vehicle motor noise cited cited moire interference cancellation, can also eliminate car CD, DVD, MP3, hard disk player, multimedia player to the total noise.
Product Description:
This product uses 36U thickened deposited copper PCB (standard for 22u), the circuit uses efficient high-frequency switching power supply IC, MOS tube using high power low internal resistance (current 75A, resistance is 0.016 Europe), freewheeling diode with high current and capacitor using high-frequency low impedance electrolytic capacitor.

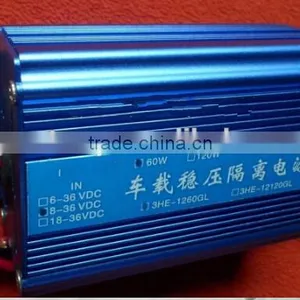

Model: 12120GL
First, technical parameters
The input voltage: DC8V-36V
The output voltage: DC5V (output voltage can be adjusted according to customer requirements)
The output current (Max): 12A
The corresponding power: 60W
The output voltage ripple coefficient is less than 0.7%.
The quiescent current: less than 20mA
The conversion efficiency: 85%
The maximum working temperature: 80 C
Exterior dimension: 103 * 70 * 45mm

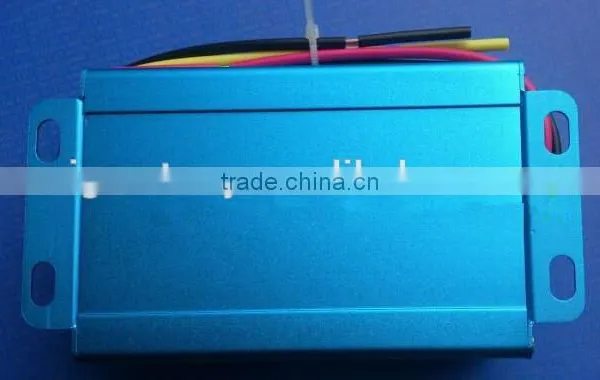

Connection Description: input part: red positive 8-36V connected battery positive electrode, negative electrode;
The output part: yellow is 5V connected to the vehicle electrical equipment, black cathode.
Two, function:
The overvoltage protection circuit fault caused by output voltage is too high, the system will stop output voltage.
O over current protection: when the external load is too large, causing the output current is greater than the 12a, the system will automatically limit the output current to 12a, guarantee power supply stability.
our company specialized in the manufacture and export of electric system products , including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator ,air conditioning system,electric system solution .etc
