36v 48v 60v to 12v 20a 240w Dc-dc Power Converter

36v 48v 60v to 12v 20a 240w Dc-dc Power Converter thumbnail-1
36v 48v 60v to 12v 20a 240w Dc-dc Power Converter thumbnail-2
36v 48v 60v to 12v 20a 240w Dc-dc Power Converter thumbnail-3
36v 48v 60v to 12v 20a 240w Dc-dc Power Converter photo-1
36v 48v 60v to 12v 20a 240w Dc-dc Power Converter photo-2
36v 48v 60v to 12v 20a 240w Dc-dc Power Converter photo-3
US$ 6.3 - 8.9 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GW
Model Number:
HE30S72-1220
Contact Supplier Request Quote Chat Now
Dezhou Greatway Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name GW
Model Number HE30S72-1220
Output Power Other, 240W
Output Type Other, SINGLE
Size 140*65*35MM
Weight 0.4kg
Input Voltage 30v-75v
Output Voltage 13.0±0.5V
Type DC/DC Converters
Output Current 20A

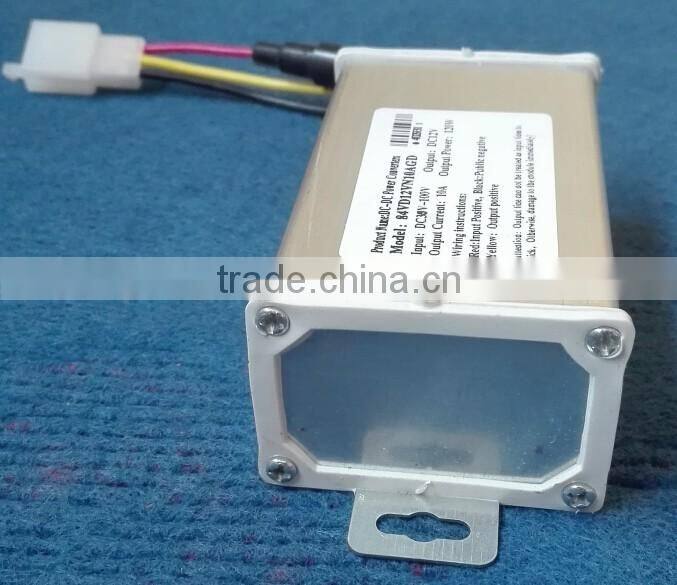

 36v 48v 60v to 12v 20a 240w dc-dc power converter

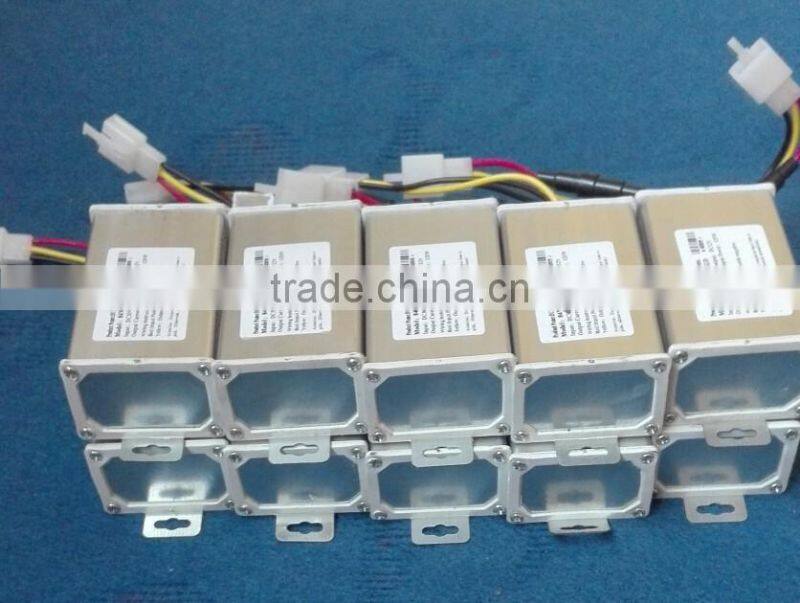

36v 48v 60v to 12v 20a 240w dc-dc power converter









Packaging & Shipping

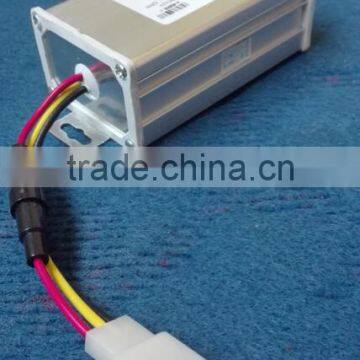

36v 48v 60v to 12v 20a 240w dc-dc power converter











Product Description



The Model DC-DC converter series uses high-frequency inverter technology, a wide range of input voltage (30 ~ 75V) to meet the different voltage levels of electric vehicles

Due to using the PWM switch technology, the converter has just  very little no-load loss.

Product features:

1 short circuit protection: when the output short circuit, the converter stops working, the automatic recovery after short circuit is eliminated;

2 overcurrent protection: when the output current reaches the value of protecting the current, the converter stops working;

3 overvoltage protection: when the output voltage is higher than the rated value, the converter stops working.

Technical parameter:

1 input voltage: 30~75V

2 input current: < 10A (full load)

3 working frequency: 250KHz

4 output voltage: 13 + 0.2V

5 output current: 0~20A

6 maximum power: 240W

7 efficiency: typical value 90%

8 voltage stability: < 1%

9 load stability: < 1%

10 insulation resistance: input and output > 50M

Between the input and the shell > 50M

Between the output and the shell > 50M

11 weight: 0.25Kg

12 start delay:  within 2 seconds

13 working temperature: ~+55 C -30 C

14 specification: 116*50*35MM

Our Services

 36v 48v 60v to 12v 20a 240w dc-dc power converter



Company Information

 36v 48v 60v to 12v 20a 240w dc-dc power converter

our   company specialized in the manufacture and export of electric system &control systems *supporting products ,  including pure sine wave power inverter, motor controller,charger,DC-DC  converter,electronic throttle,battery discharge indicaitor ,hour meter &tachmeter ,Air conditioning systems,electric system solution .etc
