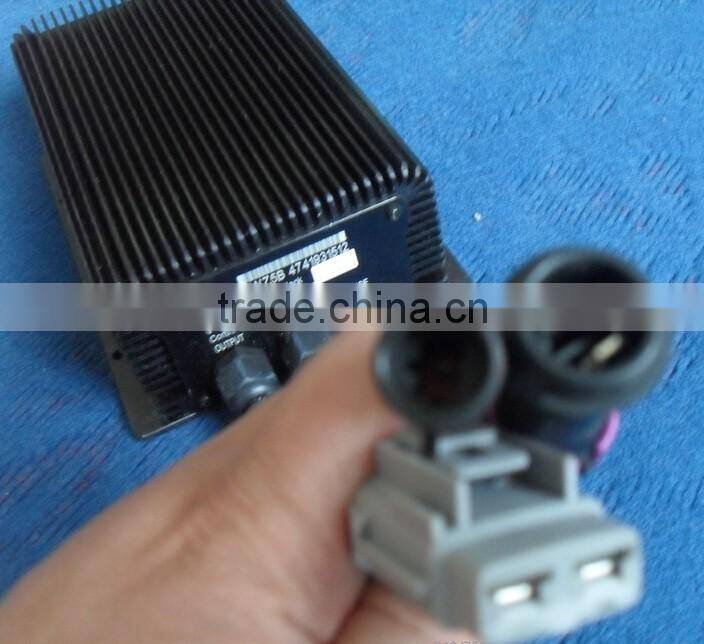

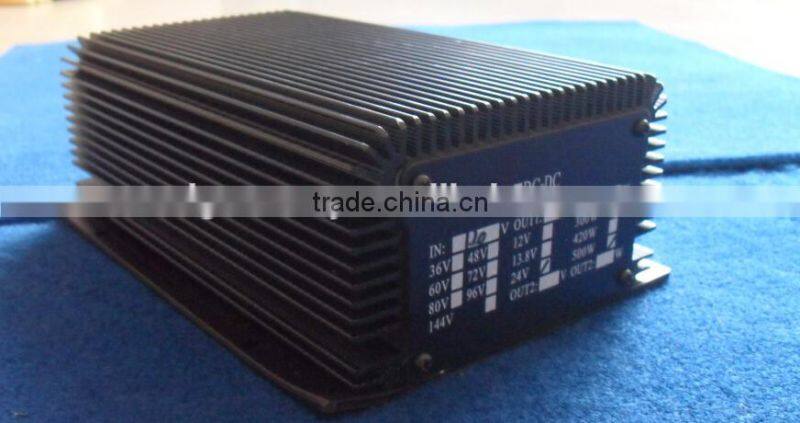

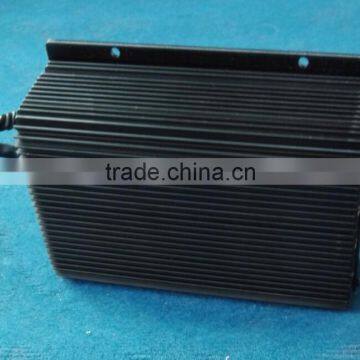

Help Center500w/600w 90v -144v to 14v Isolated DC-DC Converter for ev
Related Products
-
500w/600w 120v to 14v Isolated DC-DC ConverterNegotiableMOQ: 1 Piece -
1200w 168V /180V to 12v Isolated dc dc Converter for evNegotiableMOQ: 1 Piece
-
30V-90V to 12v ,20a Dc-dc Buck Power ConverterNegotiableMOQ: 1 Piece
-
30v-90v to 12v 10a DC-DC Step Down Power ConverterNegotiableMOQ: 1 Piece
-
18v-36v to 24v 30a Waterproof Isolated DC-DC Power Converter With Air CoolingUS$ 115 - 139MOQ: 1 Piece

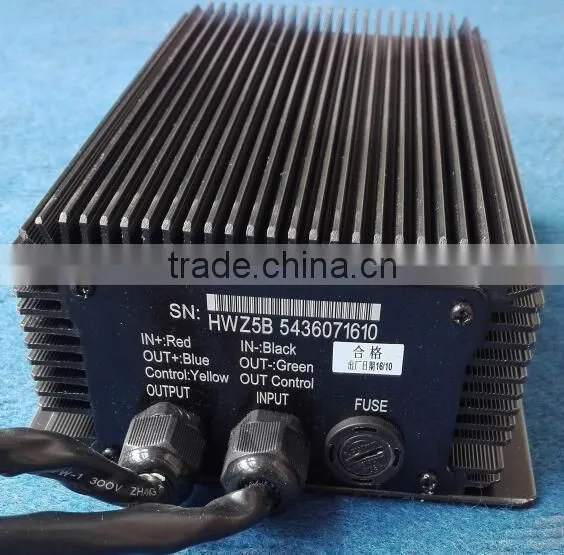

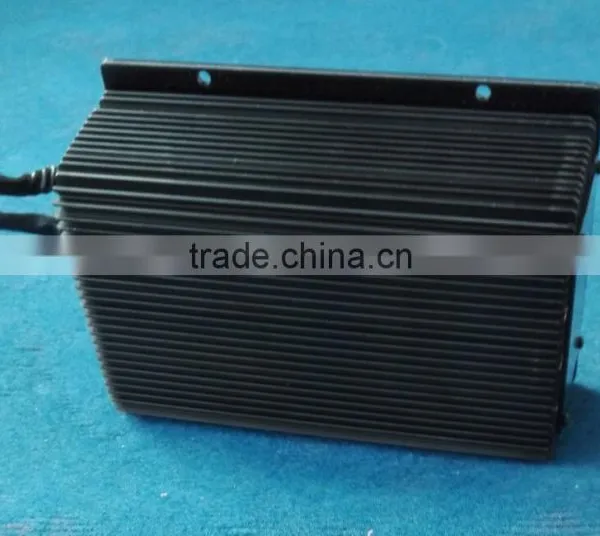

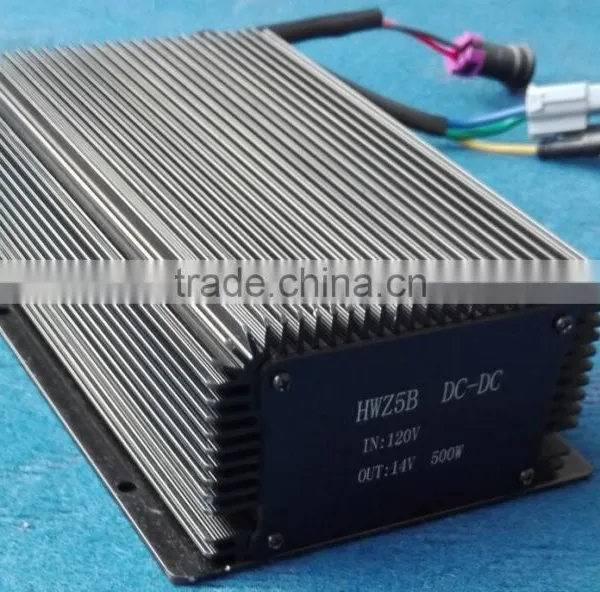

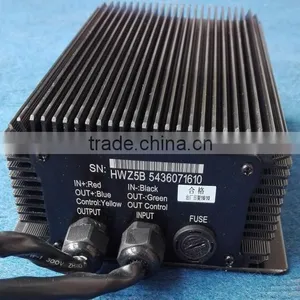

High Efficiency Series Isolated DC/DC Converter applies advanced technology and is configured specifically for electric vehicles. Designed to provide a reduced voltage supply to power auxiliary electrical systems, it‘s isolated between in input and output. HWZ5 Series High Efficiency DC/DC Converter has achieved an unmatched level of efficiency and safety. Current equalizer is set in, which makes the converter work in parallel in order to enlarge the capability. It is sealed by silica to make the Convert waterproof and quakeproof, which ensure the stability of the vehicle in any condition.
Technical Parameter:
Power Nominal Rating: 500W max power :600w
Input Voltage: DC120v (90v-144v)
Output Voltage: 14v ±0.2 (no load) ,
≥13.5v (full load)
Nominal Current Output: 45±2a
Output Voltage ripple: ≤1%
Efficiency: ≥90%
Output short-circuit protection: Yes
Input reversal connect protection: Yes
Operating Temp: -30℃ — +60℃
Storagting Temp: -40℃ — +85℃
Size: Z5— 200mm*140mm*71mm
Z5S— 230mm*140mm*71mm
Weight: 3.5kg
Thermal protection: Thermal switch cuts at +85℃ and resets at +80℃

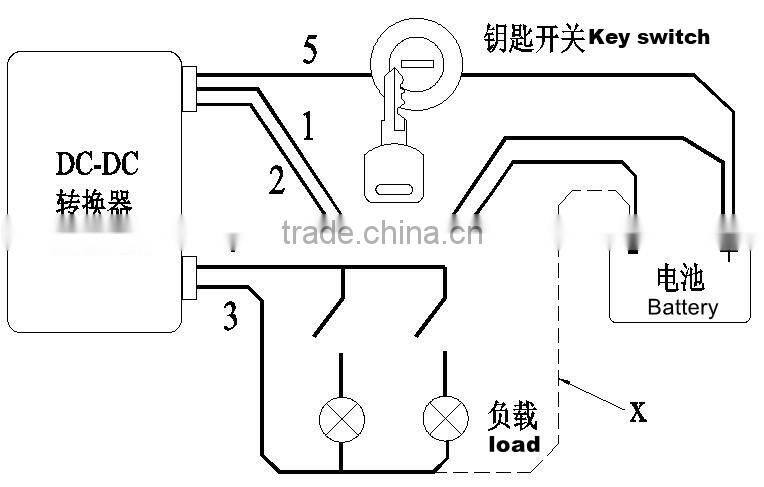

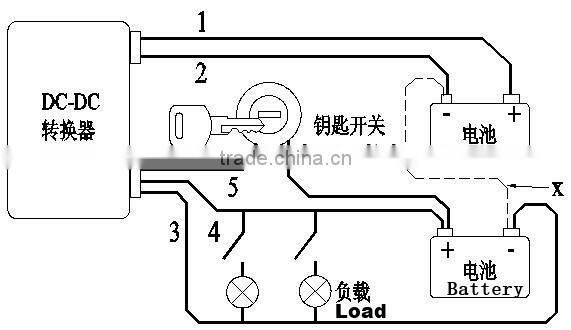

Electronic switch: Inside, control key switches
Shock and Vibration: SAEJ1378
our company specialized in the manufacture and export of electric system products , including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator,hour tachometer ,air conditioning system,electric system solution .etc
