30V-90V to 12v ,20a Dc-dc Buck Power Converter

Dezhou Greatway Import And Export Co., Ltd.
30V-90V to 12v ,20a Dc-dc Buck Power Converter thumbnail-1
30V-90V to 12v ,20a Dc-dc Buck Power Converter thumbnail-2
30V-90V to 12v ,20a Dc-dc Buck Power Converter thumbnail-3
30V-90V to 12v ,20a Dc-dc Buck Power Converter thumbnail-4
30V-90V to 12v ,20a Dc-dc Buck Power Converter thumbnail-5
30V-90V to 12v ,20a Dc-dc Buck Power Converter photo-1
30V-90V to 12v ,20a Dc-dc Buck Power Converter photo-2
30V-90V to 12v ,20a Dc-dc Buck Power Converter photo-3

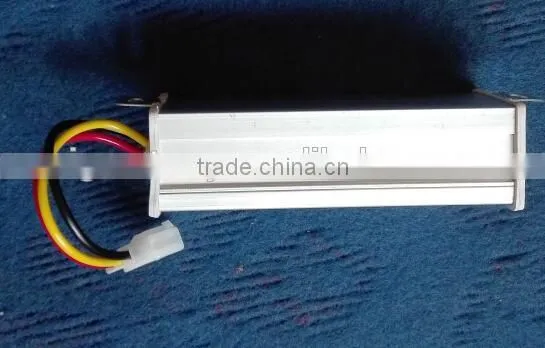

30V-90V to 12v ,20a Dc-dc Buck Power Converter photo-4
30V-90V to 12v ,20a Dc-dc Buck Power Converter photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
gw
Model Number:
HE30S90-1220
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name gw
Model Number HE30S90-1220
Output Power Other, 200w
Output Type Other, single and dual
Size 116*50*35mm
Weight 0.25kg
Input Voltage 30V-90V
Output Voltage 12V
Type DC/DC Converters
Output Current 15A/20A



Unisolated DC-DC Converter

No isolation DC-DC Converter

Converter

Converters

Isolated dc to dc converter

Isolation converter

Car converter

Electric vehicle converter

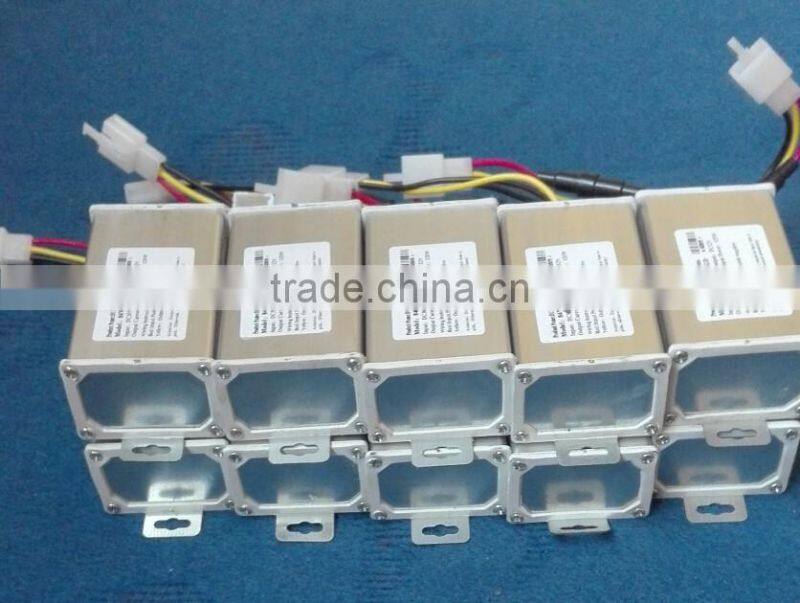

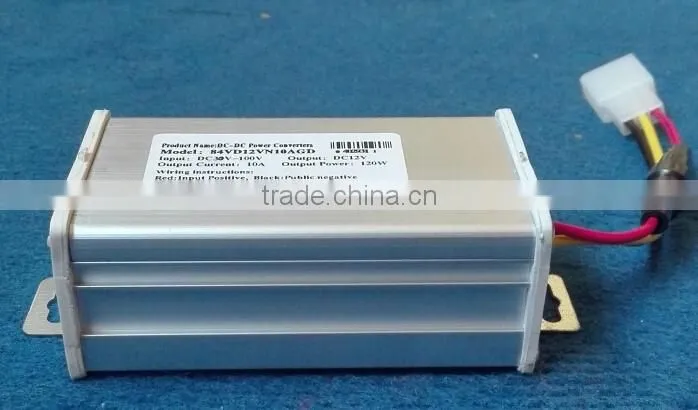

 30V-90V to 12v ,20a dc-dc buck power converter30V-90V to 12v ,20a dc-dc buck power converter











Features:
1. Short circuit protection: When the output short circuit converter stops working, excluded automatically return to work after a short circuit;
2. The over-current protection: When the output current reaches the current value converter protection to stop working;
3. Overvoltage protection: When the output voltage is higher than the rating of the converter is stopped.

Technical Parameters:
  1. Input voltage: 40 ~ 120V
2. Input Current: <10A (full load)
3. Working Frequency: 250KHz
4. Output voltage: 13.0 ± 0.2V
5. Output current: 0 ~ 20A
6. Maximum power: 240W
7. Efficiency: 90% typ.
8. Voltage stability: <1%
9. Load stability: <1%
10. Insulation resistance: between input and output> 50MΩ
                        Between input and enclosure> 50MΩ
                        Between the output and the shell> 50MΩ
11. Weight: 0.25Kg
12. Start Delay: less than 2 seconds
13. Operating temperature: -30 ℃ ~ + 55 ℃
14. Size: 116 * 50 * 35MM

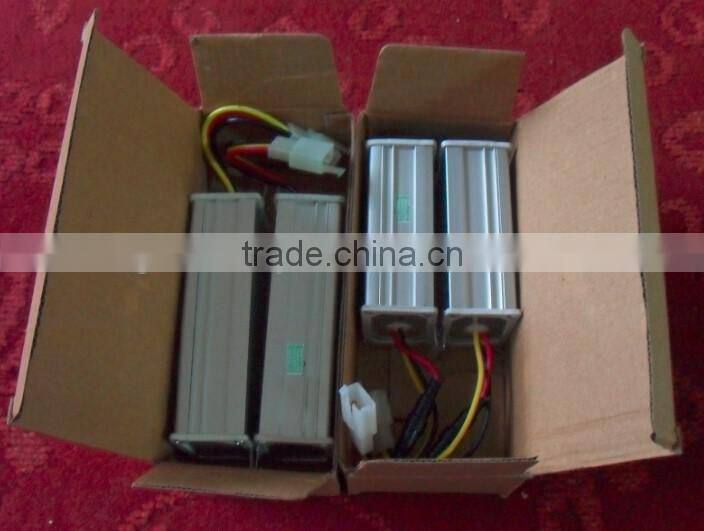

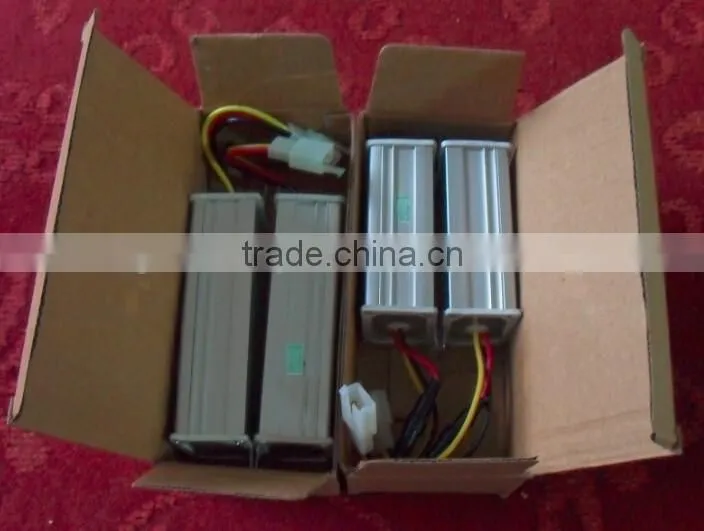

Packaging & Shipping
