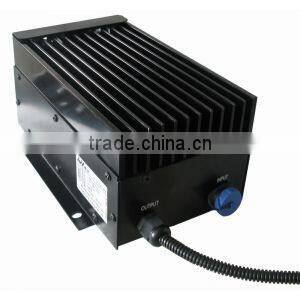

600w Waterproof Isolated DC-DC Converter for ev

Dezhou Greatway Import And Export Co., Ltd.
600w Waterproof Isolated DC-DC Converter for ev thumbnail-1
600w Waterproof Isolated DC-DC Converter for ev photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GW
Model Number:
ANHZ600W
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name GW
Model Number ANHZ600W
Output Power Other, 800w (MAX)
Output Type Single
Size 200*140*71mm
Weight 5.5kg
Input Voltage 48v 72v 96v 144v 168v 192v 220v
Output Voltage 12V 24V 48V or other
Type DC/DC Converters
Output Current 50a







Product Description

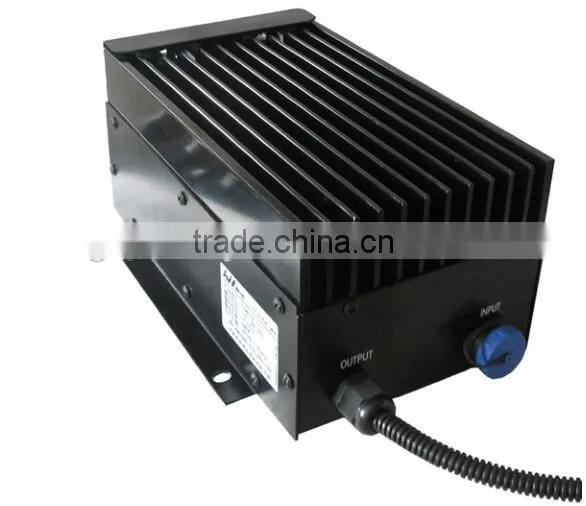

600w waterproof isolated DC-DC converter for ev















Summary

Our DC/DC power converter uses the full bridge soft switch technology, absorbs the domestic and foreign advanced control technology to design it it is a  utility product with strong practicability, complete functions, strong anti-interference ability, high output power and high reliability. It has the characteristics of light weight, small size, shock proof, anti salt spray, high efficiency, small interference, safety and reliability, etc..

 Main features:

1. Input and output is completely isolated, it is safe and reliable

2. The advanced current control mode and reliable circuit topology

3. The key parts are made of imported components, main technical index is much higher than the national standard

4. The protection function: overvoltage, undervoltage, overcurrent, overheating, short circuit, output reverse connection protection function

Environmental conditions

It is suitable for battery type: lithium iron phosphate battery and lead-acid battery

The altitude: less than 3000m

The storage temperature: -40 to 85 DEG C

The operating temperature: -30 to 65 DEG C

The humidity: 5% ~ 95%, no condensation

Design reference index:

The QTC413-2002 "automobile electrical equipment basic technical conditions"

The GBT24347-2009 " DCDC converter of electric vehicle"

Technical specifications

Input volt

48V

72V

96V

144v

168v

192v

220v

Input volt range

45-65v

50-100v

60-130v

90-190v

120-230v

150-260v

200-290v

Output volt

12V,24V,48V or other



Output power(W)

600W

Full load efficiency(%)

                        ≥ 90

Voltage accuracy(%)

1

1

1

1

1

1

1

current accuracy(%)

1

1

1

1

1

1

1

Control mode

Enable control: 12V enable, Vh is on, Vl is  off



Cooling mode



self cooling



Reverse loss current

20mA

Protection grade

IP65

Weight(kg)

5.5KG



600w waterproof isolated DC-DC converter for ev







600w waterproof isolated DC-DC converter for ev



Our Services

 600w waterproof isolated DC-DC converter for ev

Packaging & Shipping

 600w waterproof isolated DC-DC converter for ev

Company Information



our   company specialized in the manufacture and export of electric system products ,  including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator,hour tachometer ,air conditioning system,electric system solution .etc







 600w waterproof isolated DC-DC converter for ev

600w waterproof isolated DC-DC converter for ev
