720w 24v to 48v,15A Waterproof Boost dc to dc Power Converter

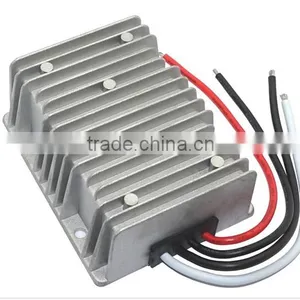

720w 24v to 48v,15A Waterproof Boost dc to dc Power Converter thumbnail-1
720w 24v to 48v,15A Waterproof Boost dc to dc Power Converter thumbnail-2
720w 24v to 48v,15A Waterproof Boost dc to dc Power Converter thumbnail-3

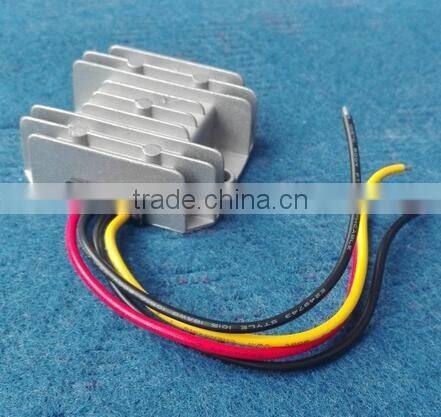

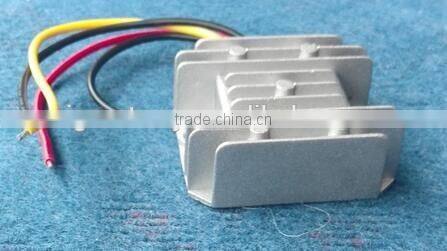

720w 24v to 48v,15A Waterproof Boost dc to dc Power Converter photo-1

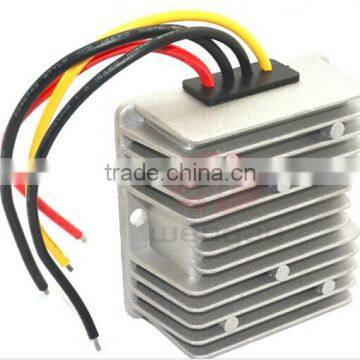

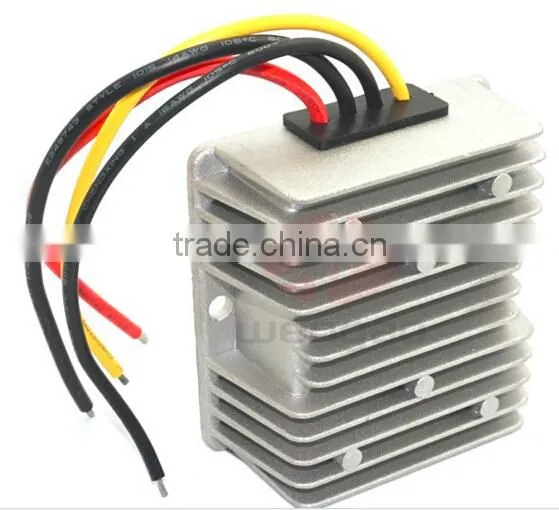

720w 24v to 48v,15A Waterproof Boost dc to dc Power Converter photo-2
720w 24v to 48v,15A Waterproof Boost dc to dc Power Converter photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GW
Model Number:
GW24S4815
Contact Supplier Request Quote Chat Now
Dezhou Greatway Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name GW
Model Number GW24S4815
Output Power Other, 720w
Output Type Single
Size 126*97*41mm
Weight 0.5kg
Input Voltage DC 20-35V
Output Voltage 48v-+5%
Type DC/DC Converters
Output Current 15A

720w 24v to 48v,15A waterproof boost dc to dc power converter



720w 24v to 48v,15A waterproof boost dc to dc power converter









Features:

1. 100% full power & stable current output

2. 100% Imported components

3. Wide input voltage from 30-35Vdc

4. Industry grade DC24V to DC48V step-down converter, high efficiency up to 95%

5. 100% waterproof & anti-shock protection, Ultra compact size, light weight

6. According: CE/RoHS, IP68 design

7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection

8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating

9. Non-Isolated Module,

Applications:

Trucks,Golf Carts,Forklifts,Buses,Loaders,Logging Vehicles,Wind Power System,Solar Power System,Electromotor,Telecommunications,Boat & Yacht,and so on...



Model

GW-24S4815

Input rated voltage

24V DC

Input voltage range

20-35V DC

Efficiency

>95%

Output voltage

48V DC

Output current

15Amps

Output rated power

720Watts

Output peak power

936W(130%)

Voltage regulation

< 1%

Load regulation

< 2%

Ripple (Full load test)

< 40mV

No-load current

< 20mA

No-load loss (Watt)

0.72 ~ 1.44

Working temperature

-35℃~ +80℃

Waterproof rating

IP68

Over-voltage protection

YES

Over-current protection

YES

Over-temperature protection

YES

Short-circuit protection

YES

Machine size

100*80*39mm

Package size

126*97*41mm

N. Weight

470g

G. Weight

500g

Heat dissipation method

Die-cast aluminum housing

Natural heat dissipation

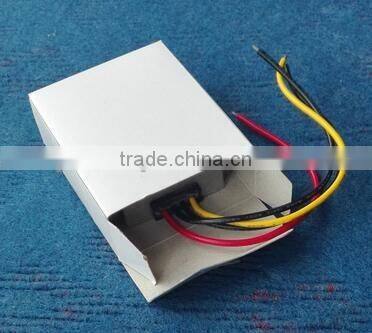

Packaging & Shipping

 720w 24v to 48v,15A waterproof boost dc to dc power converter720w 24v to 48v,15A waterproof boost dc to dc power converter



DC -DC Boost converter Spec. is as follows



12v to 24v,5A                               12V TO 48V,2A                       24V TO 48V,10A

12V to 24v,10A                            12V TO48 V,5A                       24V TO 48V,20A

12V to 24V,15A                            12V TO 48V,10A                24V TO 48V,30A

12V TO 24V,20A                           12V TO 36V 10A

12V TO 24V,25A                            12V TO 36A  5A

12V TO 24V,30A



Our Services

 720w 24v to 48v,15A waterproof boost dc to dc power converter

Company Information



our   company specialized in the manufacture and export of electric system products ,  including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator,hour tachometer ,air conditioning system,electric system solution .etc







720w 24v to 48v,15A waterproof boost dc to dc power converter

 720w 24v to 48v,15A waterproof boost dc to dc power converter
