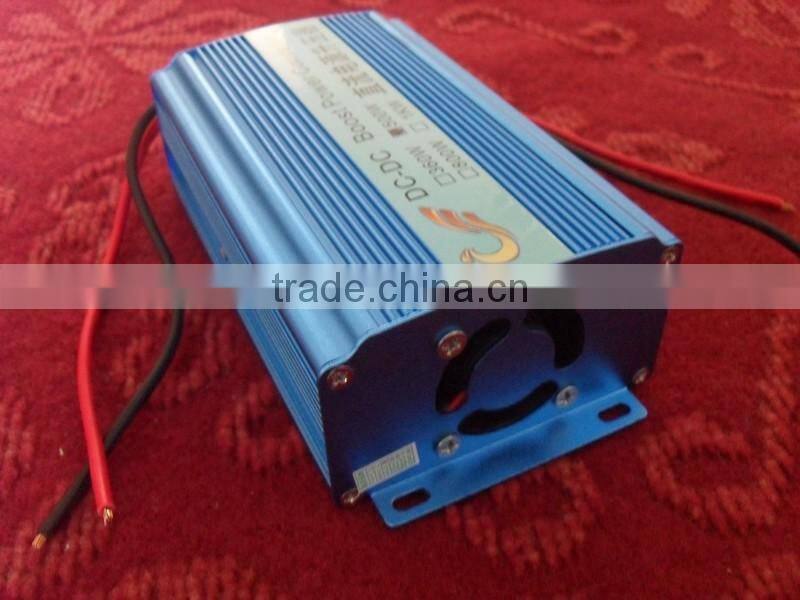

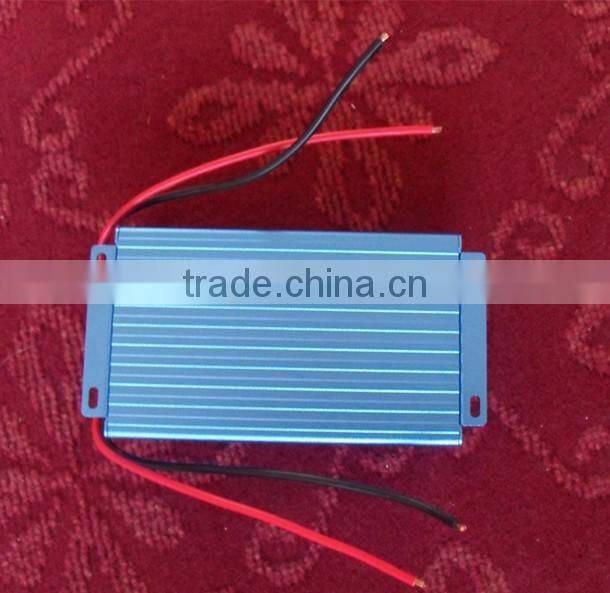

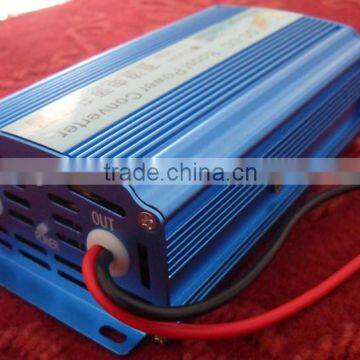

12v to 42v 12A Booster/step up DC-DC Power Converter 500W

12v to 42v 12A Booster/step up DC-DC Power Converter 500W thumbnail-1
12v to 42v 12A Booster/step up DC-DC Power Converter 500W thumbnail-2
12v to 42v 12A Booster/step up DC-DC Power Converter 500W thumbnail-3
12v to 42v 12A Booster/step up DC-DC Power Converter 500W thumbnail-4
12v to 42v 12A Booster/step up DC-DC Power Converter 500W thumbnail-5
12v to 42v 12A Booster/step up DC-DC Power Converter 500W photo-1
12v to 42v 12A Booster/step up DC-DC Power Converter 500W photo-2
12v to 42v 12A Booster/step up DC-DC Power Converter 500W photo-3
12v to 42v 12A Booster/step up DC-DC Power Converter 500W photo-4
12v to 42v 12A Booster/step up DC-DC Power Converter 500W photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GW
Model Number:
HE1242-12
Contact Supplier Request Quote Chat Now
Dezhou Greatway Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name GW
Model Number HE1242-12
Output Power Other, 500w
Output Type Single
Size 180*87*52mm
Weight 0.75kg
Input Voltage DC 10-16V
Output Voltage DC42±5%
Type DC/DC Converters
Output Current 12A







 12v to 42v 12A booster/step up DC-DC power converter 500W12v to 42v 12A booster/step up DC-DC power converter 500W12v to 42v 12A booster/step up DC-DC power converter 500W12v to 42v 12A booster/step up DC-DC power converter 500W

























12v to 42v 12A booster/step up DC-DC power converter 500W





 12V TO 56V DC booster, this product is a pulse width modulation (PWM) mode, non-isolated switching power supply, 12V input to 56V output boost, the use of imported high-power integrated switching regulator module as the core, can unstable 10-16V DC power conversion for a stable 56V DC power output. With high conversion efficiency, stable performance, input over-voltage, output over-current, over temperature, output short circuit protection function and resume normal operation after the fault is removed. Particularly suitable for lead-acid battery constant voltage lithium charge and the use of machinery and equipment.







The main performance parameters:



Input voltage: DC10V - DC16V



Output voltage: DC42V ± 5%



Output Current: 12A



Working temperature: -20 ℃ - + 55 ℃



Conversion efficiency:> 90%



Rated power: 500W



Peak power: 800W (MAX)



Quiescent Current: <100mA



Dimensions: Length 140MM, width 87MM, high 52MM



Requirements:



Working temperature: -10 ℃ ~ + 70 ℃



The input : 4.0mm2 cable



The output : 2.5mm2 Cable
