600w 12v to 36v,16a dc to dc Boost Power Converter

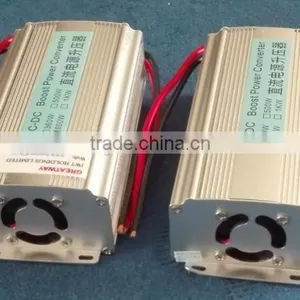

600w 12v to 36v,16a dc to dc Boost Power Converter thumbnail-1
600w 12v to 36v,16a dc to dc Boost Power Converter thumbnail-2

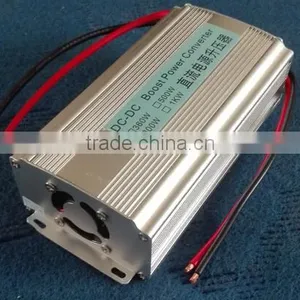

600w 12v to 36v,16a dc to dc Boost Power Converter thumbnail-3
600w 12v to 36v,16a dc to dc Boost Power Converter thumbnail-4
600w 12v to 36v,16a dc to dc Boost Power Converter photo-1

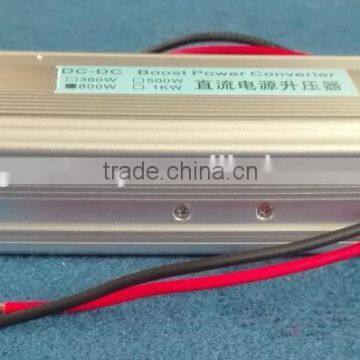

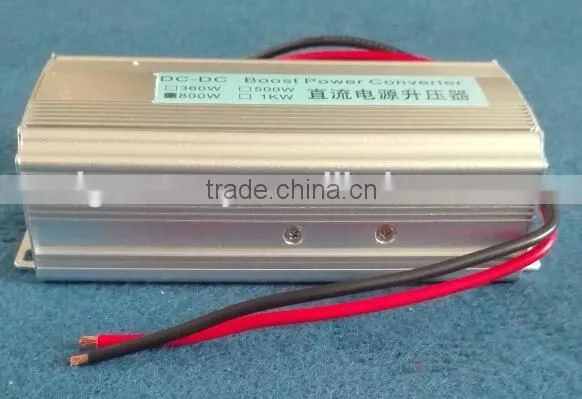

600w 12v to 36v,16a dc to dc Boost Power Converter photo-2

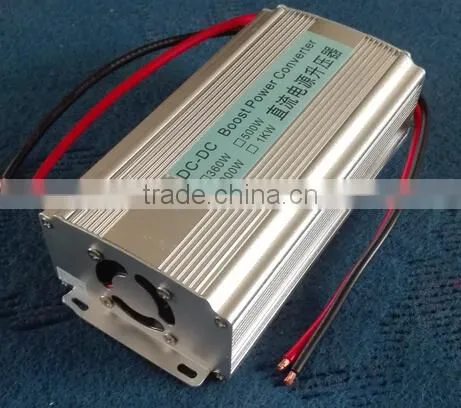

600w 12v to 36v,16a dc to dc Boost Power Converter photo-3

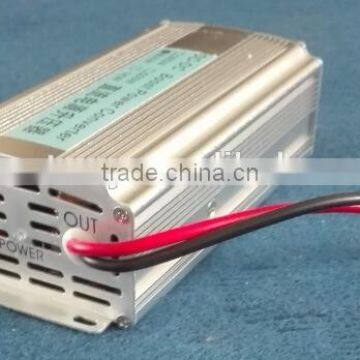

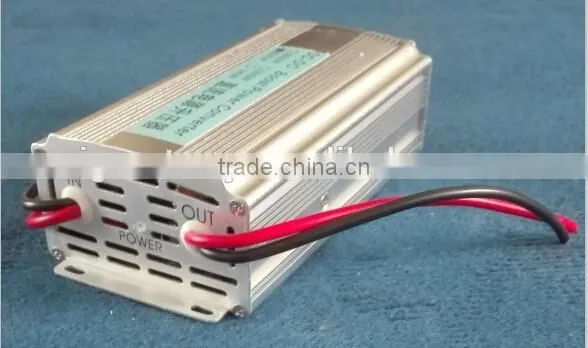

600w 12v to 36v,16a dc to dc Boost Power Converter photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GW
Model Number:
HE1236-16-600W
Contact Supplier Request Quote Chat Now
Dezhou Greatway Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name GW
Model Number HE1236-16-600W
Output Power Other, 600w
Output Type Single
Size 140*87*52
Weight 0.62kg
Input Voltage DC 10-16V
Output Voltage DC 36V,
Type DC/DC Converters
Output Current 16A









600w 12v to 36v,16a dc to dc boost power converter



600w 12v to 36v,16a dc to dc boost power converter





600w 12v to 36v,16a dc to dc boost power converter

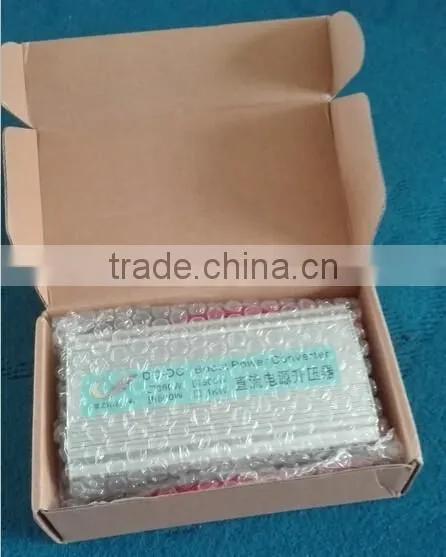

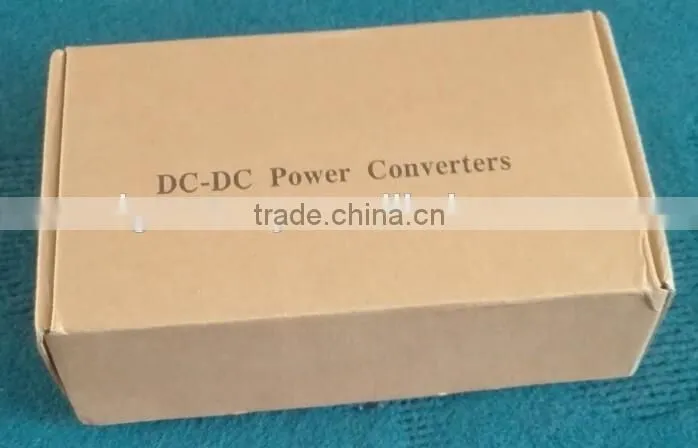

Packaging & Shipping

 600w 12v to 36v,16a dc to dc boost power converter600w 12v to 36v,16a dc to dc boost power converter



600w 12v to 36v,16a dc to dc boost power converter





Product Description



the converter is a using pulse width modulation (PWM), non isolation type switch stable voltage power supply, the input voltage 12V to 36V output, using imported high power integrated switching regulator module as the core, the unstable of 10 - 16V DC power converter for stable 36V DC power output. With high conversion efficiency, stable performance and other characteristics, input voltage, output current, over temperature, output short circuit and other automatic protection function, and the recovery of normal work after the fault elimination. Especially suitable for car audio, LCD TV, radio, monitoring system and mechanical equipment, etc..
Input voltage: DC10V - DC16V
Output voltage: DC36V ± 5%
Output Current: 16A
Working temperature: -20 ℃ - + 55 ℃
Conversion efficiency:> 90%
Rated power: 600W
Peak power: 850W (MAX)
Quiescent current: <100mA
Size: Length 160MM, width 87MM, 52MM high


Note: the installation of the positive / negative polarity, to avoid the output side of the short circuit (otherwise burn the fuse )
Use requirements:
Working environment temperature: -10 to +70
The input of the wire cross section is 2.5mm2
The output end of the wire cross section is 2.5mm2
Good ventilation converter must be installed in the car, no flammable substances, not water.
Input and output power polarity direction shall not be connected to the wrong, not arbitrarily large, small fuse.



 there are othere spec. of   12 TO 36V DC-DC as follows

   12 v to 36v,14a,500w



other similar products

DC -DC Boost converter Spec. is as follows



12v to 24v,5A                               12V TO 48V,2A                       24V TO 48V,10A

12V to 24v,10A                            12V TO48 V,5A                       24V TO 48V,20A

12V to 24V,15A                            12V TO 48V,10A                24V TO 48V,30A

12V TO 24V,20A                           12V TO 36V 10A

12V TO 24V,25A                            12V TO 36A  5A

12V TO 24V,30A



DC Boost Power Series



Product Description:This product is a pulse width modulation (PWM) mode, the non-isolated power supply, the input voltage is converted into a stable Output voltage, a high conversion

, stable performance characteristics, are widely used in the automotive industry ,

 new energy, industry and other fields.





The main parameters:





Parameter

   Model

B2405A

B2410A

B2420A

B1248

B2448

Input Voltage

10V-15V

10V-15V

11V-15V

11V-15V

22V-30V

Output Voltage

24±0.5V

24±0.5V

24V±1V

48V±1V

48V±1V

Output Current

5A

10A

20A

10A

10A

Peak power

150W

280W

750W

750W

750W

Quiescent Current

<30mA

<40mA

<120mA

<120mA

<120mA

Efficiency

>90%

>88%

>88%

>88%

>88%

Ambient temperature

-25°c-+55°c

-20—+55

-20—+55

-20—+55

-20—+55°c



Note:



1,Do not short the output, check the wiring is correct before power



Installation environment must be kept dry, keep the air circulating coolin





Company Information



our   company specialized in the manufacture and export of electric system products ,  including pure sine wave power inverter, motor controller,charger,DC-DC  converter,electronic throttle,battery discharge indicaitor ,hour merter & tach merter ,air conditioning systems,electric system solution .etc
