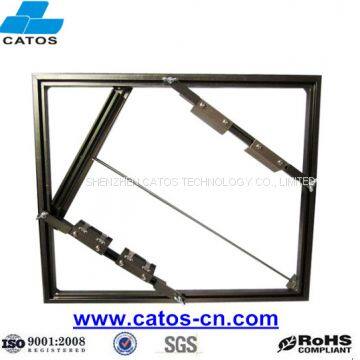

Help CenterUniversal Adjustable Wave Solder Pallets and Frames With Double Slot
Related Products
-
Universal Adjustable Wave Solder Pallets and Frames With Single SlotNegotiableMOQ: 0 Unit -
Conformal Coating Mask or Conformal Coating in PCBANegotiableMOQ: 0 Unit
-
Wave Soldering Pallets/Solder Masks for Through-hole Assembly With Top HatNegotiableMOQ: 0 Unit
-
Wave Soldering Pallets for Through-hole Assembly With Top HatNegotiableMOQ: 0 Unit
-
#16 Hold-downs Clamps for Pressing Components on Wave Solder PalletUS$ 0.1 - 0.3MOQ: 0 Unit
Specification
Material: Aluminum Alloy
Surface Treatment: Anodix Oxidation
Slot Type: Double Slots
Application: Wave Soldering Process
Description:
Universal wave solder pallets are designed to support a PCB that would otherwise be unable to be processed through wave soldering.
ESD composite single piece outer frame construction
Fully adjustable perimeter holddowns permit easy placement exactly where needed
Center bars easily adjust for PCB width.
Key Features
Run various PCB's with one fixture
Makes any PCB conveyor-friendly, regardless of shape or size
Provides additional PCB support through wave solder
Easily adjustable to accomodate any width printed circuit board
Perfect for prototyping or low volume applications.
Needed data for manufacturing
And we can design pallet for customers, if possible, please kindly advise me below information to design pallets as your requested...
1. )What is the width of your wave solder machine?
2. )What is the dimension of your largest PCB board?
3. )Your universal pallets request anodic oxidation or Teflon process?
Sincerely looking forward to cooperation with you at competitive price and reliable quality.
Product Show
