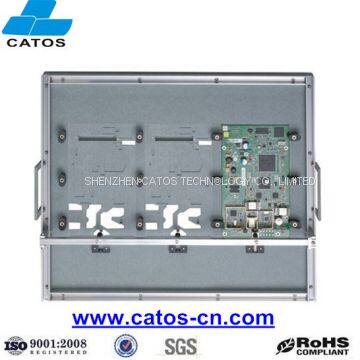

Wave Soldering Pallets for Through-hole assembly with top hat
- 3000 Unit / Units per Month
- SHENZHEN PORT
- T/T PayPal Other
- 3 days
- Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
- 3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
- Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
- 4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
- Factory Price Bakelite Decorative HPL Press plates bakelite sheet
- Black G10 Sheet - High Quality Carbon Fiber G10 FR4 Sheets - Precision-made PCB Materials
Product Details
Place of Origin: | China | Model Number: | CATOS wave solder pallet | Material: | Other, Fiberglass and epoxy resin mainly |
Type: | Insulation Sheet | Application: | High Temperature |
Product Description
Specification
Name: Solder pallets
Pallet Material: Grey( alternative )Durostone anti-static sheet
Description:
CATOS Engineering specializes in selective wave solder pallets. Designed by engineers with extensive wave solder experience, our pallets enable customers to automate the soldering of through-hole components on complex electronic assemblies.
Wave Soldering is a large-scale soldering process by which electronic components (pin-through-hole components) are soldered to a printed circuit board (PCB) to form an electronic assembly. CATOS's wave pallets or solder pallets are designed to overcome the most challenging situations. Each and every wave pallet or solder pallet is custom designed to meet your needs. Tell us your challenges - our experienced design staff has a proven solution for you.
Selective, Adjustable, and Rotating Fixtures, as well as Open Apertures
Key Features
1.Eliminate the need for expensive hand masking
2.Reduce costly defects and rejects
3.Accommodate multiple cards on same pallet
4.Improve throughput by quality and volume
5.Prevent warping
6.Allow standardization of conveyor width
7.Connector hold-down eliminates lifting or skewing
8.Wave pallets or solder pallets that work!
Application
Needed data for manufacturing
We can design pallet for customers, if possible, please kindly advise me below one information to design pallets as your requested.
a. CAD machined drawing or 3D drawings (such as STP, STEP, IGS, IGES etc.) of wave solder pallets
b. Gerber file of PCB board(Bare)+Sample PCBA Board(Loaded)
Sincerely looking forward to cooperation with you at competitive price and reliable quality.
