Help Center#65 Pusher Holddown Clamps for SMT Reflow Fixture Accessory
Product Spotlights
2.Hight temperature resistant.
3.Sold pallet hold down
4.Clamps for SMT fixture to hold PCBA
Related Products
-
#45 Clamps for SMT Reflow Accessory (L=25.3mm)US$ 0.1 - 0.3MOQ: 0 Unit -
#16 Hold-downs Clamps for Pressing Components on Wave Solder PalletUS$ 0.1 - 0.3MOQ: 0 Unit
-
#17 Hold-downs Clamps for Pressing Components on Wave Solder PalletUS$ 0.1 - 0.3MOQ: 0 Unit
-
#27 Hold-downs Clamps for Pressing Components on Wave Solder Pallet and Top HatUS$ 0.1 - 0.3MOQ: 0 Unit
-
#28 Holddowns Clamps for Pressing Components on Wave Solder Pallet and Cover PlateUS$ 0.1 - 0.3MOQ: 0 Unit
Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: CATOS-HD#65
1.Free samples
2.Hight temperature resistant.
3.Sold pallet hold down
4.Clamps for SMT fixture to hold PCBAUsage: Position and Fixed
Material: plastic and Stainless steel
Structure: SMT reflow clamp
Standard or Nonstandard: Standard
Product Parts: A set of 6 parts
A set include: 2 pcs plastic parts+2 pcs spring+2 pcs screw
Service: technical drawing is available
Sample: available for free
Certificate: FTS report
I.Features
1) .Designed specifically for use in SMT reflow solder operations
2) .Mostly made from plastic and Stainless steel
3).It is clamped on SMT fixture to hold PCBA.
II.Function and Application

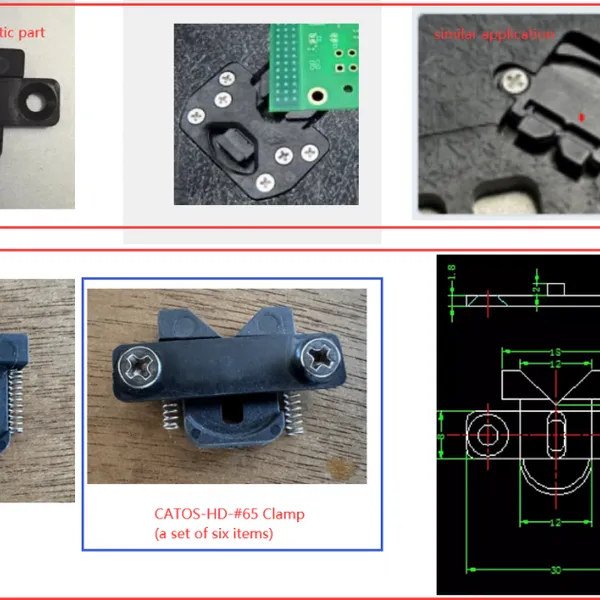

#65 is clamped on SMT fixture to hold PCBA
III.Structure
MATERIAL : |
Product Parts: A set of 6 parts |
TEMPERATURE RATING : |
(>280° C) |
DRAWING : |
Available for you
|
IV.Service:
1).Technical Drawing of #65 holddowns is available.
2).CATOS markets products for the PCB Assembly tooling industry such as fixings, hold downs and clamps for solder pallets / fixtures.
V.Package Process:
1).500pcs as a bag, with packed PE bag
2).Then put into 400mm x 300mm x 300mm paper carton
3).Finally,used PE protective film packed.
Warm Notes:clients'suggestion is welcomed.
Samples and Product technical drawing is available to you for free,your inquiry is welcome! Any questions please contact me,i will do my best to serve you
