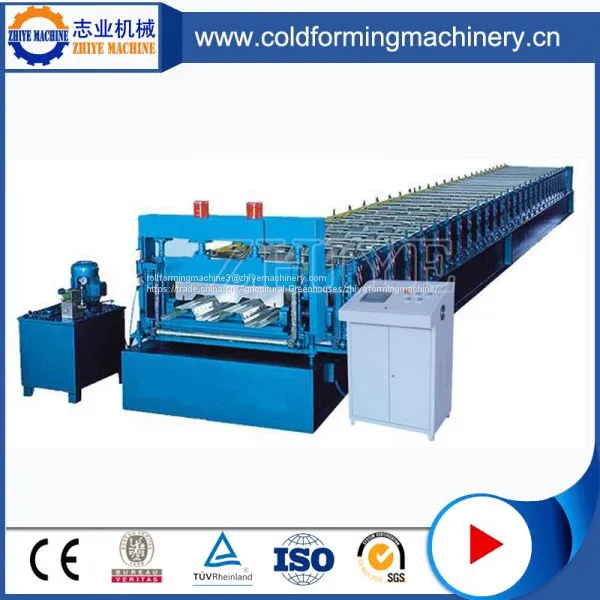

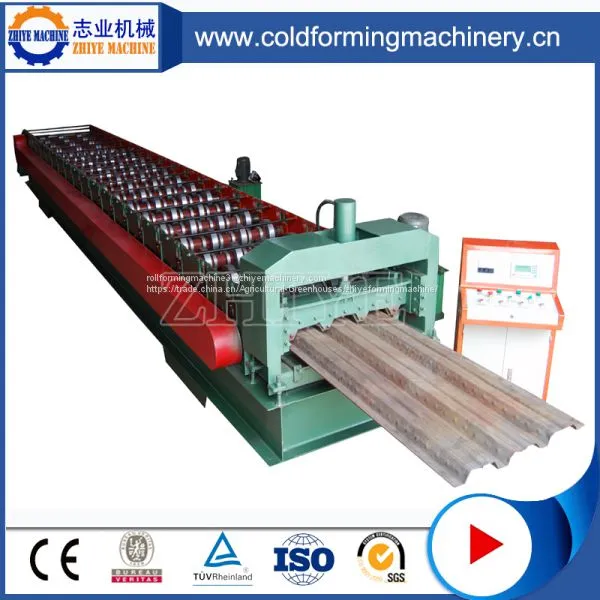

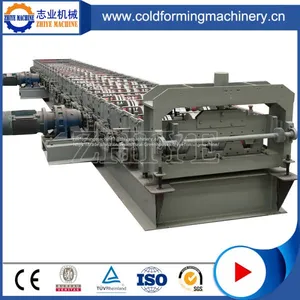

PLC Controlling Line Metal Deck Roof Cold Rolling Forming Line
Panels produced by this machine are mainly used as the floor decking inRussia. It has features of high wave, high strength, high degree automatically producing, lower cost and so on.
This panel is set up with concrete, which has good adhesiveness. This not only can save steel moulding plate, but also can decrease the load capacity of floor decking. Therefore, steel quantity of the whole project is decreased and can save money surely.
Equipment parts
Feeding platform
Automatic shearing system
Hydraulic system
Computer control system (imported computer)
High-precision automatic counter
Productivity: 10-18m/min, 3500 m2/8hs
Suitable process material: colored steel sheet, aluminium steel sheet, and galvanized steel sheet
D.Optional equipment:
Manual uncoiler frame in different tons
Hydraulic automatic uncoiler
E.Working space and workman for the equipment：
1. Ground-level land
2. ≥5T overhead travelling crane
3. Space for storing the material
4. Space for laying the machine
5. Road for vehicle moving
6. Workman: 2, operator and porter
Material of main equipment:
Roller material: high grade No.45 forged steel,plated hard chrome on the surface of roller with thickness 0.05mm
Active shaft material: high grade No.45 carbon wrought steel at diameter 70mm
Cutter blade:Cr12 mould steel with quenched treatment
Glazed tile stamping:Cr12 mould steel with quenched treatment,
Frequency converter
PLC:computer adopt PLC
Computer operating board adopt OP320A,China
Processing technique and deployment:
Uncoiler
Feeding platform
Molding core
Molding shearing mechanism
Hydraulic station
Computer control cabinet
Step-formed mechanism
Counter
Working flow:
Decoiling the sheet--sheet guiding---roll forming---measure length---glazed steel stamping--cutting ---the panel---panels to the supporter
Features of Roof Tile Product
The roofing tile products are formed by cold roll forming machine from high quality coated sheet, which performs the elegant style of traditional roof tile and suits for every architecture design. With light, strong strength and long lasting quality, it is convenient and takes short time for installation.
