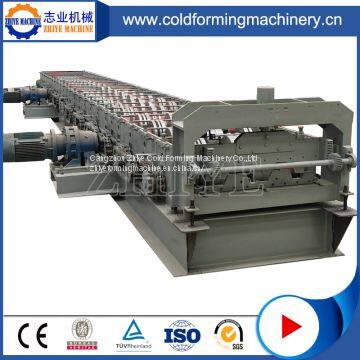

Help CenterNew Color Galvanized Steel Floor Decking Roll Forming Machine
Related Products
-
PLC Controlling Line Metal Deck Roof Cold Rolling Forming LineUS$ 9500 - 10500MOQ: 1 Set -
High Efficiency Line Metal Floor Deck Making MachineUS$ 18500 - 29500MOQ: 1 Set
-
High Efficiency Equipment Steel Deck Flooring Cold Rolling Forming LineUS$ 9500 - 10500MOQ: 1 Set
-
PLC Controlling Line Metal Deck Roof Cold Rolling Forming LineUS$ 9500 - 10500MOQ: 1 Set
-
PLC Controlling Machine Ppgi Decking Floor Panel Making MachineUS$ 18500 - 29500MOQ: 1 Set

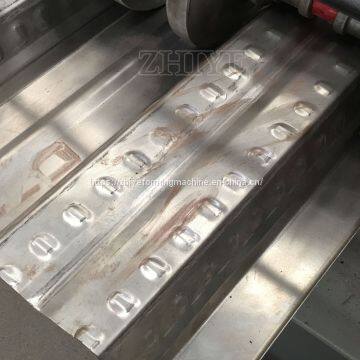

Panels produced by this machine are mainly used as the floor decking in Russia. It has features of high wave, high strength, high degree automatically producing, lower cost and so on.
This panel is set up with concrete, which has good adhesiveness. This not only can save steel moulding plate, but also can decrease the load capacity of floor decking. Therefore, steel quantity of the whole project is decreased and can save money surely.
Technical pararmeter of product line:
1.Suitable process material: colored steel sheet, aluminium steel sheet, and galvanized steel
2.Applied slab thickness:0.3-1.0mm
3 Charge in width:1000mm
4. Line speed:16m--18m/min
5. Rolling rows:16rows
6. Rolling diameter:70mm
7. Dimensions15M*1.9m*1.4m
8. Weight:5t
9. Power:11kw+4kw
10.Voltage: 380V 50HZ or at buyer's request
11. Material of Rollers: 45# steel, with hard chrome coated
12.Testing Material: Q195
13.Operation Model: Button + Touch Screen
Processing technique and deployment:
Uncoiler
Feeding platform
molding core

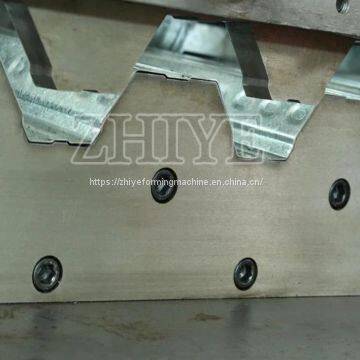

Molding shearing mechanism
Hydraulic station
Computer control cabinet
Counter
Optional equipment:
Manual uncoiler frame in different tons
Hydraulic automatic uncoiler
Working flow:
Decoiling the sheet--sheet guiding---roll forming---measure length---cutting the panel---panels to the supporter
Usage：This machine products used in high building contruction, it can save the steel panels and the floor loading weight in the same loading weight condition then save the investment cost.
