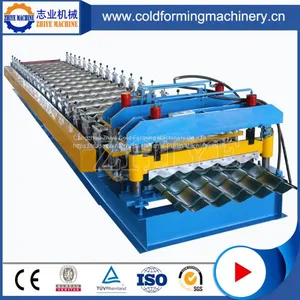

CE Standard Aluminium Glazed Tiles Making Manufacture Machine

CE Standard Aluminium Glazed Tiles Making Manufacture Machine

The Glazed tile produced by this kind of machine are looked beautiful, elegant and noble. It can be widely used in garden-style factory, traveling scenic spots, hotel, exhibition center, villa, civil construction and so on.

Features of this producing line:

lower cost

high efficiency

reliable working

low energy consumption

It consists of Manual Uncoiler , Feeding Table , Main Roll Forming Machine , Hydraulic System , Shearing Mechanism , Computer Control Cabinet .

1. Manual Uncoiler:

Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

Loading capacity: 5T

Inner diameter: 500-508mm

2. Feeding Table:

Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat. Parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

chargein width:1200mm Thickness of coil sheet:0.4---0.8mm

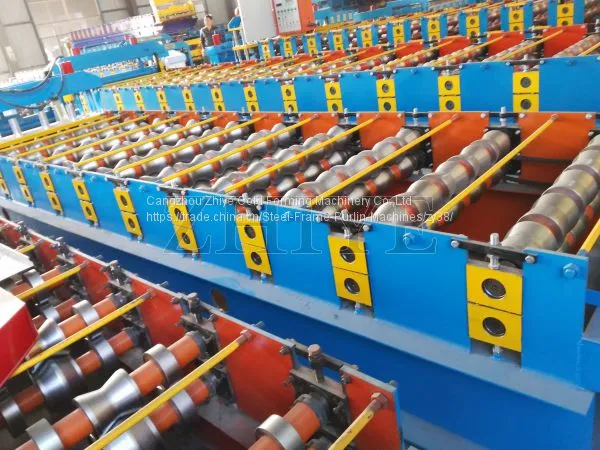

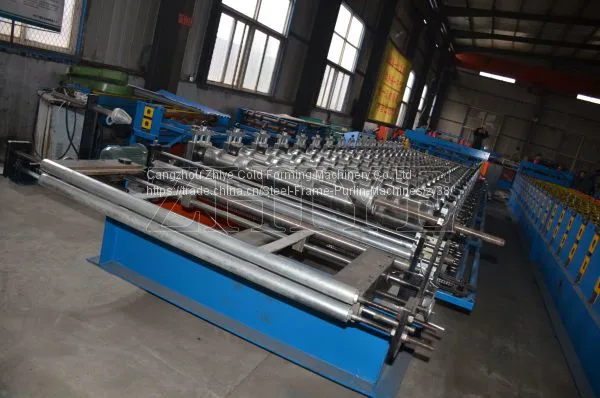

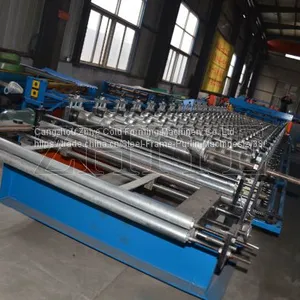

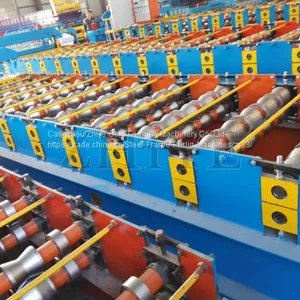

3. Main Roll Forming Machine:

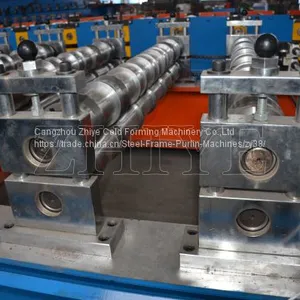

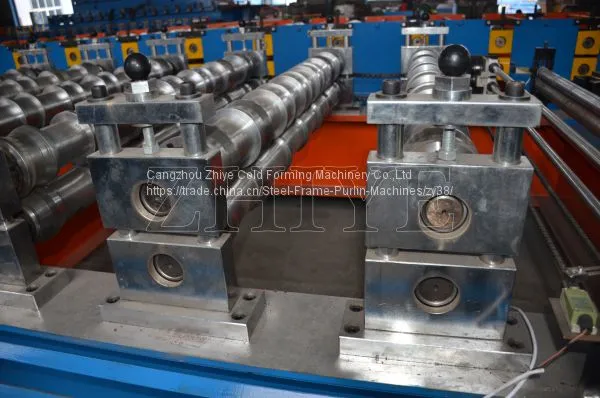

Material of rollers: 45# steel, roller surfaces polishing, hard plating. The polished surface and the heat treatment towards the molds also can keep the molding. Plate surface smooth and not easy to be marked when it is being stamped

Main motor power:4kw Forming speed:8--10m/min

4. Hydraulic System:

Hydraulic oil:40#. Hydraulic station power:3kw

Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

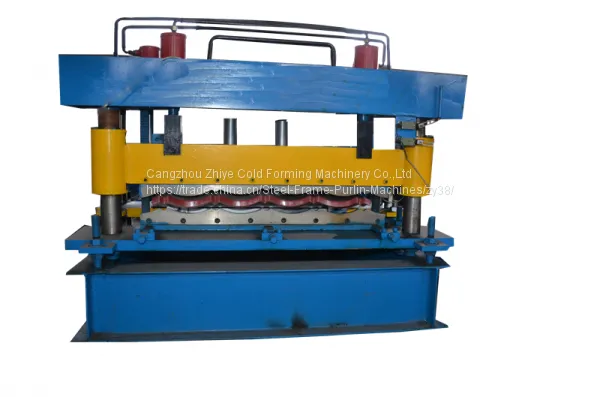

5. Shearing Mechanism: It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12, quenching treatment.

6. Computer Control Cabinet: The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use. PLC: EURA

Voltage:380V3 phase 50Hz or at buyers requirement

1,We have professional technicians for loading Guaranteed the goods load into container without any damage.

2,Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.

3,30 WORKING DAYS AFTER RECEIVED THE DEPOSIT

Our service:

We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician.But the buyer should take all the cost, including Visa, Roundtrip ticket,suitable accommodation and pay the service fee to the technician with $150/days

Company Certification

1，Q: Are you manufacturer?

A: Yes, we are manufacturer and trading company.

 2，Q: What kind of payment term you can do?

A: We are flexible about payment terms, please contact us for details.

 3，Q: What info you need before you make the proposal for a roll forming machine?

A: The profile drawings, material informations, your special requirements.

 4，Q: What I should do if I just start to know roll forming machinery?

A: Contact us immediately, we provide free consultant pre-sales service.

 5，Q: How to visit our company:

A: 1.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

   2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.

   3.Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
