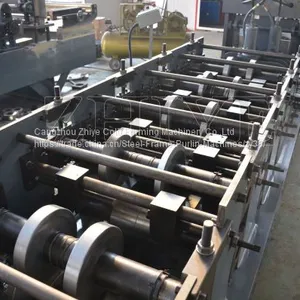

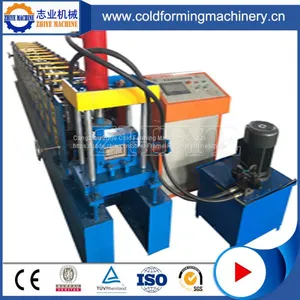

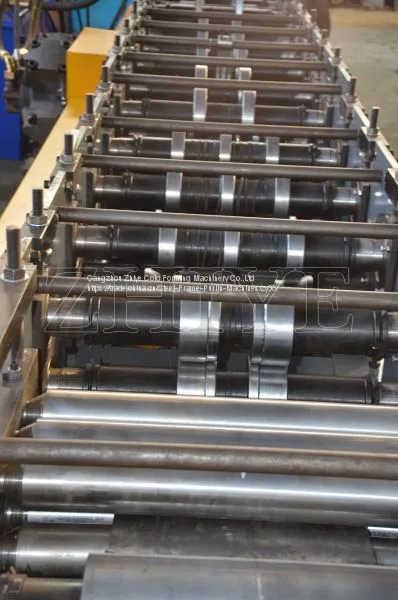

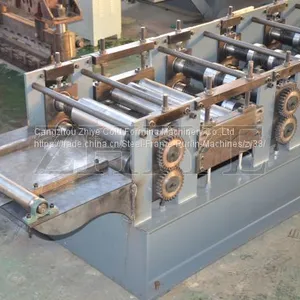

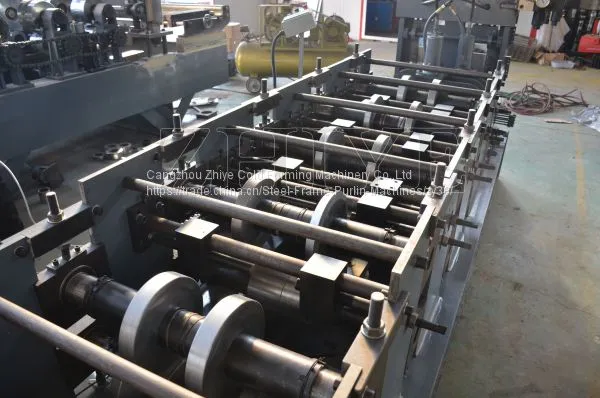

C-Purlin Forming Machinery
Abstract
C-shaped purlin is good in bending resistance, straightness, and it can cut, punch automatically, it is very easy and convenient to use. It can be used as bearing structure in big and medium sized building, such as factories, warehouses, garages, hangars, gyms, exhibitions, theater and so on.
Technical parameter of product line
A pplied plank stuff:color armor plate
Applied slab thickness:1.8mm-3.5mm
Line speed:16-18m/min

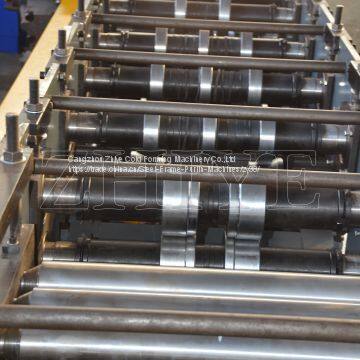

Roll diameter:80mm
Hydraulic automatic uncoile
Dimension:11.5m*1.9m*1.4m
Weight:5t
Power:4kw
Hydraulic station power:4kw
Processing flow:
decoiling----loading----molding----cutting----off-discharging
Equipment parts
steel strip supporting frame

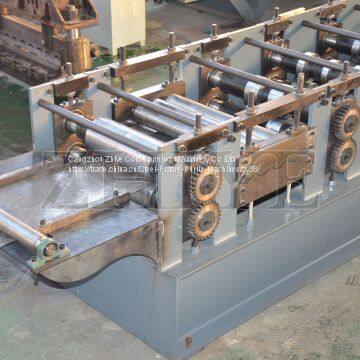

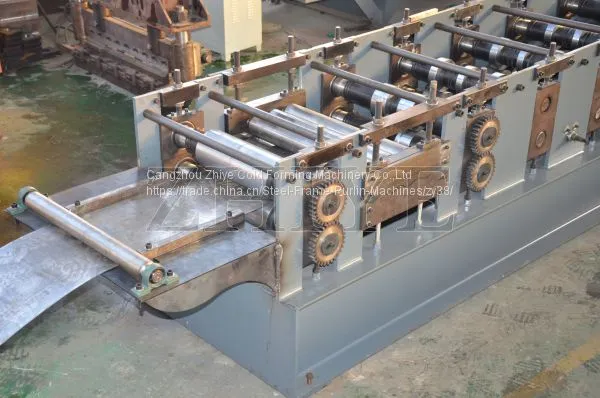

Feeding platform

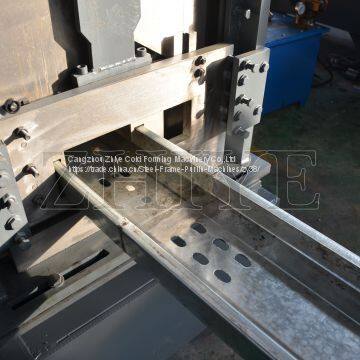

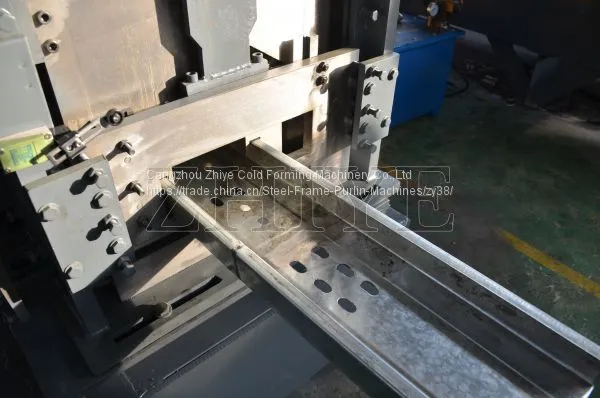

Automatic shearing system
Hydraulic system
Steel strip unfolding system
Computer control system (imported computer)
High-precision automatic counter
Receiving table
Optional equipment
Hydraulic automatic uncoiler
Working space and workman for the equipment：
1. Ground-level land
2. ≥5T overhead travelling crane
3. Space for storing the material
4. Space for laying the machine
5. Road for vehicle moving
6. Workman: 2, operator and porter
