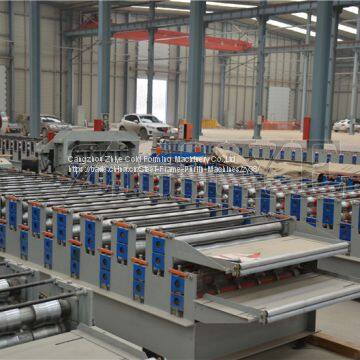

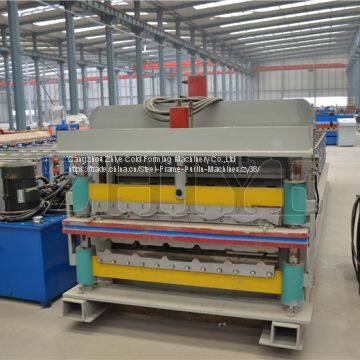

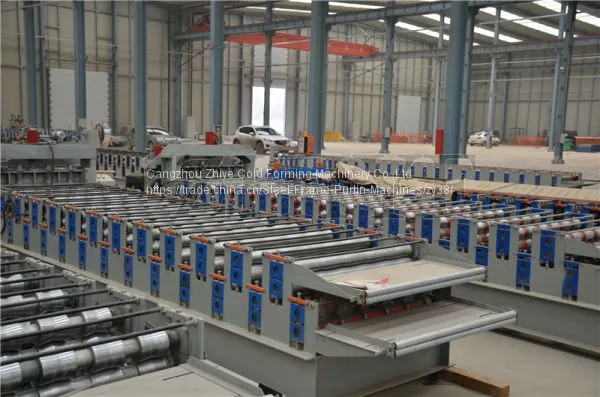

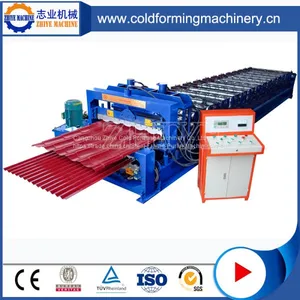

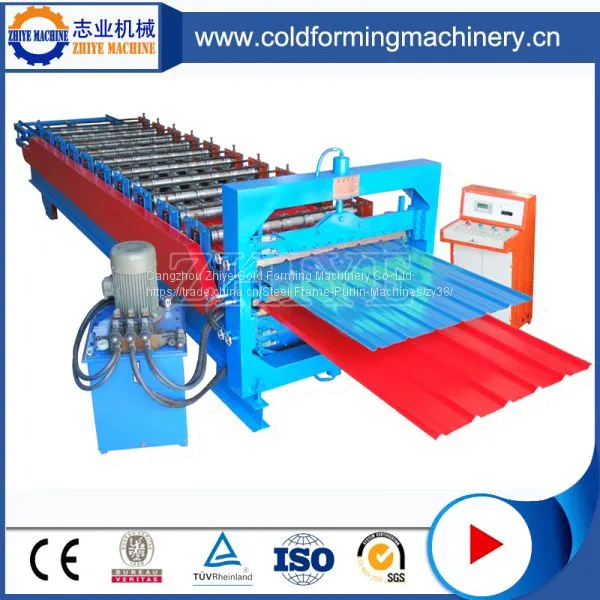

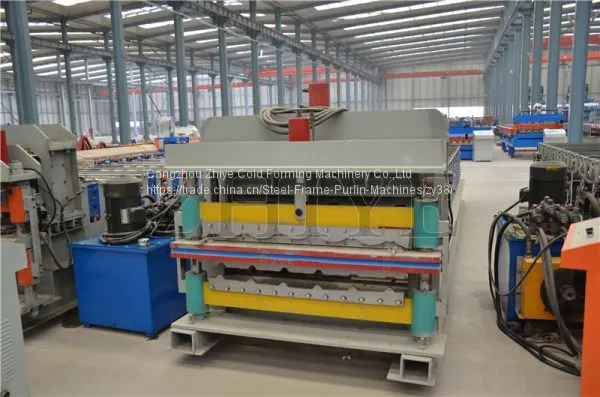

This machine is perfectly combined two different-model machines together, this can save the space and also is easy to operate. The two models are chose according to customers need.
The tiles produced by this machine are widely used in all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency and reliable working.
It consists of Manual Uncoiler , Feeding Table , Main Roll Forming Machine , Hydraulic System , Shearing Mechanism , Computer Control Cabinet .
1. Manual Uncoiler:
Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.
Loading capacity: 5T
Inner diameter: 500-508mm
2. Feeding Table:
Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat. Parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

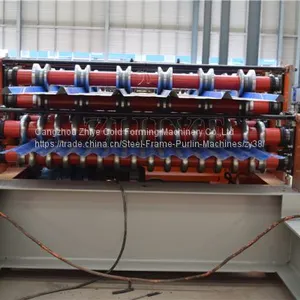

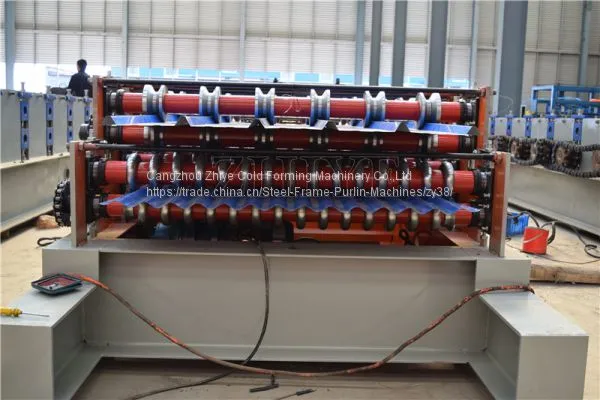

3. Main Roll Forming Machine:
Material of rollers: 45# steel, roller surfaces polishing, hard plating. The polished surface and the heat treatment towards the molds also can keep the molding. Plate surface smooth and not easy to be marked when it is being stamped
4. Hydraulic System:
Hydraulic oil:40#.
Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.
5. Shearing Mechanism: It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12, quenching treatment.
6. Computer Control Cabinet: The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use. PLC: EURA
