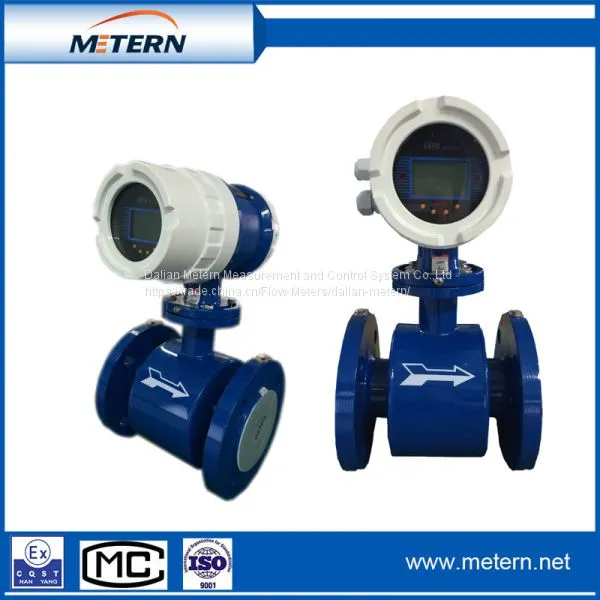

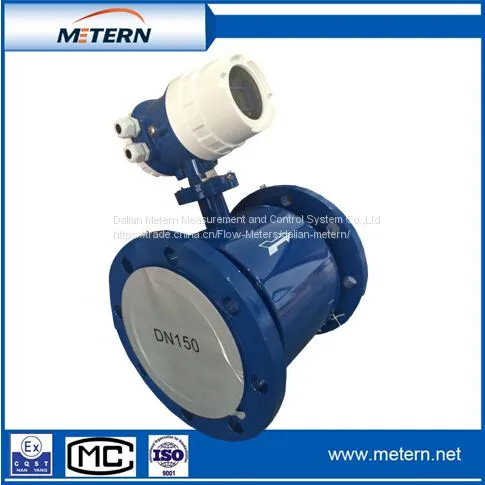

4-20ma +pulse sewage water electromagnetic flow meter
Product Overview

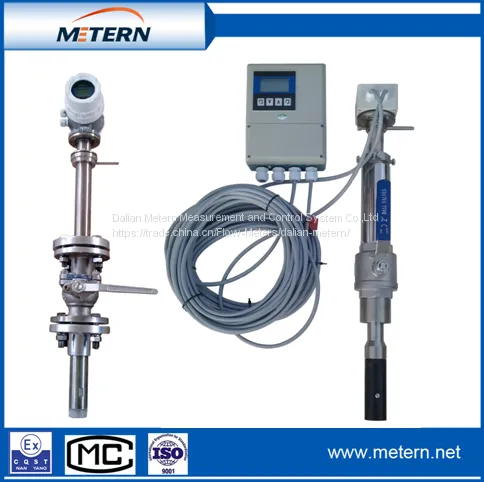

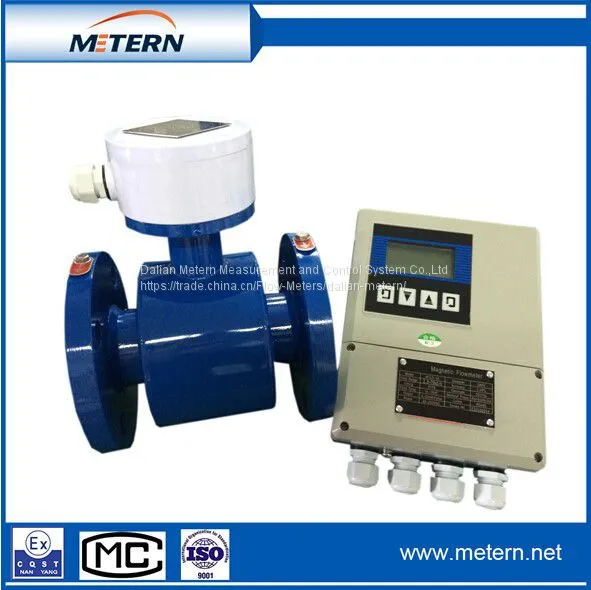

MTLD series electromagnetic flow meter is produced according to JB/T9248-1999 standard. The operation of electromagnetic flow meter is based on Faraday's Law. It is used for measuring the volume flow of electrically conductive liquid in the pipeline, such as water, seawater, sewage, slurry, pulp, acid, alkali, salt liquid food slurry etc. MTLD series are widely applied in petro, chemical, thermoelectricity, mining and metallurgy, coal industry, food industry, sewage treatment and other industries. Our electromagnetic flow meter has two types: Integrated type electromagnetic flow meter and Split type electromagnetic flow meter.
Features
| Accuracy | ±0.5% , ±0.1% |
| Medium temperature |
-20~60℃ (ordinary rubber lining) -20~90℃ (high-temperature rubber lining) -30~100℃ (PTFE lining) -30~160℃ (high-temperature PTFE lining) |
| Rated working pressure |
Pipeline: DN6~DN80:≤2.5Mpa; DN100~DN200:≤1.6Mpa; DN200~DN1000:≤1.0Mpa; DN1100~DN2200:≤0.6Mpa |
| Flow measurement range | Flow rate 0.1~15m/s, Measuring range:1:150 |
| Signal output | 4-20mA |
| Power supply | 24VDC/220VAC |
| Straight pipe lenght |
Pipeline: Upstream ≥5D; Downstream≥3D |
| Explosion-proof | EX dllBT4, EX dllCT6 |
| Ambient temperature | -25~60℃ |
| Relative humidity | 5%~95% |
Why Choose Us?
1. Product development and special customized ability for clients.
2. The independent intellectual property rights and the international certification authority.
3. We value every customer. Before delivery, we inspect the pens with our QC standard, so as to cont rol the attrition rate at the lowest.
4. As a professional manufacturer, we have a modern and developed production line to the prompt supp ly to every single client.
Contact us, 24hours / 7days online
Be founded in 1998.
Registered capital: USD 10 million
Building area: 30000m2
Established R&D of Coriolis mass flow meter since 2005
Started production and sales of Coriolis mass flow meter since 2008
Products are exported to Italy, Spain, Belgium, Brazil, Colombia, Malaysia, ect.
