Gas Liquid 4-20mA Metal Tube Mechanical Dispaly or Digital Rotameter

Dalian Metern Measurement And Control System Co.,Ltd
Gas Liquid 4-20mA Metal Tube Mechanical Dispaly or Digital Rotameter thumbnail-1
Gas Liquid 4-20mA Metal Tube Mechanical Dispaly or Digital Rotameter thumbnail-2
Gas Liquid 4-20mA Metal Tube Mechanical Dispaly or Digital Rotameter thumbnail-3
Gas Liquid 4-20mA Metal Tube Mechanical Dispaly or Digital Rotameter thumbnail-4
Gas Liquid 4-20mA Metal Tube Mechanical Dispaly or Digital Rotameter thumbnail-5

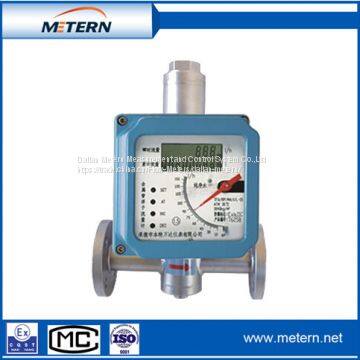

Gas Liquid 4-20mA Metal Tube Mechanical Dispaly or Digital Rotameter photo-1
Gas Liquid 4-20mA Metal Tube Mechanical Dispaly or Digital Rotameter photo-2

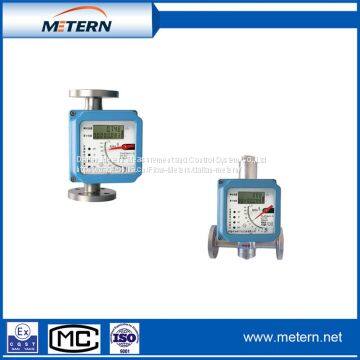

Gas Liquid 4-20mA Metal Tube Mechanical Dispaly or Digital Rotameter photo-3
Gas Liquid 4-20mA Metal Tube Mechanical Dispaly or Digital Rotameter photo-4

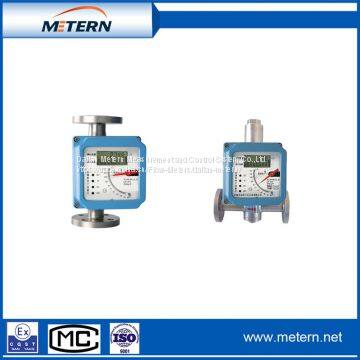

Gas Liquid 4-20mA Metal Tube Mechanical Dispaly or Digital Rotameter photo-5
US$ 170 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
METERN
Place of Origin:
China
Model Number:
MTFH
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Port
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name METERN
Place of Origin China
Model Number MTFH



Gas liquid 4-20mA metal tube mechanical dispaly or digital rotameter



UT8nB3lXalaXXcUQpbXF







Product Description

METERN Coriolis flowmeter, palm oil flow meter



 Features
  a Designed for measurement of small caliber and low-speed medium
  a With reliable performance, few maintenance and long service life
  a Low requirement for the straight tube section
  a Widely measure ratio: 10:1
  a Dual-line display, instantaneous/ cumulative flow rates displayed at the field
          with a keyboard on the indictor for convenient operation and setting
  a All in metal construction, designed for measuring corrosive medium of high temperature,                        high pressure and strong
  a Non-contact magnetic coupling transmission
  a Applicable for inflammable and explosive occasion
  a Optional charging modes: DC power supply or battery power
           with the functions of data recovery, data backup and power failure protection
  a Multiple parameters calibrating function

Product Details

 UT8n9olXcdbXXagOFbXa

Specification

Nominal sizeDN15, DN25, DN50, DN80, DN100, DN150
For other caliber dimensions, please negotiate with the manufacturer.
Flow rangeLiquid:1.0~150000l/h
Gas:0.05~3000m3/h
Measure Ratio 10:1, 20:1(special)
Accuracy1.5% , 1.0%
Pressure ratingDN15, DN25, DN50: 4.0MPa(Max: 20MPa)
DN80, DN100, DN150: 1.6MPa
DN80: Max 10MPa
DN100: Max  6.4MPa
DN150:Max 4.0MPa
Medium temperatureStandard: -30℃~+120℃, high temperature: 120℃~350℃
Power supply 24VDC(12~36VDC)
Output signal4~20mADC (two-wire); attached HART Protocol allowed
Output load 500Ω(24V power supply)
Ambient temperatureLocal type:-40℃~120℃
Remote type:-30℃~60℃
Storage requirementTemperature:-40℃~85℃ humidity: ≤85%
Connection typeStandard: Flange connection, GB/T9119-2000
For other connection type, please negotiate with manufacturer
Electrical  interfaceM20×1.5
Protection levelIP65
Ex-proofIntrinsic safety type: ExiaIICT6
flame-proof type: ExdIICT6l )
Viscosity of mediumDN15 :η<5mPa.s
DN25  :η<250mPa.s
DN50~DN150: η<300mPa.s
Wetted materialR1: 304,1Cr18Ni9Ti
Ro :316, 0Cr18Ni12Mo2Ti
RL:  316L, 00Cr17Ni14Mo2Ti;
Ti :Titanium alloy;
Rp: PTFE lining

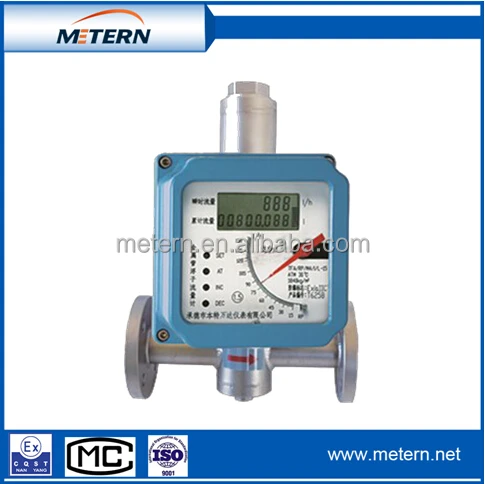

3

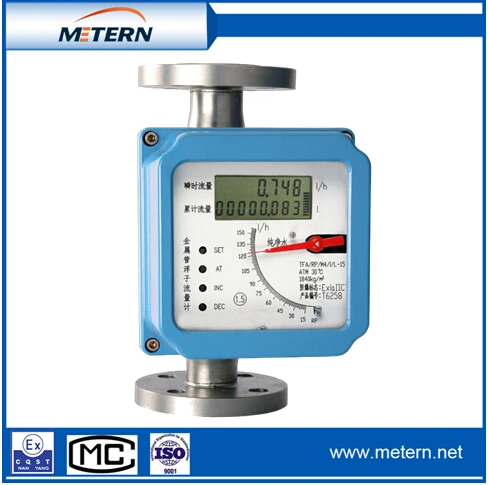

 Metal tube rotameter 2

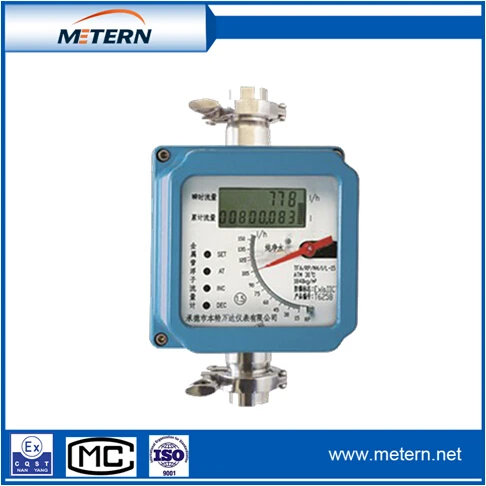

Metal tube rotameter 4

Certifications

Certificatecertificate 1

Packaging & Shipping

METERN Coriolis flowmeter, palm oil flow meter



METERN Coriolis flowmeter, palm oil flow meter



Exihibition

Exihibition

QQ20150201151059

Customers Visiting




Why Choose Us?

1. Product development and special customized ability for clients.

2. The independent intellectual property rights and the international certification authority.

3. We value every customer. Before delivery, we inspect the pens with our QC standard, so as to cont   rol the attrition rate at the lowest.





4. As a professional manufacturer, we have a modern and developed production line to the prompt supp   ly to every single client.

Company Information

 METERN Coriolis flowmeter, palm oil flow meter

Be founded in 1998.

Registered capital: USD 10 million

Building area: 30000m2

Established R&D of Coriolis mass flow meter since 2005

Started production and sales of Coriolis mass flow meter since 2008

Products are exported to Italy, Spain, Belgium, Brazil, Colombia,  Malaysia, ect.



METERN Coriolis flowmeter, palm oil flow meter



Dalian Metern Measurement and Control System Co.,Ltd

No.33 Quannan Street, Bonded ares, Dalian, Liaoning, China, 116600

Tel: +86-411-87966566
Fax: +86-411-87180679

Website: www.ur-brand.net www.ur-brand.net www.ur-brand.net http://www.metern.net





Our Services

Contact us, 24hours / 7days online


Product Tags: digital rotameter , metal tube rotameter , mechanical dispay rotameter
