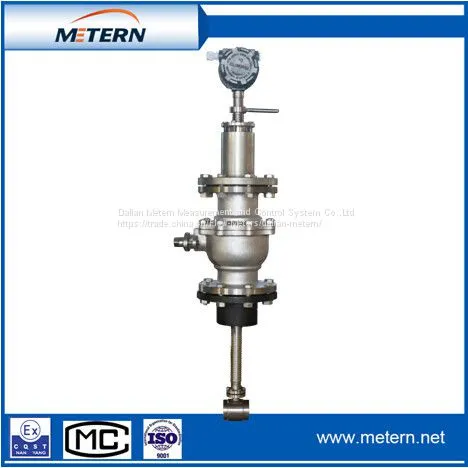

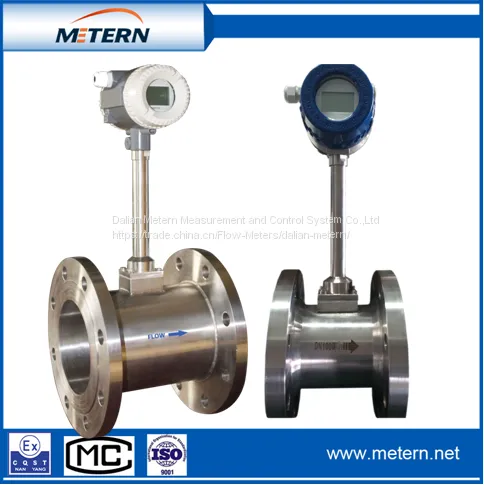

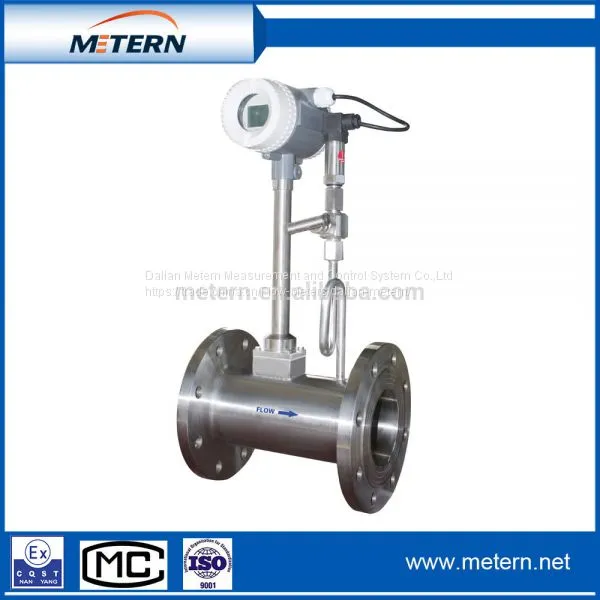

Air gas steam vortex flow meter
1. All welded, non-clog design provides maximum performance, reliability and enhanced safety by eliminating ports and gaskets. No seals, just steel.
2. Available with optional output. Internal temperature compensation provides cost-effective saturated steam mass flow measurement.
3. Adaptive Digital Signal Processing provides vibration immunity and flow range optimization.
4. Vortex extends the measurable flow range, reduces installation costs, and minimizes project risk.

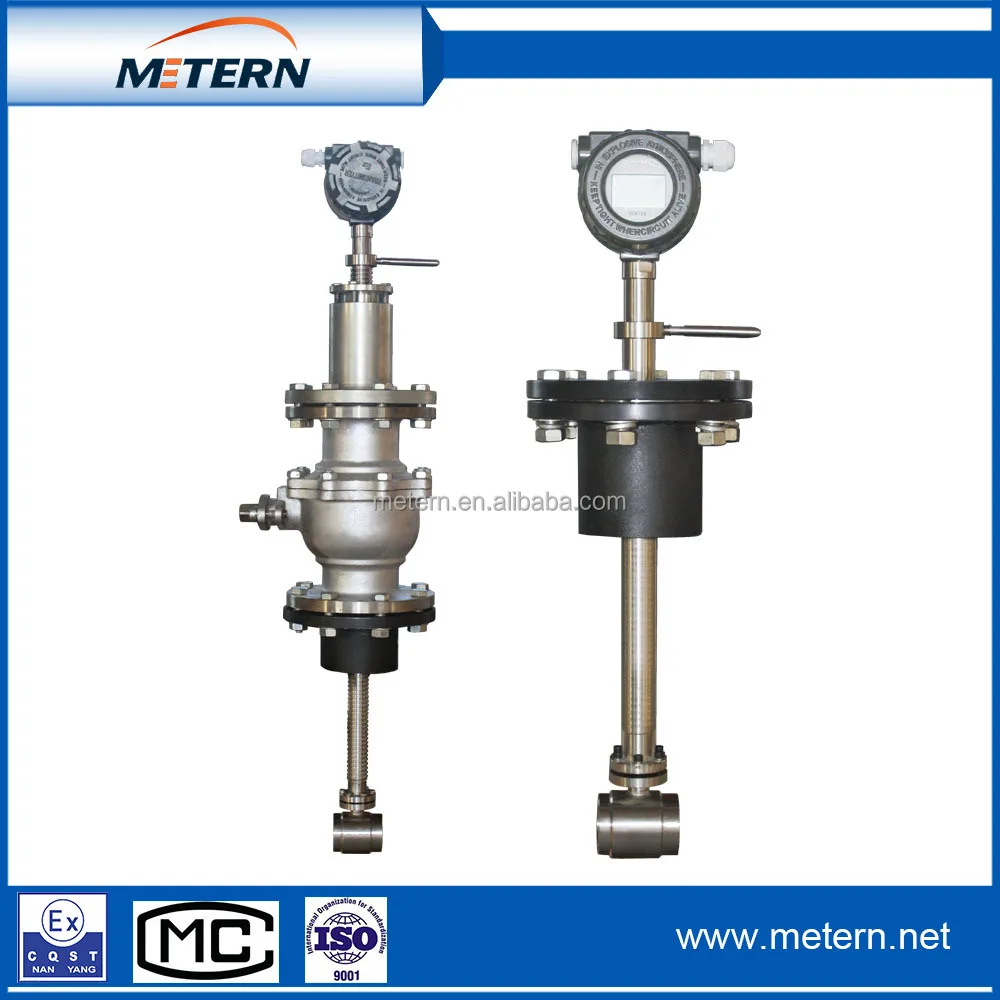

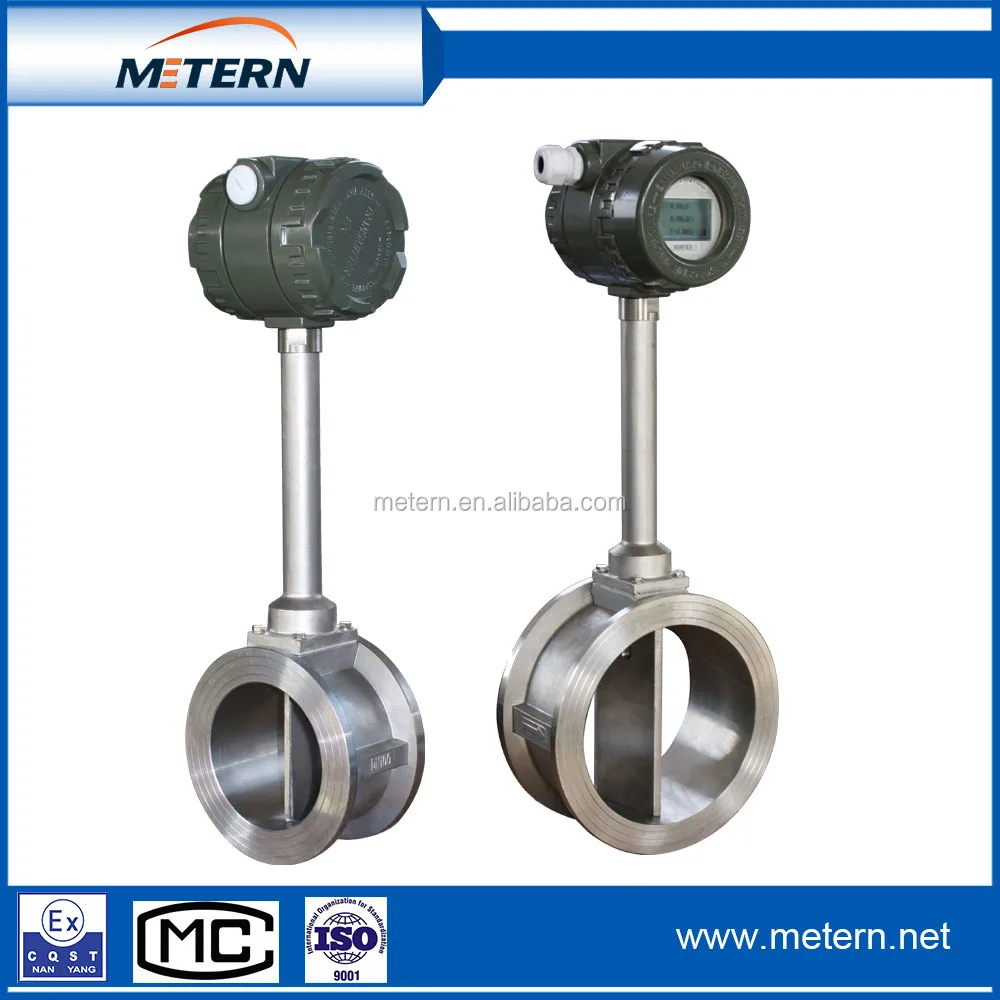

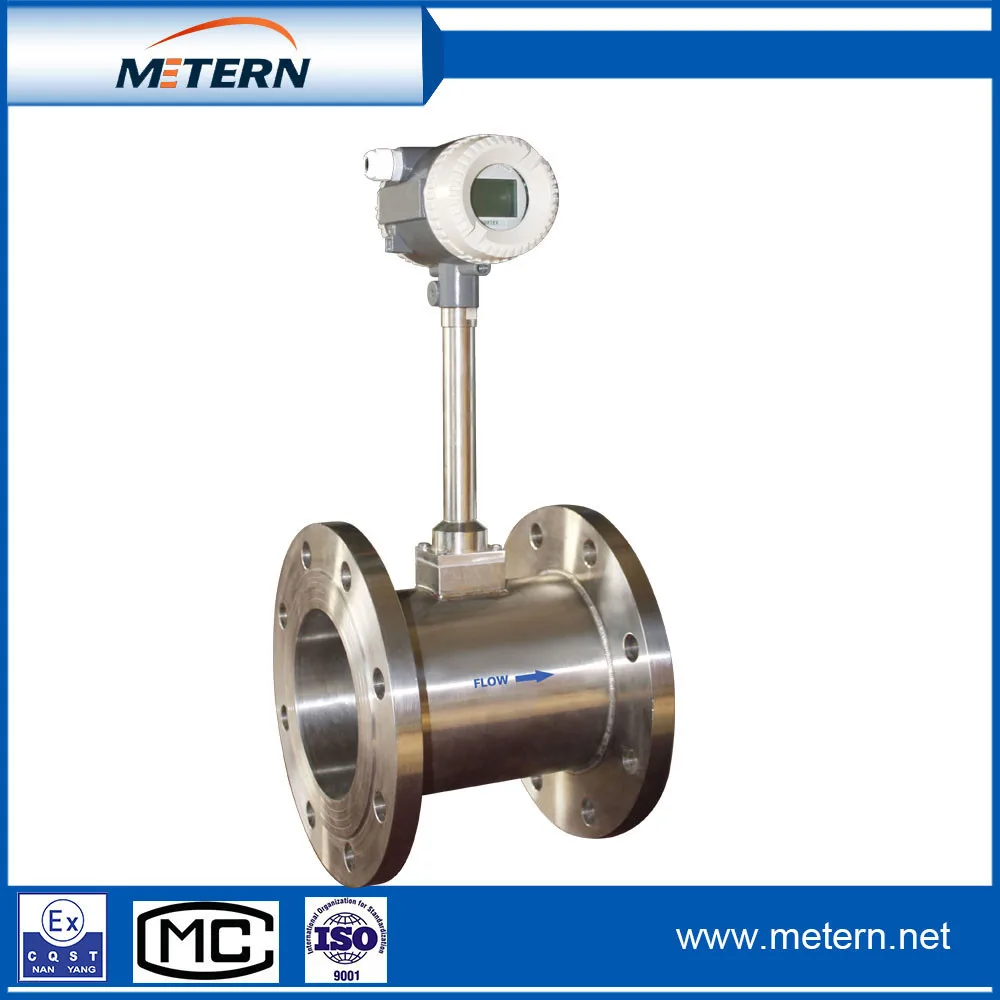

5. Available in wafer, flanged, and high pressure designs.
Technical Parameters
| Medium | Liquid, Gas, Steam |
| Nominal diameter | DN15..DN300 |
| Medium temperature | -50°C~500°C |
| Ambient Temperature | -30°C~60°C |
| Nominal pressure | 1.6Mpa,2.5Mpa,4.0Mpa(higher pressure can be customized) |
| Accuracy |
Liquid:1% Gas, Steam: 1.5% |
| Power supply |
Pulse output:12VDC, 24VDC 4-20mA: 24VDC Local display:built-in 3.6v lithium battery |
| Output signal |
Pulse frequency signal:0.1..3000HZ Two-wire 4-20mA RS485, HART |
| Signal transmitting distance |
Pulse≤500m 4-20mA≤1000m RS485≤1200m |
| Electrical interface | M20*1.5 or customize |
Flow Range
| Nominal diameter | Flow range( m3/h ) | ||
| Liquid | Gas | Steam | |
| 25 | 0.9-9 | 9.5-95 | 9.5-95 |
| 40 | 2.3-23 | 22-220 | 22-220 |
| 50 | 3.5-35 | 32-320 | 32-320 |
| 65 | 6-60 | 60-600 | 60-600 |
| 80 | 9-90 | 78-780 | 78-780 |
| 100 | 14-140 | 105-1050 | 105-1050 |
| 125 | 22-220 | 220-2200 | 220-2200 |
| 150 | 32-320 | 300-3000 | 300-3000 |
| 200 | 56-560 | 560-5600 | 560-5600 |
| 250 | 90-900 | 900-9000 | 900-9000 |
| 300 | 130-1300 | 1300-13000 | 1300-13000 |
Exihibition
Be founded in 1998.
Registered capital: USD 10 million
Building area: 30000m2
Established R&D of Coriolis mass flow meter since 2005
Started production and sales of Coriolis mass flow meter since 2008
Products are exported to Italy, Spain, Belgium, Brazil, Colombia, Malaysia, ect.
Dalian Metern Measurement and Control System Co.,Ltd
No.33 Quannan Street, Bonded ares, Dalian, Liaoning, China, 116600
Tel: +86-411-87966566
Fax: +86-411-87180679
Website:
