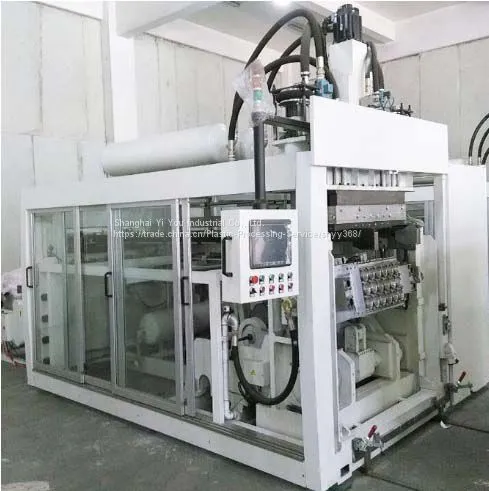

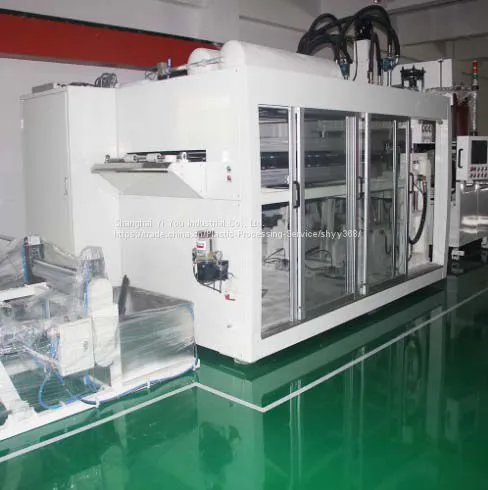

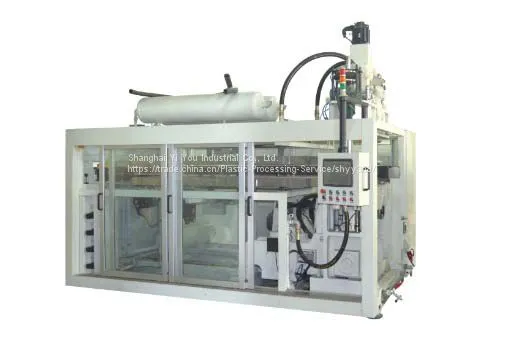

Full Automatic Cups and Bowls Thermoforming Machine From Shanghai YiYou

full automatic cups and bowls thermoforming machine from Shanghai YiYou

  Fully automatic tilting mould cups and bowls thermoforming

machine series:

l This machine is controlled by PLC and the touch screen.

l In the sheet sending device and tensile device using servo motor.

l This machine is fully automatic and it can help plastic products manufacturer to save manpower and reduce the production cost.

l This machine is very quickly and suitable for advanced production line.

l This machine has mould memory function.

Apply to PVC, PET, PP, PS, HIPS, PLA plastic sheet forming, such as the production of various kinds of cup, bowl, dish, cover, box products such as: milk cup, jelly cup, disposable drink cup, Bowl of instant noodles. The production process is the plastic sheet by heating to a certain temperature, with positive pressure forming, and then by the turn-over device send to cup stacking , counting, and tidy sending out.

Model:                               HW-700

Suitable material:                   PP、PS、PE、PVC

Max. Forming area:                   700×350

Max. Forming depth:                  160

Suitable sheet’s thickness:         0.3～2.0

Max. Production speed:               28

Power of feeding servo motor:        5

Main motor power:                    11

Power of servo tensile motor:        11

Power of whole machine heating:      120

Air consumption:                     ≥2500

Water consumption:                  50～100

Overall dimensions（mm）:           14000×3500×3300
