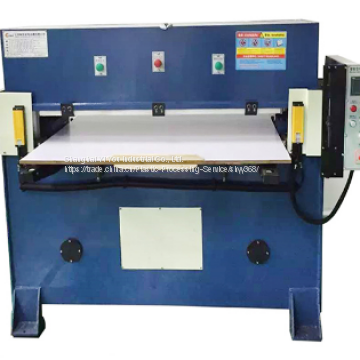

30 Tons of Hydraulic Cutting Machine From Shanghai YiYou

30 Tons of Hydraulic Cutting Machine from Shanghai YiYou

Hydraulic cutting machine

Application:

The machine is suitable for forming die cutter for leather, plastic, nylon cloth, paper, cotton and synthetic fiber, forming cutting operation of non-metallic materials, particularly applicable to a wide material layer or multilayer cutting blanking.

Main features:

l All the sliding parts of this machine by the hydraulic system for oil lubrication, reducing wear and prolong the service life of the machine.

l Automatic slow cutting when quick clamp down on knife mold cutting, cutting no size error between the ground floor.

l The machine structure changes when the design for the users no worry about possible oil leakage of the machine.

l Due to the motor and pump extraposition, good ventilating and cooling conditions, safety operation, long service life.

l The setting of the knife mold is rapid, accurate and easy to learn.

l Small motor power, low energy consumption.

Main Technical Parameters:

Mode: HW-30T,HW-35T,HW-50T,HW-60T,Unilateral automatic feed,HW-80T Bilateral       automatic feed,HW-100T Bilateral automatic feed

Maximum cutting force: 300KN,350KN,500KN,600KN,800KN,1000KN

Distance between upper press plate and workbench: 50-160mm,50-160mm,55-                                                  180mm,50-200mm,50-200mm,50-                                                  200mm

Area of workbench: 500×1600mm 500×1250mm,610×1600mm 610×1250mm

                   710×1600mm 710×1250mm,800×1600mm 900×1250mm

                   800×1600mm 800×1250mm,900×1600mm 900×1250mm

Main motor power: 2.2kw,2.2kw,3kw,5.5kw,7.5kw,11kw

Hydraulic pressure oil mass: 150L,180L,200L,220L,320L,330L
