Breakfast Cereals (Corn Flakes) Production Line
Introduction
We are professional manufacturer of food machinery. We have many years experience in this industry. Our machine has been exported many countries,like Russia,German,Ukraine,South Africa, they have obtained much praise for their reliability and full automatic from our clients.Corn flakes can be flavored with sugar,honey,coco and cheese,etc.Corn flakes are a popular breakfast cereal manufactured by twin-screw extruder through the treatment of corn flakes of grain, served with milk and marshmallows, were a very popular food among the families.
Technical parameter of the corn flakes production line
| Model | CY65-II Double-screw extruder line | CY85-II Double-screw extruder line |
| Installed capacity | 100KW | 180KW |
| Power consumption | 70KW | 140KW |
| Output | 120-150kg/h | 300-400kg/h |
| Size | 28.0*1.2*2.0m | 30.0*1.5*2.0m |
Introduction of machine
| Machine | Motor Power | Capacity | Dimension | Quantity | Function |
Mixer |
4KW | 50kgs /once time | 0.8*0.7*1.5m | 1set | To mix the raw materals with the water |
| Screw conveyer | 1.1KW | 100-150kg/h | 3.0*0.8*2m | 1set | To send the materials to the extruder |
| CY65-III Double screw extruder |
30KW
|
120-150kg/h | 4.0*1.2*3.0 m | 1set | To extrude and inflate the food.the main machine of the line |
| Shifter | 0.55KW | 2.0m length | 3sets | To cool and sifting the corn flakes | |
| Air conveyer | 1.5KW | 4.1m length | 4sets | To connectn two machines |
|
| Single roller | 0.37kw | 2.1*0.7*1.6m | 1set | To cool the corn flakes, avoid tostick together | |
| The flaking machine | 5.5kw | 150kg/h | 1.8*1.1*1.2m | 1set | To flake the corn pellets into corn flakes |

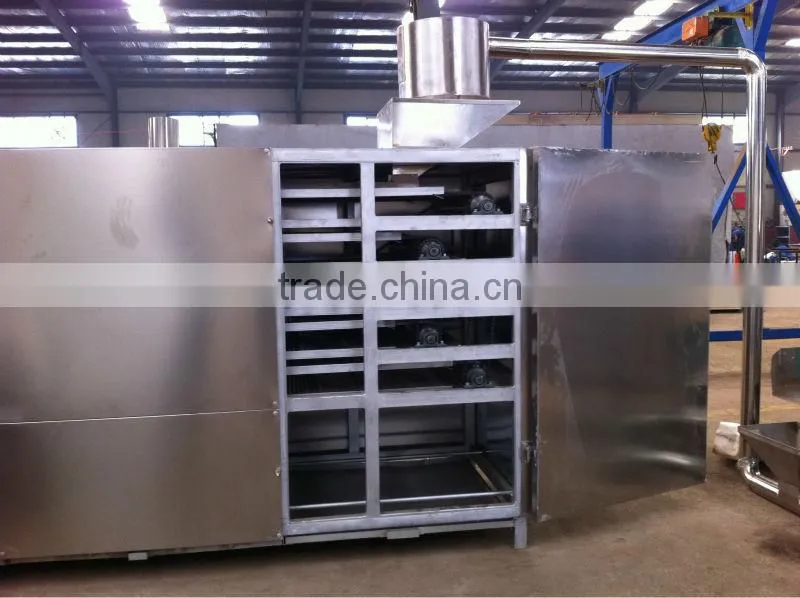

| 5layers 5meter oven | 150-300kg/h | 6.0*1.4*2.0m | 1set | To dry the corn flakes | |
| High-temperature oven | 100-150kg/h | 3.0*1.5*1.5m | 1set | To inflate the corn flakes | |
| Sugar coating drum | 0.55kw | 150kg/h | 2.1*1.1*1.9m | 1set | To flavor the corn flakes |
| 5layers 5meters oven with hoister | 150-300kg/h | 9.0*1.4*2.0m | 1set | To dry the corn flakes | |
| Cooling machine | 1.2kw | 150-300kg/h | 6m lenth | 1set | To cool the corn flakes |
If you for more productions,please click the address

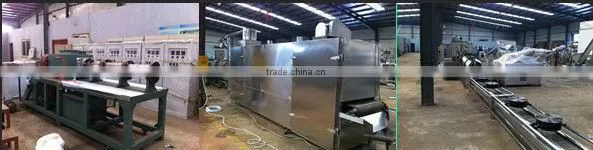

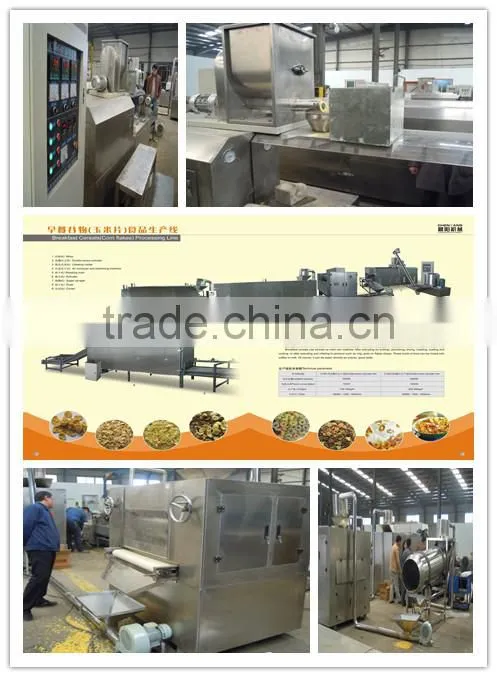

Machine show:
About installation and after-sale service system:
1. We can provide factory layout according to customer’s factory size in advance.
2. When we received your deposit of this order, we will ask our engineers to prepare to apply the visa, when the corn flakes processing line arrived your country, and we will send two engineers to go and help you to install the corn flakes line, teach your worker(3-4 workers) how to operate the corn flakes line, until your worker know the corn flakes line well.
3. Our engineers has responsibility to teach your worker how to clean the extruder, how to change the screw, how to change barrel etc. and we have responsibility to provide technology support with you forever.
4. Our engineers can provide basic formula for producing the corn flakes, breakfast cereals, snack food etc. and help customer to produce good quality food according customer’s detailed formula.
5. We provide the spare parts will at preferential price for an extended long time.
FAQ:
