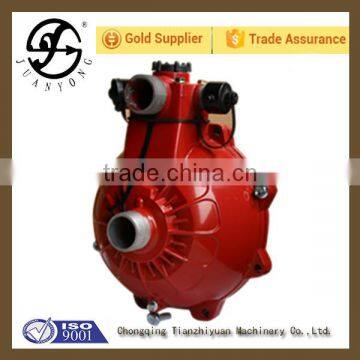

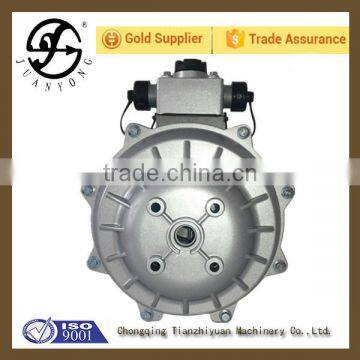

Single-stage Pump Structure and Pumping water Application WATER PUMP 6.5HP COPPER/ALU WIRE
*Because of the high pressure and flow rate,it is a most suitable pump for sprinkling,first fire
fighting and other users,which require high delivery pressures.
*Of all the high pressure engine pumps of this class,it ensures the highest lift and is a must
for sprinklers or for water delivery to high and distant places.

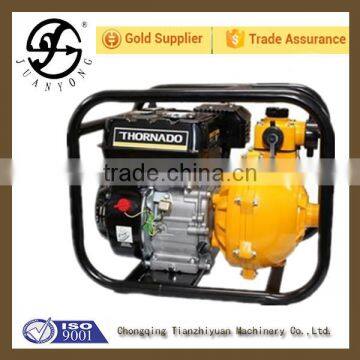

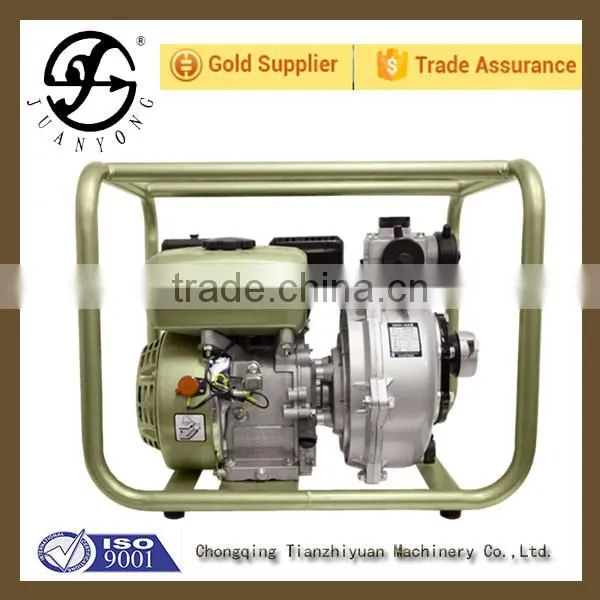

*The entire unit is protected by a sturdy rollover pipe frame.

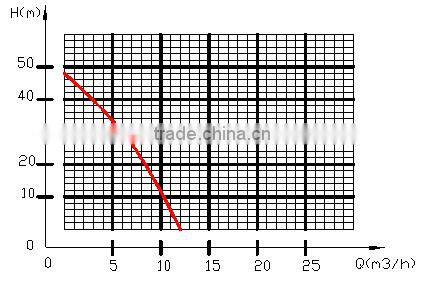

Performance curve
Parameter
ITEM | HP40A |
Outlet Size(mm) | 40 |
Inlet Size(mm) | 40 |
Speed(rpm) | 3600 |
Displacement Q.max(m3/h) | 12 |
Lift H.max(m) | 50 |
Suction(m) | 7 |
Engine Model | 168F |
*Water irrigation by sprinkling.
*Irrigation of rice field.
*Orchard cultivation.
*Pumping of well water .
*Feeding water into water reservoir.
*Feeding or draining water from fish pond.
*Feeding or draining water from fish farm.
*Washing cattle or barn.
*Washing agricultural tools.
*Use for fire fighting.

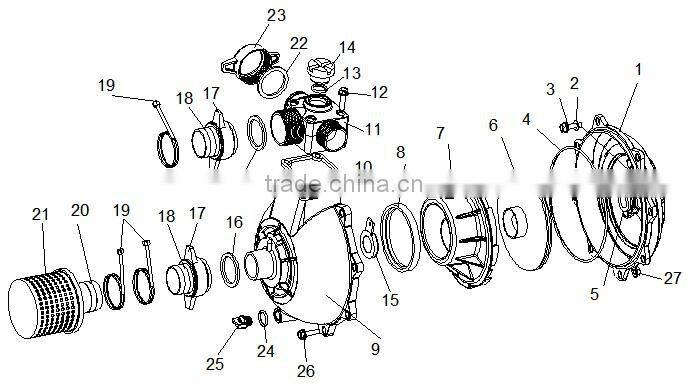

ErialNumber | Name | Number |
1 | Water pump cover | 1 |
2 | Aluminum flat washer φ8×φ16×1.5 | 4 |
3 | Bolt M8×35 GB5787 | 4 |
4 | Pump sealing ring | 1 |
5 | Mechanical seal / ceramic | 1 |
6 | Impeller | 1 |
7 | Eddy shell | 1 |
8 | Eddy shell sealing ring | 1 |
9 | Water pump body | 1 |
10 | Outlet gasket | 1 |
11 | The water outlet joint | 1 |
12 | Bolt M8×60 GB5787 | 4 |
13 | Rubber plug gasket | 1 |
14 | Threaded plug pump | 1 |
15 | Inlet check valve | 1 |
16 | Pipe joint sealing gasket 1.5" | 2 |
17 | Pipe joint connecting nut 1.5" | 2 |
18 | Pipe joint | 2 |
19 | Clamp | 3 |
20 | The filtering orifices | 1 |
21 | Filter cover | 1 |
22 | Pipe joint sealing gasket 1" | 2 |
23 | Pipe joint connecting nut 1" | 2 |
24 | Rubber plug gasket | 1 |
25 | Threaded plug pump | 1 |
26 | Bolt M8×35 GB5787 | 8 |
27 | Nut M8 GB6177 | 8 |
Why choose us?
Advantages we have:
A. Experienced water pump products supplier.
B. Professional design team and sales department for your service.
C. Alibaba golden supplier, factory recognized by "CE/IS9001"and so no.
D. 7/24 service for you all the question will be dealed within 24 hours.
Benelit you got:
A.Stable quality-coming from good material and technic.
B.Lower price-not cheapest but the lowest at the same quality.
C.Good service-satisfactory service before and after sale.
D.Delivery time10-15 days for mass production.
Customers to visit our factory
Business type:manufacturer,trading company.
Location:chongqing,china(mainland).
Year established:2010.
Company certifications:
Main products:chemical pumps,sewage pumps,self priming drag pumps,self
priming high lift pumps,self priming pumps.
Our philosophy is to provide our clients with a wide choice of quality products
and unprecedented services,we assure our clients of a mutually beneficial
relationship as we look forward to developing a long term strategic partnership
with your esteemed organization.
1.Q:Are you a manufactory or trading company?
A:We are water pump manufactory with more than seven years production experience,
welcome to visit our factory.
2.Q:What's your MOQ?
A:Trial sample order is ok.
3.Q:What's ypur payment terms?
A:T/T 30% payment in advance,70% pay it when we send all goods after.
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
