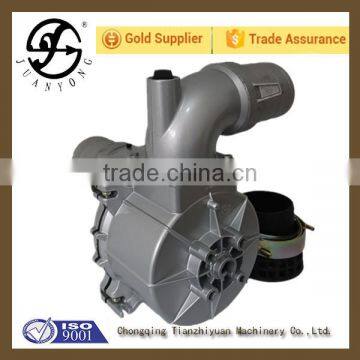

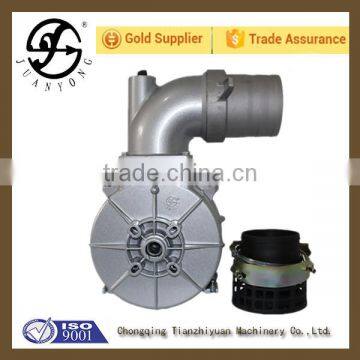

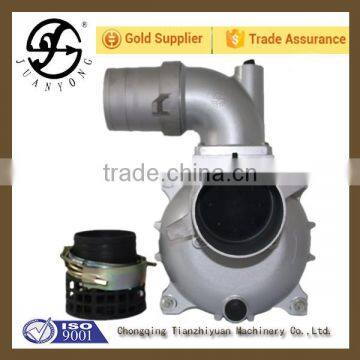

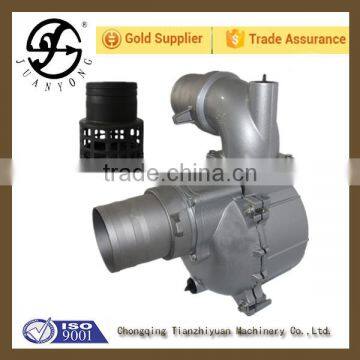

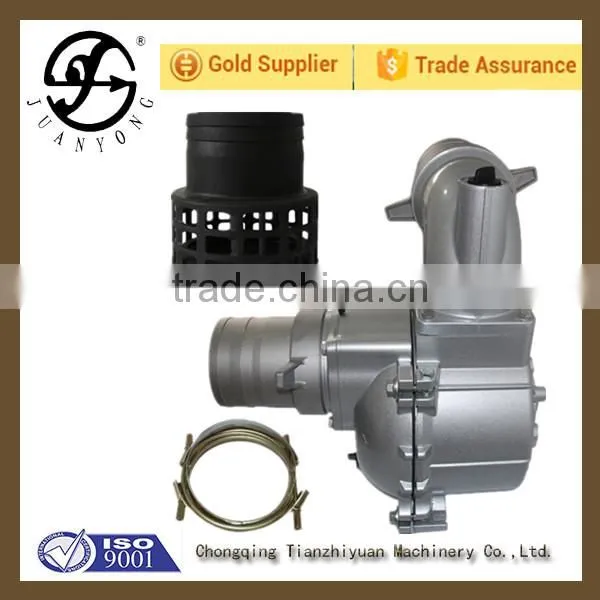

Water Usage and clean water Application peripheral pump
*Powered by a strong engine.The strong and lightweight die-cast aluminum pump delivers
high volume of water.
*The highly effective mechanical seal with special carbon ceramics provide extra durability.
*The entire unit is protected by a sturdy rollover pie frame.
*Guaranteed suction head of 7meters.
Performance curve
Parameter
ITEM | WP150 |
Outlet Size(mm) | 150 |
Inlet Size(mm) | 150 |
Speed(rpm) | 3600 |
Displacement Q.max(m3/h) | 150 |
Lift H.max(m) | 20 |
Suction(m) | 7 |
Power | 15hp or GX390 |
Applications
*Sprinklering for field irrigation.
*Irrigation of paddy fields.
*Orchard cultivation.
*Pumping water from wells.
*Feeding or draining water to/from ponds or troughs.
*Feeding or draining water on fish farms.
*Washing cattle,barns or agricultural tools.
*Feeding water into water reservoirs.
Serial number | Name | Number |
1 | Water pump cover | 1 |
2 | Outlet sealing ring | 1 |
3 | Iron flat washer | 8 |
4 | Bolt M10×40 | 4 |
5 | The water outlet joint | 1 |
6 | Threaded plug pump | 2 |
7 | Pipe joint sealing gasket | 3 |
8 | Pipe joint | 2 |
9 | Pipe joint connecting nut | 2 |
10(A B) | Clamp | 3 |
11 | Spring pin 10×30 | 1 |
12 | Mechanical seal / ceramic | 1 |
13 | Aluminum flat washer φ8×φ16×1.5 | 4 |
14 | Bolt M8×55 | 4 |
15 | Articulated M12×65 | 4 |
16 | Bolt M12×45 | 4 |
17 | Impeller | 1 |
18 | Pump sealing ring | 1 |
19 | Eddy shell | 1 |
20 | Water pump body | 1 |
21 | Inlet sealing gasket | 1 |
22 | Inlet joint | 1 |
23 | Screen combination | 1 |
24 | Bolt M10×30 | 4 |
25 | Nut M12 | 4 |
26 | Big washer | 4 |
Why choose us?
Advantages we have:
A. Experienced water pump products supplier.
B. Professional design team and sales department for your service.
C. Alibaba golden supplier, factory recognized by "CE/IS9001"and so no.
D. 7/24 service for you all the question will be dealed within 24 hours.
Benelit you got:
A.Stable quality-coming from good material and technic.
B.Lower price-not cheapest but the lowest at the same quality.
C.Good service-satisfactory service before and after sale.
D.Delivery time10-15 days for mass production.
Customers to visit our factory
Business type:manufacturer,trading company.
Location:chongqing,china(mainland).
Year established:2010.
Company certifications:
Main products:chemical pumps,sewage pumps,self priming drag pumps,self
priming high lift pumps,self priming pumps.
Our philosophy is to provide our clients with a wide choice of quality products
and unprecedented services,we assure our clients of a mutually beneficial
relationship as we look forward to developing a long term strategic partnership
with your esteemed organization.
1.Q:Are you a manufactory or trading company?
A:We are water pump manufactory with more than seven years production experience,
welcome to visit our factory.
2.Q:What's your MOQ?
A:Trial sample order is ok.
3.Q:What's ypur payment terms?
A:T/T 30% payment in advance,70% pay it when we send all goods after.
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
