Low Pressure Pressure and Agriculture Application Diesel Engine Driven Water Pump for Irrigation

Low Pressure Pressure and Agriculture Application Diesel Engine Driven Water Pump for Irrigation photo-1

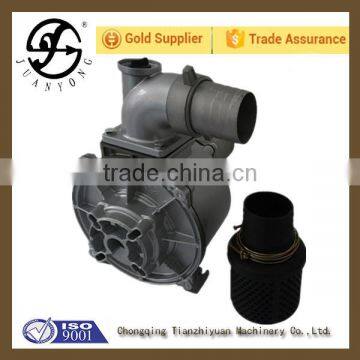

Low Pressure Pressure and Agriculture Application Diesel Engine Driven Water Pump for Irrigation photo-2

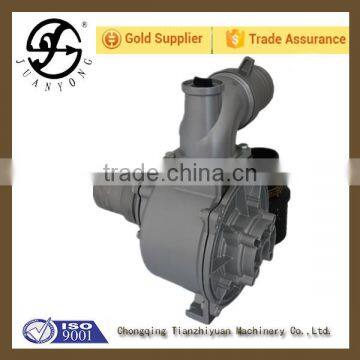

Low Pressure Pressure and Agriculture Application Diesel Engine Driven Water Pump for Irrigation photo-3

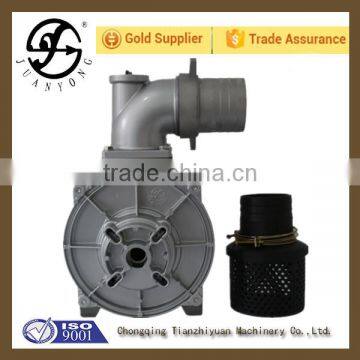

Low Pressure Pressure and Agriculture Application Diesel Engine Driven Water Pump for Irrigation photo-4
Low Pressure Pressure and Agriculture Application Diesel Engine Driven Water Pump for Irrigation photo-5
Low Pressure Pressure and Agriculture Application Diesel Engine Driven Water Pump for Irrigation photo-6
US$ 49 - 49 MOQ: 5 Sets
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
JUANYONG
Model Number:
WP100
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Chongqing, China
Brand Name JUANYONG
Model Number WP100
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Other, Hydraulic, 15hp
Standard or Nonstandard Standard
Fuel Gasoline
Pressure Low Pressure
Application Other, garden

Low Pressure Pressure and agriculture Application diesel engine driven water pump for irrigation

Low Pressure Pressure and agriculture Application diesel engine driven water pump for irrigation

Performance curve



Parameter

ITEM

WP100

Outlet Size(mm)

100

Inlet Size(mm)

100

Speed(rpm)

3600

Displacement Q.max(m3/h)

90

Lift H.max(m)

25

Suction(m)

7

Engine Model

190F

Serial number

Name

Number

1

Water pump cover

1

2

Aluminum flat washer  φ8×φ16×1.5

5

3

Bolt  M8×45 GB5787

4

4

Pump sealing ring

1

5

Mechanical seal / ceramic

1

6

Impeller

1

7

Eddy shell

1

8

Eddy shell sealing ring

1

9

Water pump body

1

10

Outlet gasket

1

11

The water outlet joint

1

12

Bolt  M10×30

12

13

Rubber plug gasket

2

14

Threaded plug pump

2

15

Inlet sealing gasket

1

16

Inlet joint

1

17

Pipe joint sealing gasket

2

18

Pipe joint connecting nut

2

19

Pipe joint

2

20

Clamp

3

21

The filtering orifices

1

22

Filter cover

1





Water pump feactures

*Powered by a strong engine.The strong and lightweight die-cast aluminum pump delivers



high volume of water.



*The highly effective mechanical seal with special carbon ceramics provide extra durability.



*The entire unit is protected by a sturdy rollover pie frame.



*Guaranteed suction head of 7meters.

Customers to visit our factory

 Low Pressure Pressure and agriculture Application diesel engine driven water pump for irrigationLow Pressure Pressure and agriculture Application diesel engine driven water pump for irrigationLow Pressure Pressure and agriculture Application diesel engine driven water pump for irrigationLow Pressure Pressure and agriculture Application diesel engine driven water pump for irrigation



Applications

*Sprinkling for field irrigation.



*Irrigation of paddy fields.



*Orchard cultivation.



*Pumping water from wells.



*Feeding or draining water to/from ponds or troughs.



*Feeding or draining water on fish farms.



*Washing cattle,barns or agricultural tools.



*Feeding water into water reservoirs.



Delivery &Payment



Delivery time:10-15days after initial payment.

                         Sampe by express, like UPS,TNT,FEDEX,EMS by air.

                          For large goods will delivery by sea.

       Payment :T/T30% payment in advance,70% pay it when we prepared all goods after.

                         West Uion/PayPal and the special issues can be discussed.Low Pressure Pressure and agriculture Application diesel engine driven water pump for irrigation

Our Services

Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
