Help CenterKINGWAY 3 Inch Gasoline Engine Pump, With Chemical Use Gasoline Water Pump for Garden Line Solar Product
Related Products
-
12v Mini Submersible Self Priming Water Pump Gasoline Pump PriceUS$ 14 - 24MOQ: 10 Sets -
Juanyong Brand 12 v Electric High Pressure Water Pump for Irrigation Made in ChinaUS$ 65 - 75MOQ: 10 Sets
-
China Brand 168F Engine Drive Chemical Pumps With Plastic for Industry UsageUS$ 30 - 45MOQ: 10 Sets
-
6.5HP Industrial Pump High Quality Sewage Water Pump Machine in ChinaUS$ 60 - 80MOQ: 10 Sets
-
JUANYONG Brand Gasoline Water Pump Electric Water Pump Motor PriceUS$ 16 - 26MOQ: 10 Sets
Company information
Tianzhiyuan Machinery Company has been in water pumps industry close to 7 years. Tianzhiyuan provide self-priming water pumps for a wide range of water supply applications- agricultural irrigation, orchard cultivation, drinking water, forestry and firework. Put our advance water pumps and innovation to the world. Tianzhiyuan Machinery Company within concentrated operation of self-priming water pump, include farm irrigation high lift self priming pump, water pumps with 2-6 inches, self priming clear water pump, self priming dirty pumps, high lift water pump, chemical pump/ agriculture irrigation water pump, sewage water pump and related machine components. Tianzhiyuan water pumps have been sold to more than 40 countries all over the world.
Tianzhiyuan is actively expanding its existing business and assessing new opportunities throughout China and the globe. Through various functions, we are working to provide the right products and services to customers at home and abroad. Now we are cooperating with LONCIN, RATO, Dajing, Lianlong etc. Tianzhiyuan develop it services according to its customer’s requirement.
Introduction of water pump
We specilize in water pump for many years, which has enjoyed great popularity in world market.This kind of chamical pump is designed for metering with 168F engine, which can work efficiently and stab ly.
Paramance
ITEM |
FTB80 |
Outlet Size(mm) |
80 |
Inlet Size(mm) |
80 |
Speed(rpm) |
3600 |
Displacement Q.max(m3/h) |
50 |
Lift H.max(m) |
22 |
Suction(m) |
7 |
Engine Model |
168F |

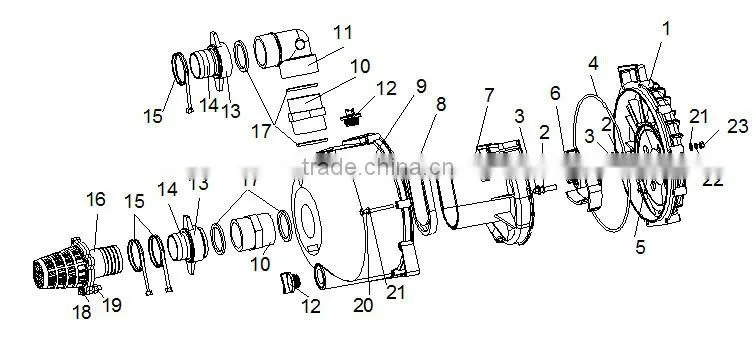

Serial number |
Name
|
Number
|
1 |
Water pump cover |
1 |
2 |
Rubber ring φ12×φ6×3.1 |
4 |
3 |
Bolt M8×35 |
4 |
4 |
Pump sealing ring |
1 |
5 |
Mechanical seal / ceramic |
1 |
6 |
Impeller |
1 |
7 |
Eddy shell |
1 |
8 |
Eddy shell sealing ring |
1 |
9 |
Water pump body |
1 |
10 |
Inlet joint |
2 |
11 |
The water outlet joint |
1 |
12 |
Threaded plug pump |
2 |
13 |
Pipe joint connecting nut |
2 |
14 |
Pipe joint |
2 |
15 |
Clamp |
3 |
16 |
Filter cover |
1 |
17 |
Pipe joint sealing gasket |
2 |
18 |
Bolt M8×35 |
2 |
19 |
Nut M8 |
2 |
20 |
Bolt M6×65 |
10 |
21 |
Shim |
20 |
22 |
Spring pad |
10 |
23 |
Nut M6 |
10 |

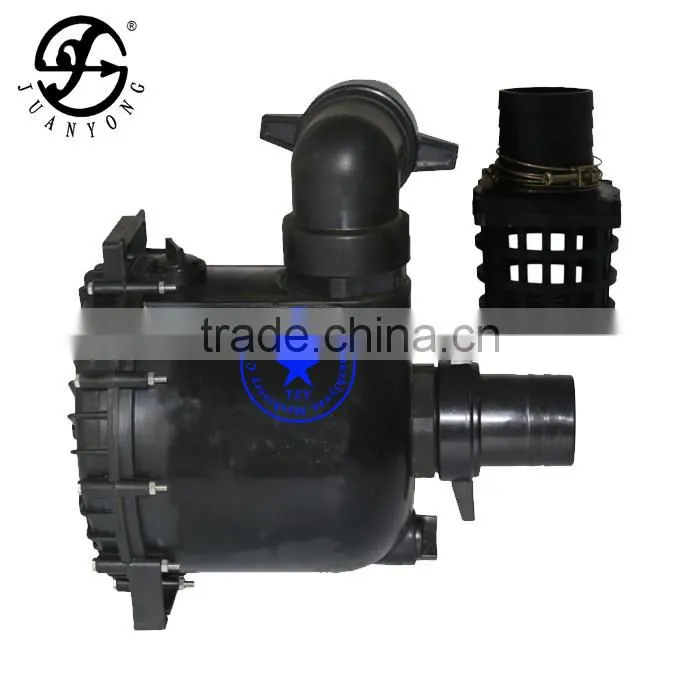

Product photos
Quality Control:
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer’s own inspection.
4: Third party inspection.
5: Testing: UT, PT, MT, X-ray testing etc.
6: GB/T6402-91, JB4730-2000, JB4726-2000, JB4727-2000, JB4728-2000 and JB/T5000.8-1998.
Product certification
