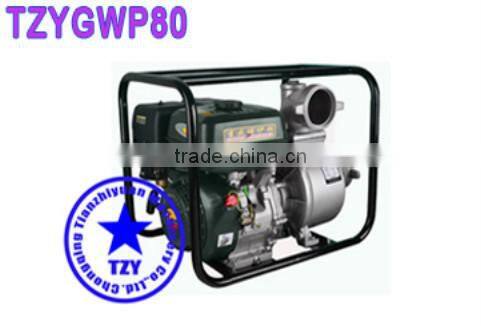

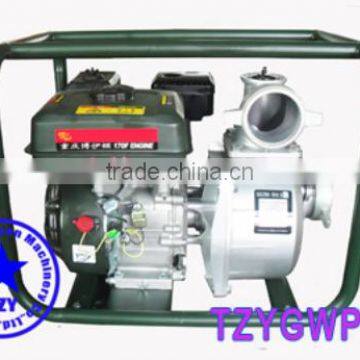

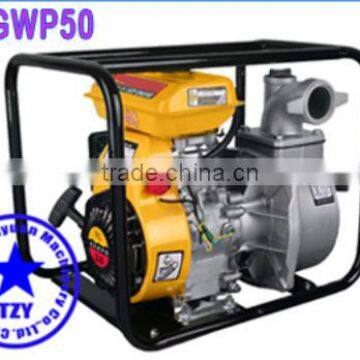

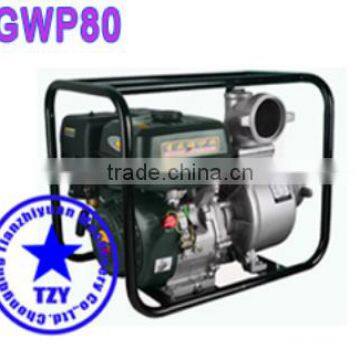

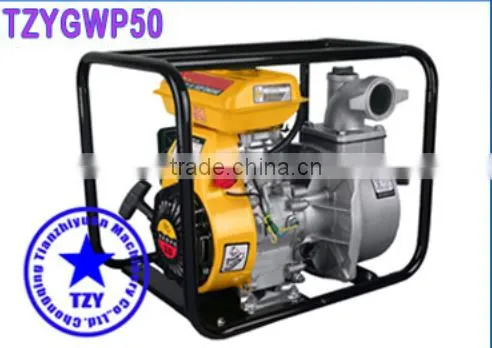

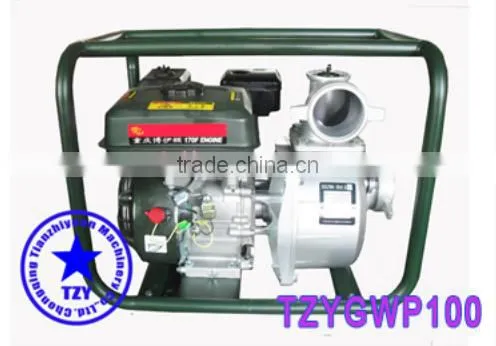

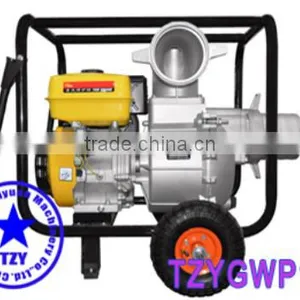

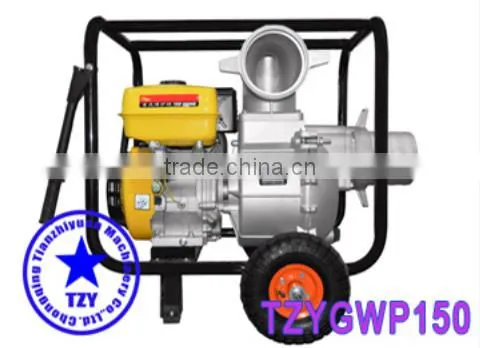

Help CenterJUANYONG2&3&4&6 Gasoline Water Pump for Desert Control 1.5-60t/h
Related Products
-
"Juanyong"Brand 3 Inch High Pressure Water Pump for Car WashUS$ 65 - 75MOQ: 10 Sets -
China Chongqing Juanyong Brand 12v Electric High Pressure Water PumpUS$ 40 - 50MOQ: 10 Sets
-
Sewage Submersible Gasoline Water Pump With Centrifugal Pump for SaleUS$ 58 - 68MOQ: 5 Sets
-
Juanyong Brand Small Electric Water Pump 12v dc Mini Water Pump for Car WashUS$ 13 - 20MOQ: 10 Sets
-
JUANYONG Chemical Centrifugal Self Priming Water Pump for Submersible Pump Made in ChinaUS$ 42 - 52MOQ: 10 Sets
| Model No. | TZYGWP50A | TZYGWP50 | TZYGWP50 | TZYGWP80 |
| Outlet size(mm) | 2"(50mm) | 3"(80mm) | 4"(100mm) | 6"(150mm) |
| Inlet Size(mm) | 2"(50mm) | 3"(80mm) | 4"(100mm) | 6"(150mm) |
| Speed(rpm) | 3600 | 3600 | 3600 | 3600 |
| Displacement(m3/h) | 25 | 50 | 90 | 150 |
| Lift head(m) | 28 | 28 | 25 | 20 |
| suction(m) | 7 | 7 | 7 | 7 |
| Engine Name | TZYE168F | TZYE168F | TZYE190F | TZYE192F |
| Engine Type | OHV 25°,Single cylinder,4-storke,valve on top,forced air cooling | |||
| Bore stroke(mm) | 68 ×45 | 68×45 | 90×66 | 92×66 |
| Displacement(cc) | 163 | 163 | 419.9 | 439 |
| Compression Ratio | 8.5:1 | 8.5:1 | 8.0:1 | 8.0:1 |
| Max.Power | 5.5/3.8/3800 | 5.5/3.8/3800 | 15/8.6/3600 | 18/13.2/3600 |
| Rated Power | 4.4/3.2/3600 | 4.4/3.2/3600 | 11/8.2/3600 | 16/11.8/3600 |
| Max.torque(n.m/rpm) | 8.8/2600 | 8.8/2600 | 23/2700 | 28/2500 |
| Fuel Tank Capacity | 3.6 | 3.6 | 6.5 | 6.5 |
| Engine Oil Capacity | 0.6 | 0.6 | 1.1 | 1.1 |
| Ignition System | Transistor Magneto | Transistor Magneto | Transistor Magneto | Transistor Magneto |
| Start System | Recoil Start | Recoil Start | Recoil Start | Recoil Start |
| Minimum Fuel | ≤395 | ≤395 | ≤374 | ≤374 |
| Net/Gross Weight(kg) | 22/23 | 24/25 | 47/49 | 76/78 |
| Packing Dimension | 510×385×440 | 550×440×460 | 620×530×570 | 800×570×670 |
1.If you need the eletric starting,will add up 39 USD on above quotation.
2.We provide the OEM&ODM for customer and if you have the special request,welcome you talk with us.
Chongqing Tianzhiyuan machinery co., LTD. (formerly "beibei meaningful machinery accessories factory") is a
professional engaged in machine self-priming pump, high pressure pumps, sewage pumps, vibrators and its accessories and other products production and processing, the company produces water pump more than 20 sets. Widely used in agriculture (irrigation),
(fire), mining water supply and drainage, and many other industries, won the unanimous praise and trust of
customers. Company passed the ISO9001 quality management system certification, and constantly improve
the staff's quality consciousness, improving production testing equipment, accelerating technological innovation, and enhance the development ability, to produce more high quality products to serve the society. Our company
are: chongqing lifan, southeast, dragon, silver cheung, etc more than 20. I plant integrity, strength and product
quality are received industry recognition. Welcome all world friends come to visite our company.
