Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > 2015 JUANYONG Brand Condensate Pump

2015 JUANYONG Brand Condensate Pump

2015 JUANYONG Brand Condensate Pump thumbnail-1
2015 JUANYONG Brand Condensate Pump thumbnail-2
2015 JUANYONG Brand Condensate Pump thumbnail-3
2015 JUANYONG Brand Condensate Pump thumbnail-4
2015 JUANYONG Brand Condensate Pump thumbnail-5
2015 JUANYONG Brand Condensate Pump thumbnail-6
2015 JUANYONG Brand Condensate Pump photo-1
2015 JUANYONG Brand Condensate Pump photo-2
2015 JUANYONG Brand Condensate Pump photo-3
2015 JUANYONG Brand Condensate Pump photo-4
2015 JUANYONG Brand Condensate Pump photo-5
2015 JUANYONG Brand Condensate Pump photo-6
US$ 80 - 120 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
JUANYONG
Model Number:
WB80
Contact Supplier Request Quote Chat Now
Chongqing Tianzhiyuan Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Chongqing Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name JUANYONG
Model Number WB80
Theory Centrifugal Pump
Structure Multistage Pump
Usage Water
Power Hydraulic
Standard or Nonstandard Standard
Fuel Gasoline
Pressure Low Pressure
Application Sewage

Introduction of 3 Inch Sewage Pump

We specilize in water pump for many years, which has enjoyed great popularity in world market.This kind of sewage pump is designed for iindustry usage with 168F engine, which can work efficiently and stably.



Quality Control:
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer’s own inspection.
4: Third party inspection.
5: Testing: UT, PT, MT, X-ray testing etc.
6: GB/T6402-91, JB4730-2000, JB4726-2000, JB4727-2000, JB4728-2000 and JB/T5000.8-1998.



Specifications of 3 Inch Sewage Pump

ItemWB80
Inlet Size(mm)80
Outlet Size(mm)80
Speed(rpm) 3600

Displacement

Q.max(m3 /h)

50

Lift H.max(m)

20
 Suction(m)7
 Engine Model 168F



 Performance  Curve

 2015 JUANYONG Brand condensate pump



Water Pump Part List

No.NameNumber
1water pump cover1
2Aluminum flat washer Φ8×φ16×1.54
3Bolt M8×60 GB57874
4Pump sealing ring1
6mechanical seal/ceramic1
7Impeller1
8Eddy shell1
9Eddy shell sealing ring1
10water pump body1
11Outlet gasket1
12The water outlet joint1
13Bolt M812
14Rudder plug gasket2
15Threaded plug pump2
16Inlet sealing gasket1
17Inlet joint1
18Pipe joint sealing gasket2
19Pipe joint connecting nut2
20Pipe joint2
21Clamp3
22The filtering orifices1
23filter cover1

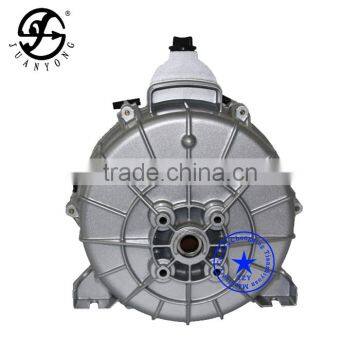

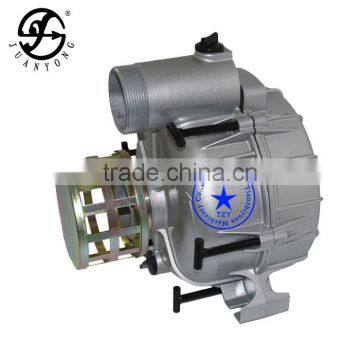

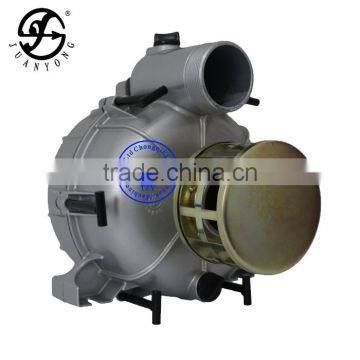

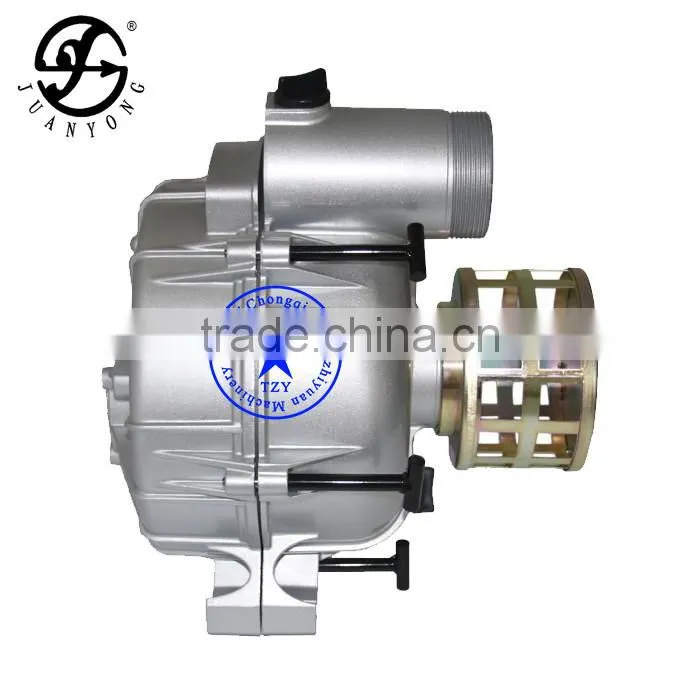

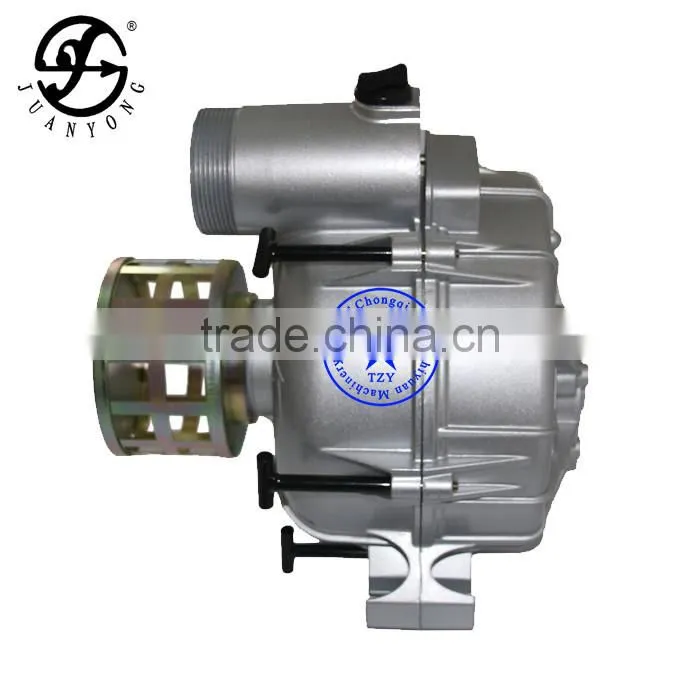

Image of Water Pump

2015 JUANYONG Brand condensate pump2015 JUANYONG Brand condensate pump



Certificate of Tianzhiyuan Water Pump





FAQ

1.What’s your MOQ?

The sample order is OK.

 2.What’s your payment terms?

T/T,L/C,D/A,D/P,etc.

3.What is the delivery time?

Standard sample 1 day.
