Help CenterSingle-stage Pump Structure and Irrigation,farm,sewage, Usage Centrifugal Sewage Pump
Related Products
-
Sewage and Clean Heavy Duty Water Pumps Electrically Operated.US$ 60 - 70MOQ: 10 Sets -
Factory Audit-DC Brushless Water Pump With Air Pressure Tank for Water PumpUS$ 60 - 70MOQ: 5 Sets
-
Factory Audit-DC Brushless Water Pump With Portable Diesel Water PumpUS$ 60 - 70MOQ: 5 Sets
-
Water Usage and Electric Power Sewage PumpUS$ 58 - 68MOQ: 5 Sets
-
Centrifugal Pump,sewage Water Pump, Single Stage Sewage PumpUS$ 60 - 70MOQ: 2 Sets
Tianzhiyuan Machinery Company within concentrated operation of self-priming water pump, include farm irrigation high lift self priming pump, water pumps with 2-6 inches, self priming clear water pump, self priming dirty pumps, high lift water pump, chemical pump/ agriculture irrigation water pump, sewage water pump and related machine components. The company has established their brand-----JUANYONG.
Performance curve
Parameter
ITEM |
WB80 |
Outlet Size(mm) |
80 |
Inlet Size(mm) |
80 |
Speed(rpm) |
3600 |
Displacement Q.max(m3/h) |
50 |
Lift H.max(m) |
20 |
Suction(m) |
7 |
Engine Model |
168F |

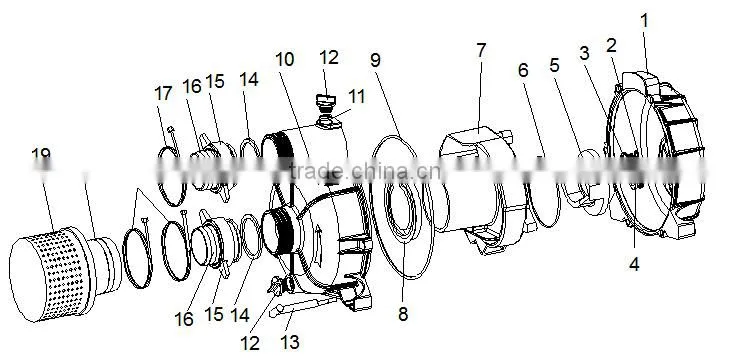

Serial number |
Name |
Number |
1 |
Water pump cover |
1 |
2 |
Aluminum flat washer φ8×φ16×1.5 |
4 |
3 |
Bolt M8×30 GB5787 |
4 |
4 |
Mechanical seal / ceramic |
1 |
5 |
Impeller |
1 |
6 |
Eddy shell sealing ring |
1 |
7 |
Eddy shell |
1 |
8 |
Inlet sealing gasket |
1 |
9 |
Pump sealing ring |
1 |
10 |
Water pump body |
1 |
11 |
Rubber plug gasket |
2 |
12 |
Threaded plug pump |
2 |
13 |
Bolt |
6 |
14 |
Pipe joint sealing gasket |
2 |
15 |
Pipe joint connecting nut |
2 |
16 |
Pipe joint |
2 |
17 |
Clamp |
3 |
18 |
The filtering orifices |
1 |
19 |
Filter cover |
1 |
Accesseries Installation Diagram
Customers to visit our factory
1.Q:Are you a manufactory or trading company?
A:We are water pump manufactory with more than six years production experience,welcome to visit our factory.
2.Q:What's your MOQ?
A:Trial sample order is ok.
3.Q:What's ypur payment terms?
A:T/T 30% payment in advance,70% pay it when we send all goods after.
Chongqing Tianzhiyuan machinery co., LTD. (formerly "beibei meaningful machinery accessories factory") is a professional engaged in machine self-priming pump, high pressure pumps, sewage pumps, vibrators and its accessories and other products production and processing, the company produces water pump more than 20 sets. Widely used in agriculture (irrigation), (fire), mining water supply and drainage, and many other industries, won the unanimous praise and trust of customers. Company passed the ISO9001 quality management system certification, and constantly improve the staff's quality consciousness, improving production testing equipment, accelerating technological innovation, and enhance the development ability, to produce more high quality products to serve the society. Our company are: chongqing lifan, southeast, dragon, silver cheung, etc more than 20. I plant integrity, strength and product quality are received industry recognition. Welcome all world friends come to visite our company.
Advantages we have:
A. Experienced slate products supplier.
B. Professional design team and sales department for your service.
C. Alibaba golden supplier, factory recognized by "CE/IS9001"and so no.
D. 7/24 service for you all the question will be dealed within 24 hours.
Benelit you got:
A. stable quality-coming from good material and technic.
B. lower price-not cheapest but the lowest at the same quality.
C. good service-satisfactory service before and after sale.
D. delivery time10-15 days for mass production.
