Performance curve
Parameter
| ITEM | WB100 |
| Outlet Size(mm) | 100 |
| Inlet Size(mm) | 100 |
| Speed(rpm) | 3600 |
| Displacemnet Q.max(m3/h) | 68 |
| Lift H.max(m) | 20 |
| Suction(m) | 5 |
| Engine Model | 190F |

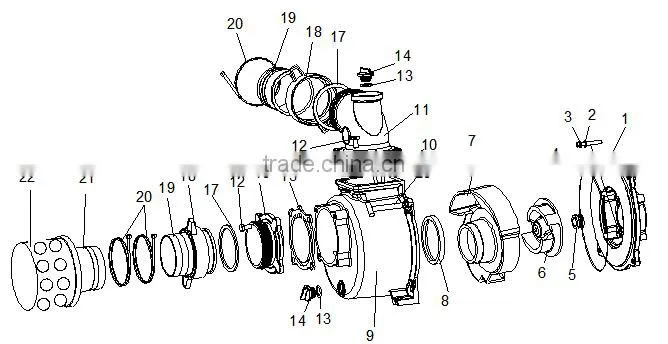

Serial number |
Name |
Number |
1 |
Water pump cover |
1 |
2 |
Aluminum flat washer φ8×φ16×1.5 |
5 |
3 |
Bolt M8×45 GB5787 |
4 |
4 |
Pump sealing ring |
1 |
5 |
Mechanical seal / ceramic |
1 |
6 |
Impeller |
1 |
7 |
Eddy shell |
1 |
8 |
Eddy shell sealing ring |
1 |
9 |
Water pump body |
1 |
10 |
Outlet gasket |
1 |
11 |
The water outlet joint |
1 |
12 |
Bolt M10×30 |
8 |
13 |
Rubber plug gasket |
2 |
14 |
Threaded plug pump |
2 |
15 |
Inlet sealing gasket |
1 |
16 |
Inlet joint |
1 |
17 |
Pipe joint sealing gasket |
2 |
18 |
Pipe joint connecting nut |
2 |
19 |
Pipe joint |
2 |
20 |
Clamp |
3 |
21 |
The filtering orifices |
1 |
22 |
Filter cover |
1 |
23 |
T bolt |
4 |

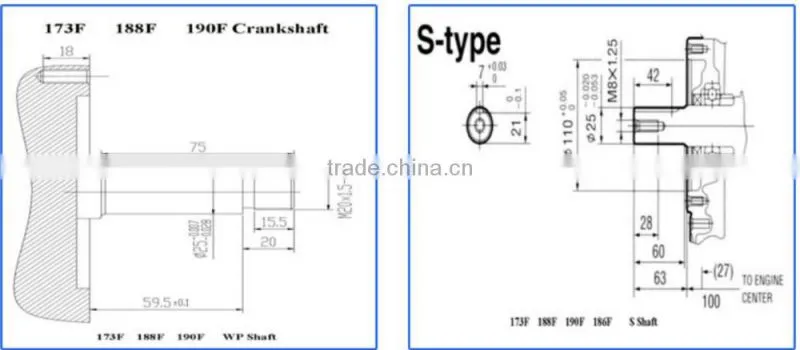

Engine Crankshaft Data Request
Customers to visit our factory
Packaging the goods
Advantages we have:
A. Experienced slate products supplier.
B. Professional design team and sales department for your service.
C. Alibaba golden supplier, factory recognized by "CE/IS9001"and so no.
D. 7/24 service for you all the question will be dealed within 24 hours.
Benelit you got:
A. stable quality-coming from good material and technic.
B. lower price-not cheapest but the lowest at the same quality.
C. good service-satisfactory service before and after sale.
D. delivery time10-15 days for mass production.
Delivery time:10-15days after initial payment.
Sampe by express, like UPS,TNT,FEDEX,EMS by air.
For large goods will delivery by sea.
Payment :T/T30% payment in advance,70% pay it when we prepared all goods after.
West Uion/PayPal and the special issues can be discussed.
Chongqing Tianzhiyuan machinery co., LTD. (formerly "beibei meaningful machinery accessories factory") is a professional engaged in machine self-priming pump, high pressure pumps, sewage pumps, vibrators and its accessories and other products production and processing, the company produces water pump more than 20 sets. Widely used in agriculture (irrigation), (fire), mining water supply and drainage, and many other industries, won the unanimous praise and trust of customers. Company passed the ISO9001 quality management system certification, and constantly improve the staff's quality consciousness, improving production testing equipment, accelerating technological innovation, and enhance the development ability, to produce more high quality products to serve the society. Our company are: chongqing lifan, southeast, dragon, silver cheung, etc more than 20. I plant integrity, strength and product quality are received industry recognition. Welcome all world friends come to visite our company.
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
