Introduction of 3 Inch Dirty Water Pump
This Dirty Water Pumps can be driven by petrol or diesel engine, offering rapid self-priming capabilities and have been designed to transfer high volumes of contaminated water through big single closed-style impellers that are capable of handling small solids. This Pump's unique quick release systems allow for rapid and efficient removal of debris from clogged impellers, ensuring ease of maintenance and long-lasting performance.
Specifications of 3 Inch Dirty Water Pump
| Item | WB80 |
| Inlet Size(mm) | 80 |
| Outlet Size(mm) | 80 |
| Speed(rpm) | 3600 |
|
Displacement Q.max(m3 /h) |
50 |
Lift H.max(m) |
20 |
| Suction(m) | 7 |
| Engine Model | 168F |
| No. | Name | Number |
| 1 | water pump cover | 1 |
| 2 | Aluminum flat washer Φ8×φ16×1.5 | 4 |
| 3 | Bolt M8×60 GB5787 | 4 |
| 4 | Pump sealing ring | 1 |
| 6 | mechanical seal/ceramic | 1 |
| 7 | Impeller | 1 |
| 8 | Eddy shell | 1 |
| 9 | Eddy shell sealing ring | 1 |
| 10 | water pump body | 1 |
| 11 | Outlet gasket | 1 |
| 12 | The water outlet joint | 1 |
| 13 | Bolt M8 | 12 |
| 14 | Rudder plug gasket | 2 |
| 15 | Threaded plug pump | 2 |
| 16 | Inlet sealing gasket | 1 |
| 17 | Inlet joint | 1 |
| 18 | Pipe joint sealing gasket | 2 |
| 19 | Pipe joint connecting nut | 2 |
| 20 | Pipe joint | 2 |
| 21 | Clamp | 3 |
| 22 | The filtering orifices | 1 |
| 23 | filter cover | 1 |

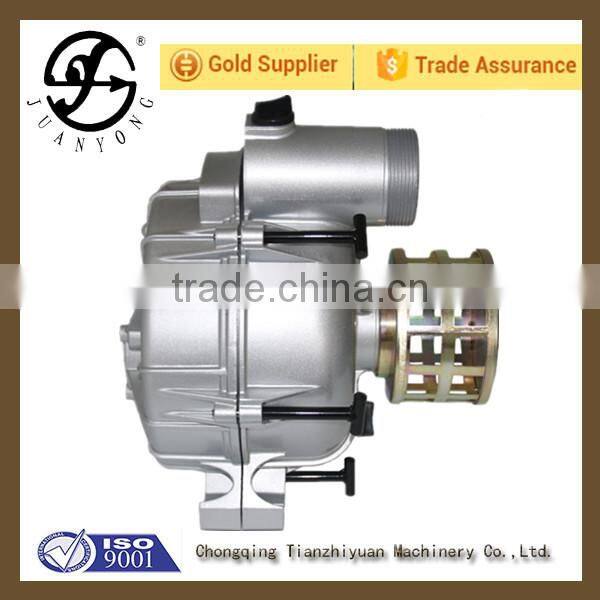

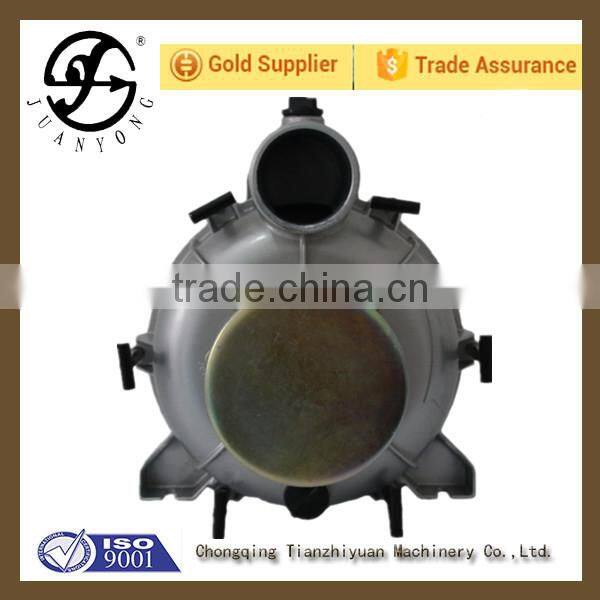

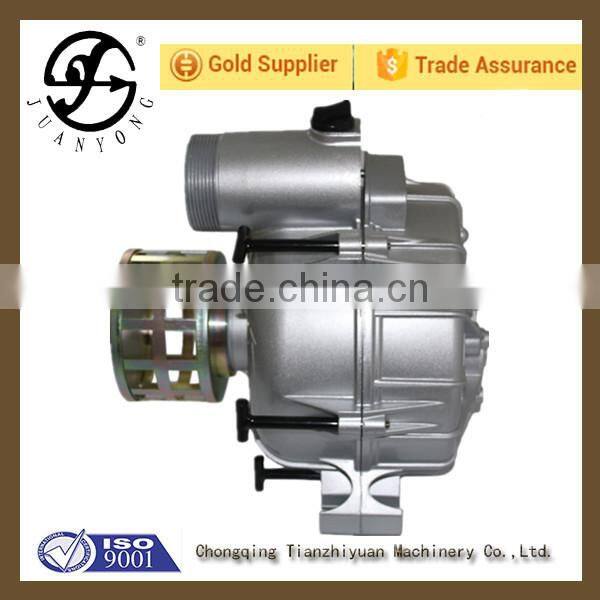

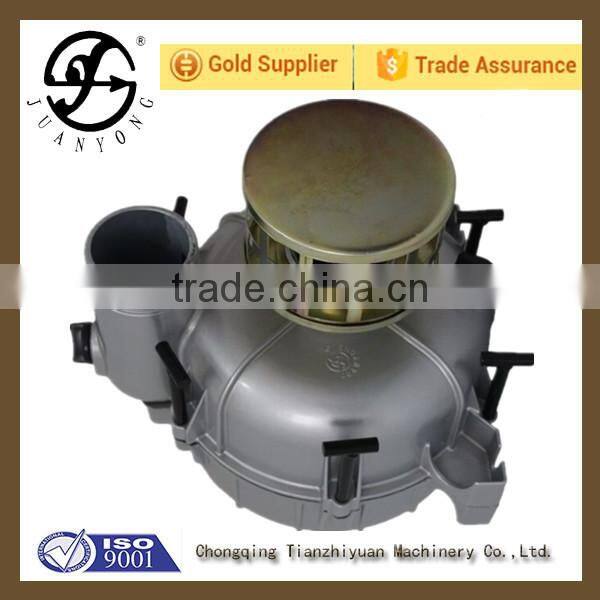

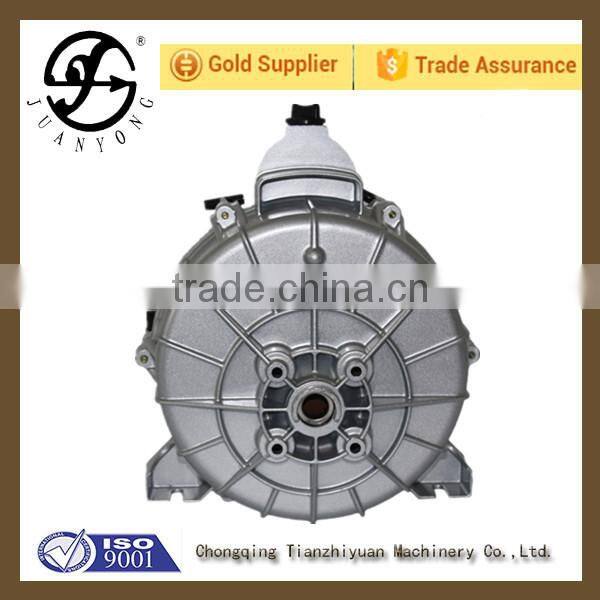

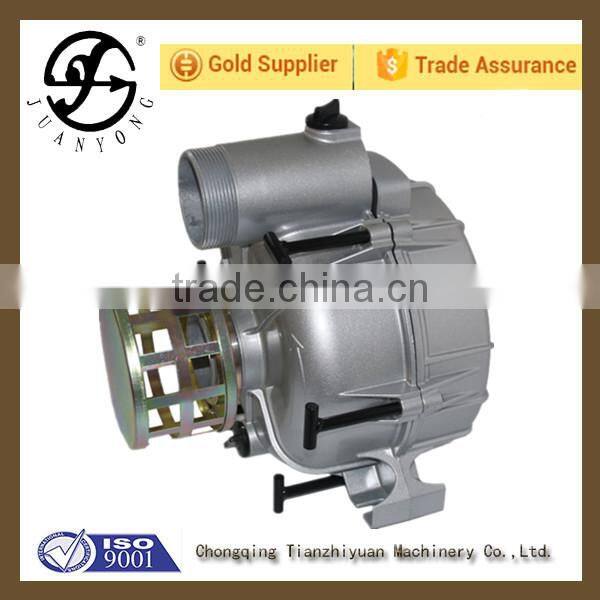

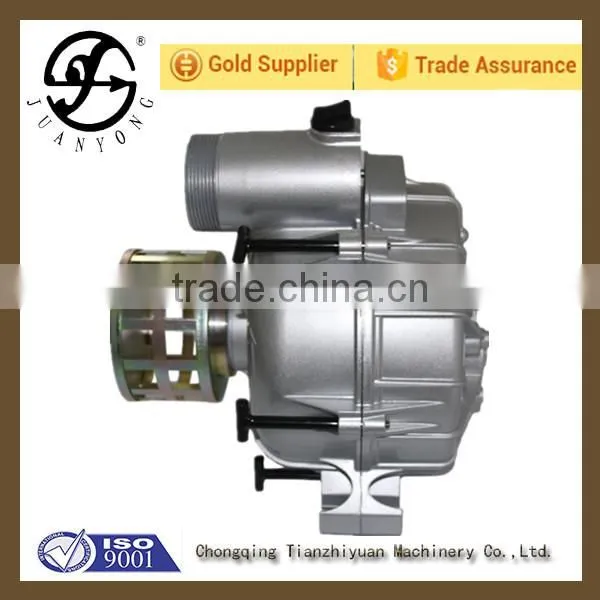

Pictures of 3 Inch Dirty Water Pump
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
