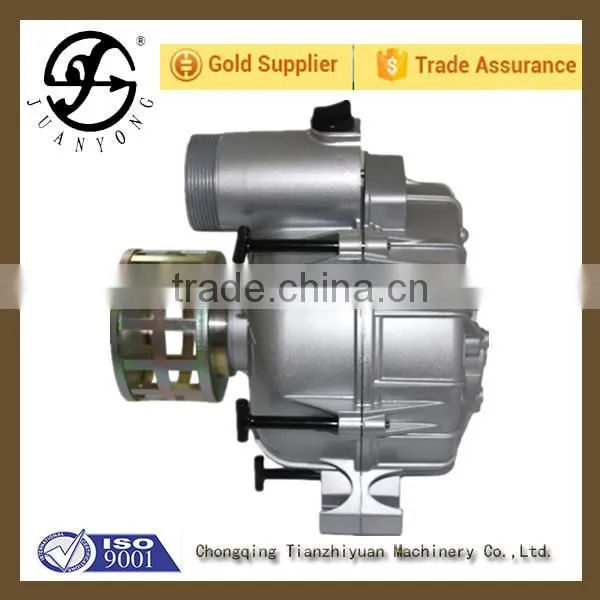

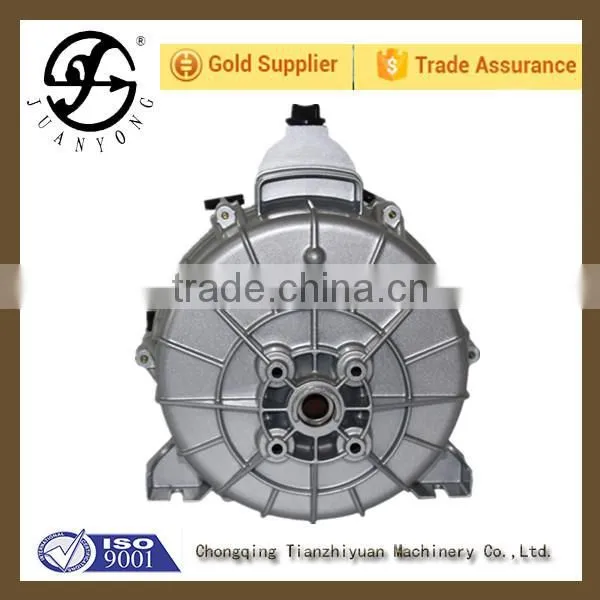

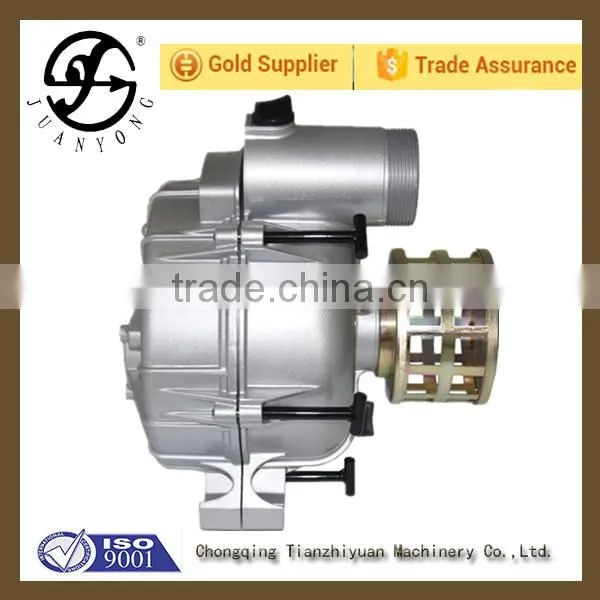

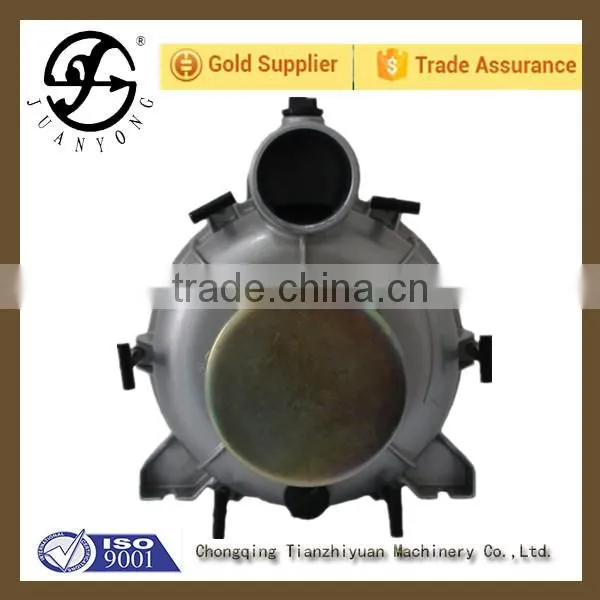

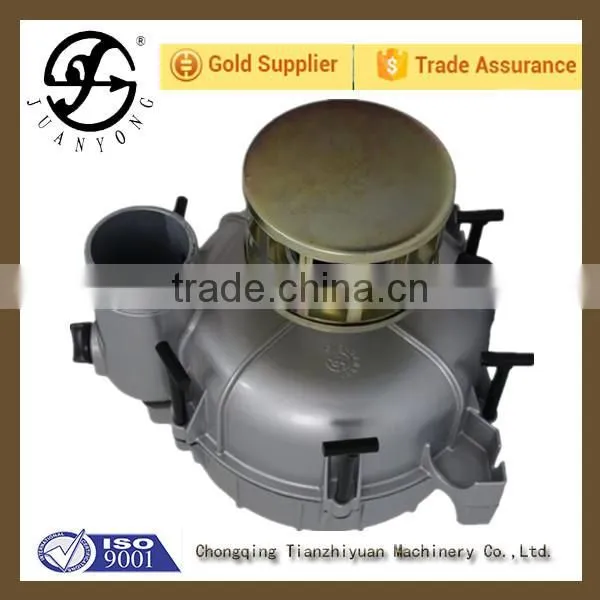

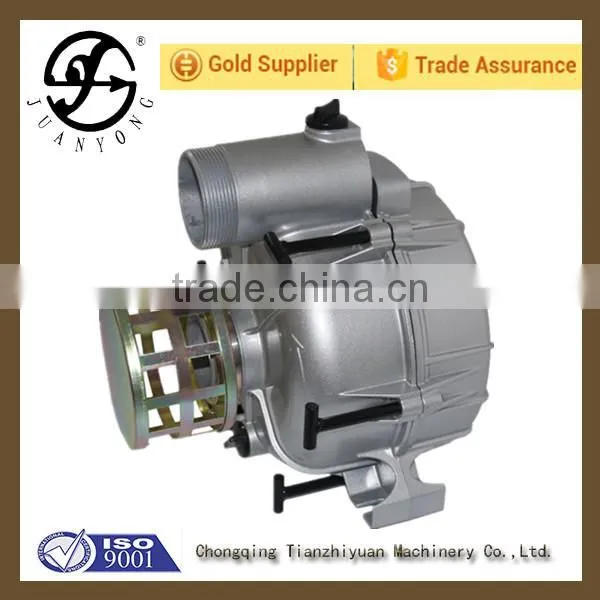

3 inch gasoline engine effluent pump

FOB Price

USD $58 - $68 / Set

10 Sets(Min.Order)

Supply Ability 1500 Set / Sets per Month
Port Shanghai or Chongqing Port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Chongqing, China	Brand Name:	JUANYONG	Model Number:	WB80
Theory:	Centrifugal Pump	Structure:	Multistage Pump	Usage:	Water
Power:	Hydraulic	Standard or Nonstandard:	Standard	Fuel:	Gasoline
Pressure:	Low Pressure	Application:	Submersible

Product Description

Introduction of 3 Inch water heat pump

Quality Control:
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer’s own inspection.
4: Third party inspection.
5: Testing: UT, PT, MT, X-ray testing etc.
6: GB/T6402-91, JB4730-2000, JB4726-2000, JB4727-2000, JB4728-2000 and JB/T5000.8-1998.

Specifications of 3 Inch water heat pump

Item	WB80
Inlet Size(mm)	80
Outlet Size(mm)	80
Speed(rpm)	3600
Displacement Q.max(m³/h)	50
Lift H.max(m)	20
Suction(m)	7
Engine Power	6.5HP

Performance Curve

Water Pump Part List

No.	Name	Number
1	water pump cover	1
2	Aluminum flat washer Φ8×φ16×1.5	4
3	Bolt M8×60 GB5787	4
4	Pump sealing ring	1
6	mechanical seal/ceramic	1
7	Impeller	1
8	Eddy shell	1
9	Eddy shell sealing ring	1
10	water pump body	1
11	Outlet gasket	1
12	The water outlet joint	1
13	Bolt M8	12
14	Rudder plug gasket	2
15	Threaded plug pump	2
16	Inlet sealing gasket	1
17	Inlet joint	1
18	Pipe joint sealing gasket	2
19	Pipe joint connecting nut	2
20	Pipe joint	2
21	Clamp	3
22	The filtering orifices	1
23	filter cover	1

Pictures of Trash Pump

Certifications

Our Service

Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.

How to contact us

Contact Us

Chongqing Tianzhiyuan Machinery Co., Ltd.: Contact nameJane Zhang; Phone86-023-86083286; AddressFuzibao Community, Tianma Village, Xiema Town
