Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > 4 Inch Dirty Water Pump Driven by 13hp Petrol Engine
4 Inch Dirty Water Pump Driven by 13hp Petrol Engine
US$ 57 - 70
MOQ: 5 Sets
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
JUANYONG
Model Number:
WB100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Chongqing Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JUANYONG Brand 4 Inch Semi Trash Pump Sewage Grinder PumpUS$ 65 - 70MOQ: 5 Sets -
China Manufacturer Warehouse Sewage Water Pumps With Aluminum Body for Farm Irrigation Hot Sales Item on 2016US$ 60 - 70MOQ: 1 Set
-
Sewage Gasoline Water Pump With Sewage Pump Trash PumpUS$ 58 - 68MOQ: 5 Sets
-
Made in China 3 Inch Sewage Water Pumps Water With NPT ThreadUS$ 58 - 68MOQ: 5 Sets
-
Made in China 3"sewage Water Pump With 168F 6.5hp Diesel Engine Penis Pump to TurbineUS$ 58 - 68MOQ: 5 Sets
Place of Origin
Chongqing, China
Brand Name
JUANYONG
Model Number
WB100
Theory
Other, Self Priming
Structure
Single-stage Pump
Usage
Water
Power
Hydraulic
Standard or Nonstandard
Standard
Fuel
Gasoline
Pressure
Low Pressure
Application
Sewage
Introduction of 4 Inch Dirty Water Pump
Specifications of 4 Inch Dirty Water Pump
| Item | WB100 |
| Inlet Size(mm) | 100 |
| Outlet Size(mm) | 100 |
|
Displacement Q.max(m3 /h) |
68 |
Lift H.max(m) |
20 |
| Suction(m) | 5 |
| Engine Model | 190F |
Performance Curve
Water Pump Part List
| No. | Name | Number |
| 1 | water pump cover | 1 |
| 2 | Aluminum flat washer Φ8×φ16×1.5 | 4 |
| 3 | Bolt M8×60 GB5787 | 4 |
| 4 | Pump sealing ring | 1 |
| 6 | mechanical seal/ceramic | 1 |
| 7 | Impeller | 1 |
| 8 | Eddy shell | 1 |
| 9 | Eddy shell sealing ring | 1 |
| 10 | water pump body | 1 |
| 11 | Outlet gasket | 1 |
| 12 | The water outlet joint | 1 |
| 13 | Bolt M8 | 12 |
| 14 | Rudder plug gasket | 2 |
| 15 | Threaded plug pump | 2 |
| 16 | Inlet sealing gasket | 1 |
| 17 | Inlet joint | 1 |
| 18 | Pipe joint sealing gasket | 2 |
| 19 | Pipe joint connecting nut | 2 |
| 20 | Pipe joint | 2 |
| 21 | Clamp | 3 |
| 22 | The filtering orifices | 1 |
| 23 | filter cover | 1 |

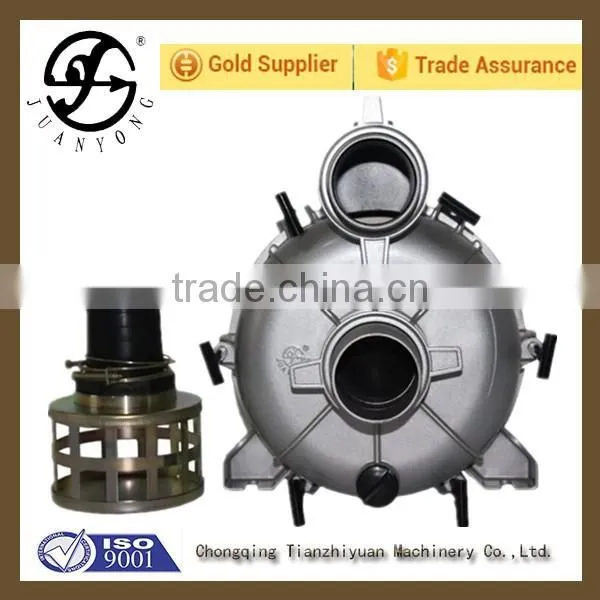

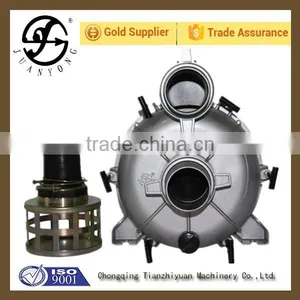

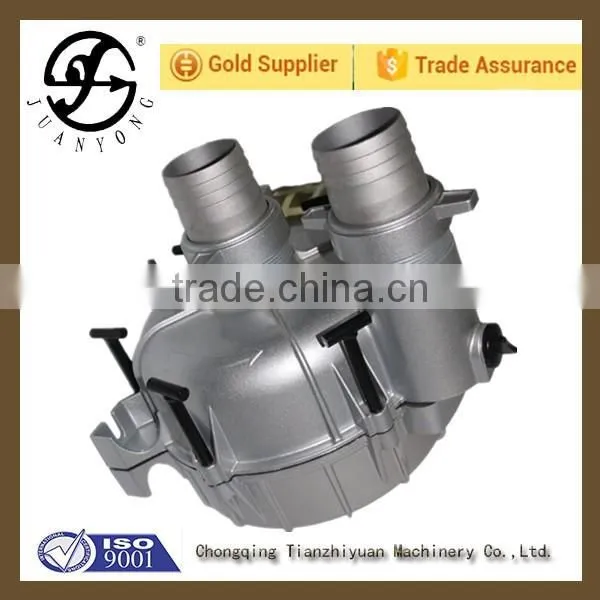

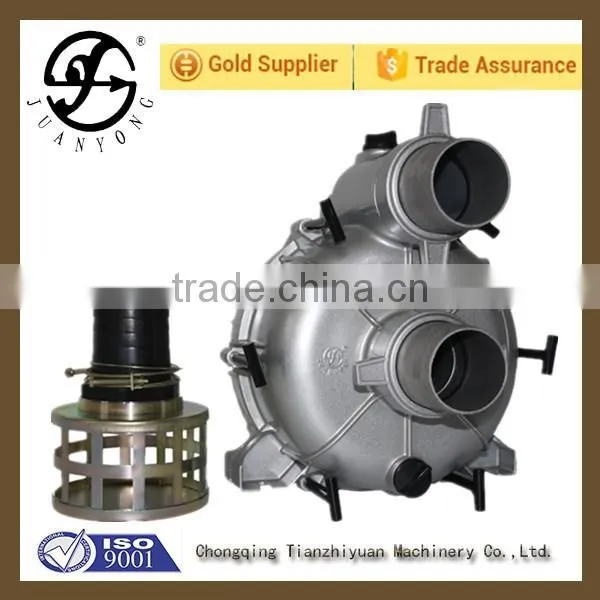

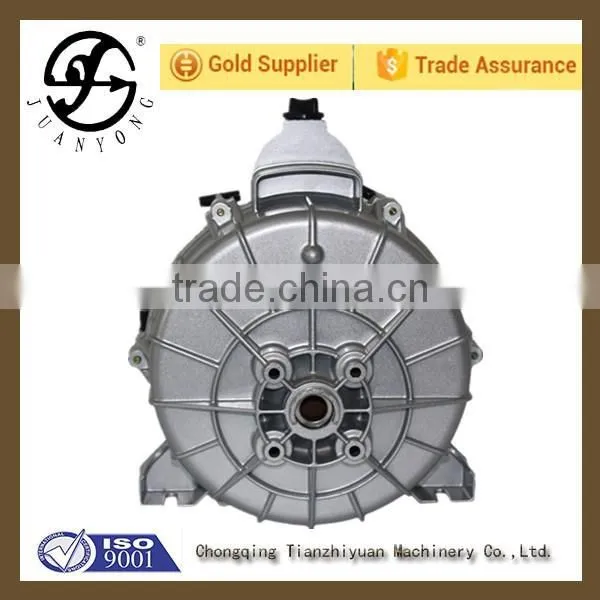

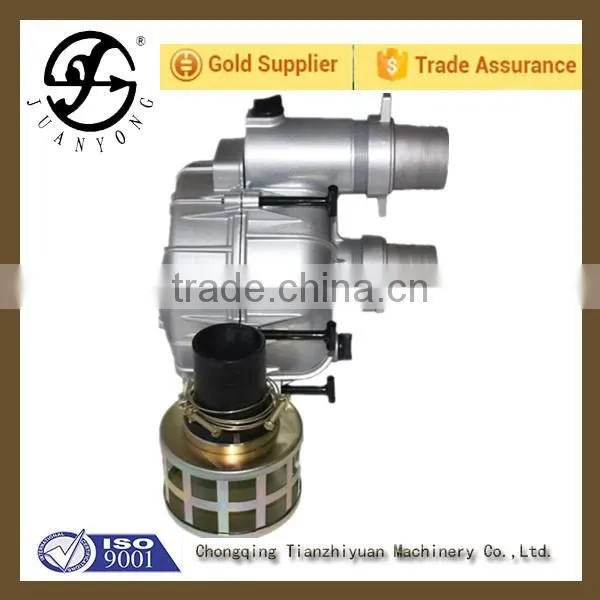

Image of 4 Inch Dirty Water Pump
Certificate of Tianzhiyuan Water Pump
Our Service
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
