Introduction of 3 Inch High Lift Water Pump
We specilize in water pump for many years, which has enjoyed great popularity in world market.This kind of high pressure water pump is designed for irrigation with 190F engine, which can work efficiently and stably.
Quality Control:
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer’s own inspection.
4: Third party inspection.
5: Testing: UT, PT, MT, X-ray testing etc.
6: GB/T6402-91, JB4730-2000, JB4726-2000, JB4727-2000, JB4728-2000 and JB/T5000.8-1998.
Main Specifications
| Item | HP80 |
| Inlet Size(mm) | 80 |
| Outlet Size(mm) | 80 |
| Speed(rpm) | 3600 |
|
Displacement Q.max(m3 /h) |
55 |
Lift H.max(m) |
70 |
| Suction(m) | 7 |
| Engine Model | 190F |
Applications:
1.Sprinkling for field irrigation.
2.Irrigation of paddy fields.
3.Orchard calculation.
4.Pumping water from wells.
5.Feeding or draining water to /from ponds or troughs.
6.Feeding or draining water on fish farms.
7.Washing cattle,barns or agricultural tools.
8.Feeding water into water reservoirs.
Performance Curve
Water Pump Parts
| Name | Number |
| water pump cover | 1 |
| Aluminum flat washer Φ8×φ16×1.5 | 4 |
| Bolt M8×60 GB5787 | 4 |
| Pump sealing ring | 1 |
| mechanical seal/ceramic | 1 |
| Impeller | 1 |
| Eddy shell | 1 |
| Eddy shell sealing ring | 1 |
| water pump body | 1 |
| Outlet gasket | 1 |
| The water outlet joint | 1 |
| Bolt M8 | 12 |
| Rudder plug gasket | 2 |
| Threaded plug pump | 2 |
| Inlet sealing gasket | 1 |
| Inlet joint | 1 |
| Pipe joint sealing gasket | 2 |
| Pipe joint connecting nut | 2 |
| Pipe joint | 2 |
| Clamp | 3 |
| The filtering orifices | 1 |
| filter cover | 1 |

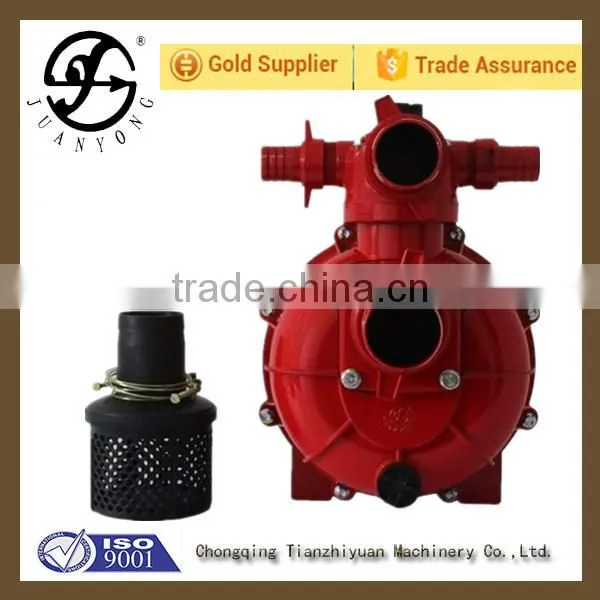

Images of Water Pump
Factory Pictures
Certificate of Tianzhiyuan Water Pump
Our Service
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
FAQ
1.What’s your MOQ?
The sample order is OK.
2.What’s your payment terms?
T/T,L/C,D/A,D/P,etc.
3.What is the delivery time?
Standard sample one day.
