High Pressure Hydraulic Oil Pump High Lift Pump(3 Inches) With Aluminum Material Pump
US$ 65 - 75
MOQ: 5 Sets
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
JUANYONG
Model Number:
HP80
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Lift Pump(1.5 Inches) With Aluminum Material Power Steering Pump for TruckUS$ 29 - 39MOQ: 5 Sets -
Small Engine Driven High Lift Micro Water PumpUS$ 31 - 36MOQ: 10 Sets
-
High Pressure Self Priming Water Pump With Aluminum Housing for Firefighting UsageUS$ 20 - 60MOQ: 5 Sets
-
2" 50 Port High Pressure Self Priming Water Pump With Aluminum Housing for Firefighting Usage Made in ChinUS$ 20 - 60MOQ: 5 Sets
-
High Pressure Self Priming Water Pump With Aluminum Housing for Firefighting Usage Made in ChinaUS$ 20 - 60MOQ: 10 Sets
Place of Origin
Chongqing, China
Brand Name
JUANYONG
Model Number
HP80
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Water
Power
Hydraulic
Standard or Nonstandard
Standard
Fuel
Gasoline
Pressure
High Pressure
Application
Fire
Product Description

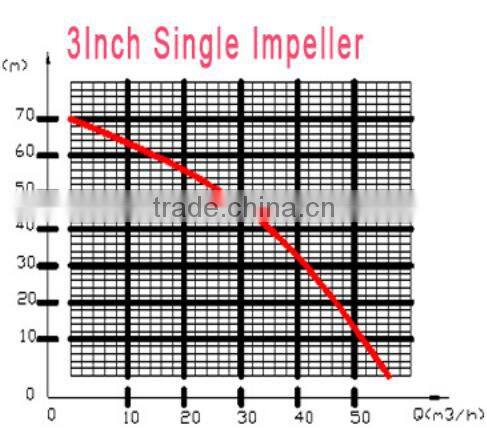

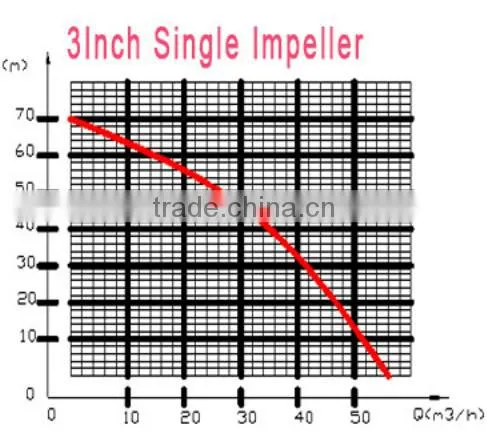

| ITEM | HP80 |
| Outlet Size(mm) | 65 |
| Inlet Size(mm) | 80 |
| Speed(rpm) | 3600 |
| Displacement Q.max(m3/h) | 55 |
| Lift H.max(m) | 70 |
| Suction(m) | 7 |
| Model Engine | 190F |
Accessories Parts
| Erial number | Name | Number |
| 1 | Water pump cover | 1 |
| 2 | Aluminum fllat washer Φ8×Φ16×1.5 | 4 |
| 3 | Bolt M8×65 GB5787 | 4 |
| 4 | Pump sealing ring | 1 |
| 5 | Mechanical seal/ceramic | 1 |
| 6 | Connecting shaft | 1 |
| 7 | Key | 1 |
| 8 | Impeller-1 | 1 |
| 9 | Eddy shell-1 | 1 |
| 10 | Eddy shell sealing ring -1 | 1 |
| 11 | Impeller-2 | 1 |
| 12 | Iron flat washer Φ10×Φ30×2 | 1 |
| 13 | Bolt M10×20 GB5783 | 1 |
| 14 | Eddy shell-2 | 1 |
| 15 | Eddy shell sealing ring-2 | 1 |
| 16 | Water pump body | 11 |
| 17 | Outlet gasket | 1 |
| 18 | Bolt M8×25 | 10 |
| 19 | The water outlet joint | 1 |
| 20 | Rubber plug gasket | 2 |
| 21 | Threaded plug gasket | 2 |
| 22 | Inlet sealing gasket | 1 |
| 23 | Inlet joint | 1 |
| 24 | Pipe joint sealing gasket | 2 |
| 25 | Pipe joint connecting nut | 2 |
| 26 | Pipe joint | 2 |
| 27 | Clamp | 3 |
| 28 | The filtering orifices | 1 |
| 29 | Filter cover | 1 |
| 30 | Bolt M10×30 GB5787 | 6 |
| 31 | Nut M10 GB6177 | 6 |
Company Information
Business type:manufacturer,trading company.
Location:chongqing,china(mainland).
Year established:2010.
Company certifications:
Main products:chemical pumps,sewage pumps,self priming drag pumps,self priming high lift pumps,self priming pumps.
Our philosophy is to provide our clients with a wide choice of quality products and unprecedented services,we assure our clients of a mutually beneficial relationship as we look forward to developing a long term strategic partnership with your esteemed organization.
FAQ
1.Q:Are you a manufactory or trading company?
A:We are water pump manufactory with more than six years production experience,welcome to visit our factory.
2.Q:What's your MOQ?
A:Trial sample order is ok.
3.Q:What's ypur payment terms?
A:T/T 30% payment in advance,70% pay it when we send all goods after.
