Small Engine Driven High Lift Micro Water Pump

Chongqing Tianzhiyuan Machinery Co., Ltd.
Small Engine Driven High Lift Micro Water Pump thumbnail-1
Small Engine Driven High Lift Micro Water Pump thumbnail-2
Small Engine Driven High Lift Micro Water Pump thumbnail-3
Small Engine Driven High Lift Micro Water Pump thumbnail-4
Small Engine Driven High Lift Micro Water Pump thumbnail-5
Small Engine Driven High Lift Micro Water Pump photo-1
Small Engine Driven High Lift Micro Water Pump photo-2
Small Engine Driven High Lift Micro Water Pump photo-3
Small Engine Driven High Lift Micro Water Pump photo-4
Small Engine Driven High Lift Micro Water Pump photo-5
US$ 31 - 36 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
Juanyong
Model Number:
HP40A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing & Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name Juanyong
Model Number HP40A
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Hydraulic
Standard or Nonstandard Standard
Fuel Gasoline
Pressure High Pressure
Application Fire
Product Description



Quality Control:
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer’s own inspection.
4: Third party inspection.
5: Testing: UT, PT, MT, X-ray testing etc.
6: GB/T6402-91, JB4730-2000, JB4726-2000, JB4727-2000, JB4728-2000 and JB/T5000.8-1998.



Specifications of 1.5 Inch High Lift Water Pump

ItemHP40A
Inlet Size(mm)40
Outlet Size(mm)40
Speed(rpm) 3600

Displacement

Q.max(m3 /h)

12

Lift H.max(m)

50
 Suction(m)7
 Engine Model 168F

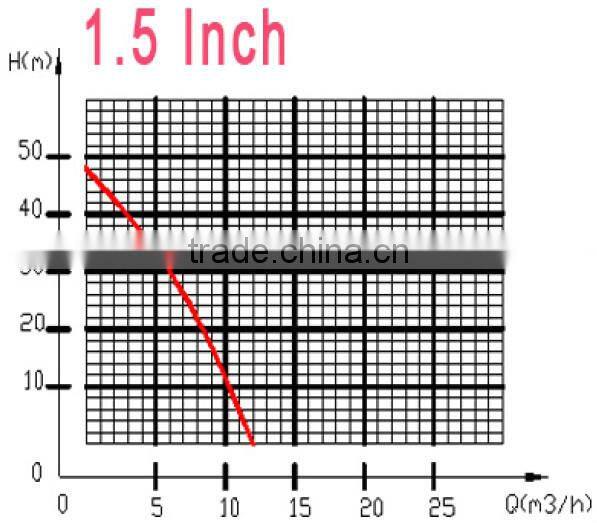

 Performance  Curve



 Small engine driven high lift micro water pump

Water Pump Part List
No.NameNumber
1water pump cover1
2Nut M141
3Bolt M6×254
4GB57871
5Pump sealing ring1
6mechanical seal/ceramic1
7Impeller1
8Eddy shell1
9Eddy shell sealing ring1
10water pump body1
11Outlet gasket1
12The water outlet joint8
13Bolt M66
14Bolt M6×552
15Threaded plug pump1
16Inlet sealing gasket1
17Inlet joint2
18Pipe joint sealing gasket2
19Pipe joint connecting nut2
20Clamp3
21filter cover1
22The handle1
23Connecting flange1



Factory Pictures





Our Service

Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.

Certifications

Small engine driven high lift micro water pump

Small engine driven high lift micro water pump

Small engine driven high lift micro water pump
