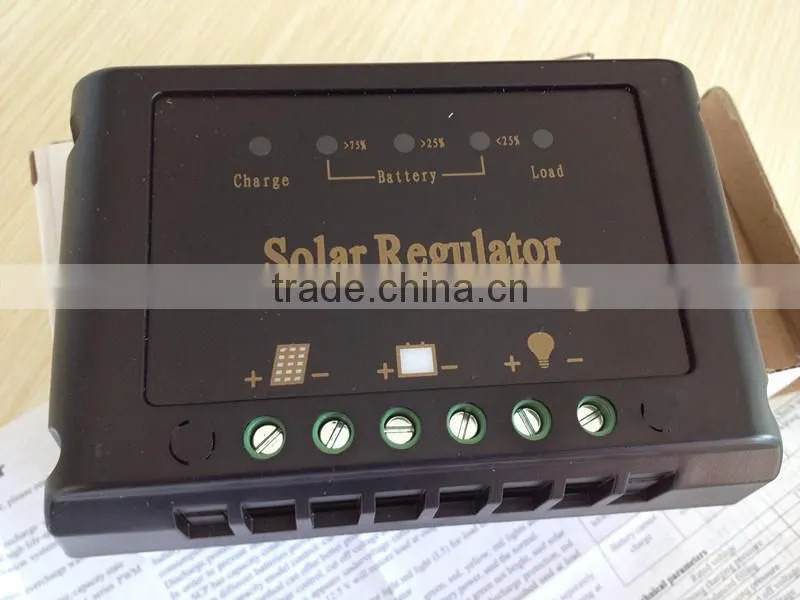

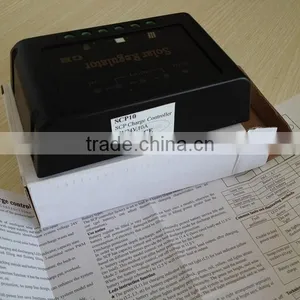

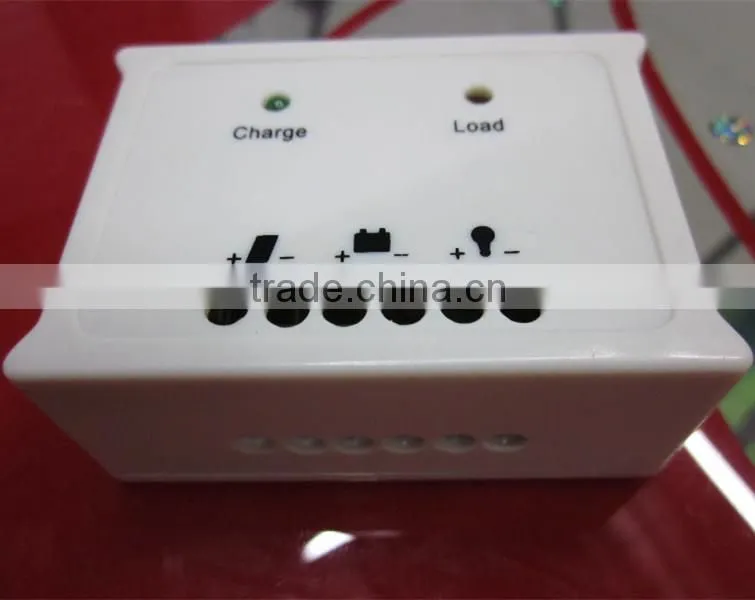

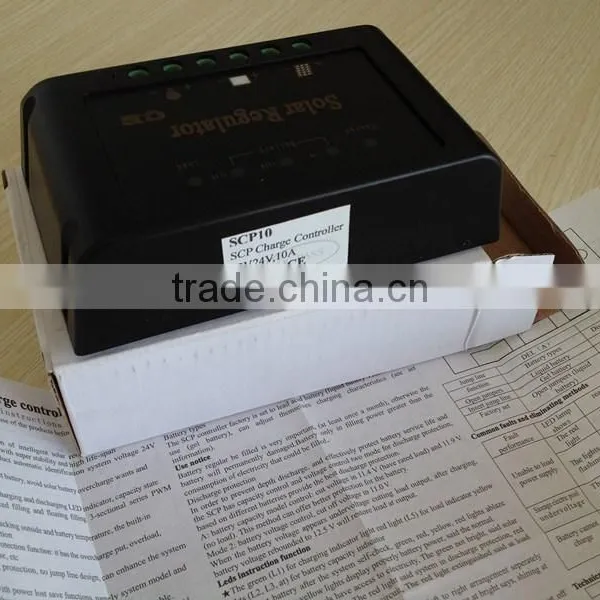

Integrated constant current led driver PWM solar charge controller

Name: Integrated constant current led driver PWM solar charge controller
Brand: PWM solar charge controller
Price: USD $10 - 18 / Piece

FOB Price

USD $10 - $18 / Piece

10 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port shanghai shenzhen ningbo
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	PWM solar charge controller	Model Number:	YC-S	Application:	Other, Charger Controller, Solar Thermal
Rated Voltage:	Other, 12V 24V	Maximum Current:	10A

Product Description

Specifications

PWM solar charge controller
12V/24V Automatic identification
solar lightig & charge controller
82*45*26mm IP56 protection

Integrated constant current led driver PWM solar charge controller

Product Description

This product is the new generation of intelligent solar recharge controller. The industrial product design reliability, with super stability and high life-span.

The department example product automatic identification system voltage 24V and 12V
The controller is used to protect battery, avoid solar battery overcharge wants and load output
Adopted MCU control, five charging and discharging LED indicator, capacity state
With strong charger, balanced filling and floating filling 3-sectional series PWM temperature compensation function
Automatic detection and tracking outside and battery temperature, the built-in temperature compensation function
Have overall electronic protection, it has the overcharge put, overload, short-circuit, answer the reverse, etc
Has the TVS lightning protection, no jump line design, can enhance the system reliability and durability
Parameter setting with power lost save functions, namely system model and control parameters and other important data are stored in chip inside, fell after power not to lose, and makes the system more reliable
All control all adopt industrial-class chips and precision components, can in cold, high temperature, humid environment normal operation

Rated Voltage	12V/24V automatic identification
Rated charge current	1A	2A	3A	5A	10A	15A	20A
Rated load current	1A	2A	3A	5A	10A	15A	20A
Max. wire diameter	2.5mm²			4mm²
No load losses<	2mA			4mA
Direct charge voltage	14.8V/29.6V			14.8V/29.6V
Bakanced filling	14.5V/29V			14.5V/29V
Float charge voltage	13.7V/27.4V			13.7V/27.4V
Over discharge voltage	11V/22V±0.2			11V/22V±0.2
Charge recover voltage	12.5V/25V±0.2			12.5V/25V±0.2
Over voltage protection	15.5V/31.5V			15.5V/31.5V
Weight	50g			200g
Size	824526			1187832
Temperature compensation	-3mV/℃/2V
Working temperature	from -40 ℃ to 60 ℃
Protection grade	IP56

What we supply?

Customize solar water pump system

Customize solar street light system

Customize home solar system

Customize grid tie solar system

Any question about PWM solar charge controller or other products, please feel free to contact Sunny
