Yard Lamp & Street Light Solar Charger Controller 5A 12V/24V Automatic Identification
US$ 5 - 10
/ Piece
10 Pieces(Min. Order)
- shanghai shenzhen ningbo
- T/T Credit Card PayPal
You May Like
-
3A 12V 24V Automatic Identification Low Power Controller Yard Lamp & Street Light Solar Lighting & Charge Controller
-
Solar Street Light System 10A 12V / 24V Automatic Identification Lighting & Time Contoller
-
10A 12V/24V Automatic Identification Solar Charge Controller for Street Light
-
Lighting & Time Control 15A 12V Solar Power Controller
-
15A, 12V Solar Charge Controller Solar Street Light Controller With LED Display
-
10 Years Warranty Solar Powered Generator System for Water Pump, Daily Electricity Supply
Product Details
| Brand Name | solar charger contoller | Model Number | YC-S | |
| Application | Other, Charger Controller, Solar Thermal | Rated Voltage | Other, 12V 24V | |
| Maximum Current | 3A |
Product Description
Specifications
solar charger contoller5A 12V/24V Automatic identification
solar lightig & charge controller
82*45*26mm IP56 protection

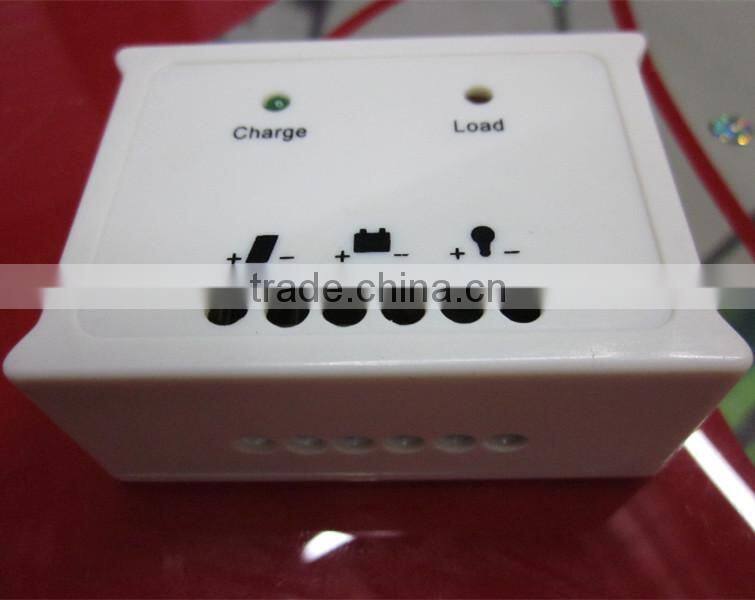

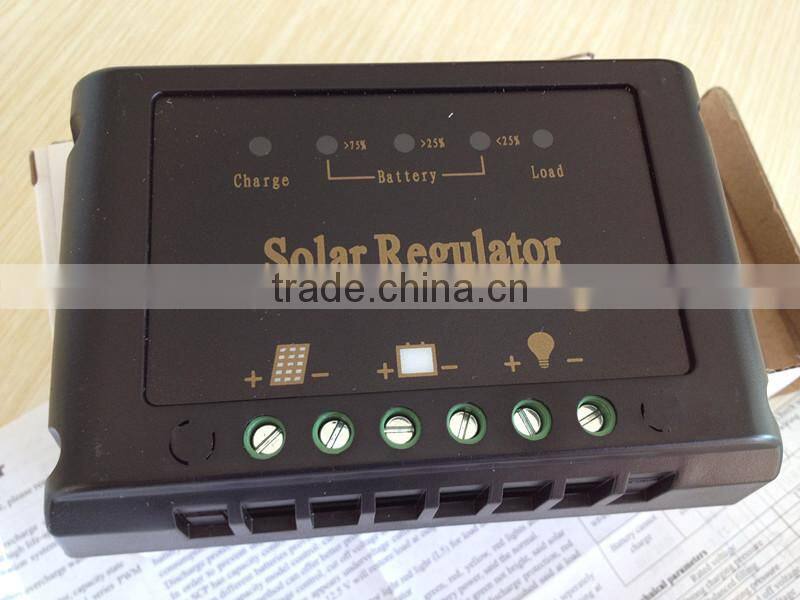

Yard lamp & street light solar charger controller 5A 12V/24V automatic identification
Product Description
This product is the new generation of intelligent solar recharge controller. The industrial product design reliability, with super stability and high life-span.
- The department example product automatic identification system voltage 24V and 12V
- The controller is used to protect battery, avoid solar battery overcharge wants and load output
- Adopted MCU control, five charging and discharging LED indicator, capacity state
- With strong charger, balanced filling and floating filling 3-sectional series PWM temperature compensation function
- Automatic detection and tracking outside and battery temperature, the built-in temperature compensation function
- Have overall electronic protection, it has the overcharge put, overload, short-circuit, answer the reverse, etc
- Has the TVS lightning protection, no jump line design, can enhance the system reliability and durability
- Parameter setting with power lost save functions, namely system model and control parameters and other important data are stored in chip inside, fell after power not to lose, and makes the system more reliable
- All control all adopt industrial-class chips and precision components, can in cold, high temperature, humid environment normal operation
| Rated Voltage | 12V/24V automatic identification | ||||||
| Rated charge current | 1A | 2A | 3A | 5A | 10A | 15A | 20A |
| Rated load current | 1A | 2A | 3A | 5A | 10A | 15A | 20A |
| Max. wire diameter | 2.5mm² | 4mm² | |||||
| No load losses< | 2mA | 4mA | |||||
| Direct charge voltage | 14.8V/29.6V | 14.8V/29.6V | |||||
| Bakanced filling | 14.5V/29V | 14.5V/29V | |||||
| Float charge voltage | 13.7V/27.4V | 13.7V/27.4V | |||||
| Over discharge voltage | 11V/22V±0.2 | 11V/22V±0.2 | |||||
| Charge recover voltage | 12.5V/25V±0.2 | 12.5V/25V±0.2 | |||||
| Over voltage protection | 15.5V/31.5V | 15.5V/31.5V | |||||
| Weight | 50g | 200g | |||||
| Size | 82*45*26 | 118*78*32 | |||||
| Temperature compensation | -3mV/℃/2V | ||||||
| Working temperature | from -40 ℃ to 60 ℃ | ||||||
| Protection grade | IP56 | ||||||
What we supply?
Customize solar water pump system
Customize solar street light system
Customize home solar system
Customize grid tie solar system
Any question about solar charger contoller or other products, please feel free to contact Sunny
