40A 48V LCD Display off Grid Home Solar System PWM Solar Charge Controller

Name: 40A 48V LCD Display off Grid Home Solar System PWM Solar Charge Controller
Brand: off grid solar controller
SKU: 141984784
Availability: InStock

Yunnan Yaochuang Energy Development Co., Ltd.

40A 48V LCD Display off Grid Home Solar System PWM Solar Charge Controller thumbnail-1

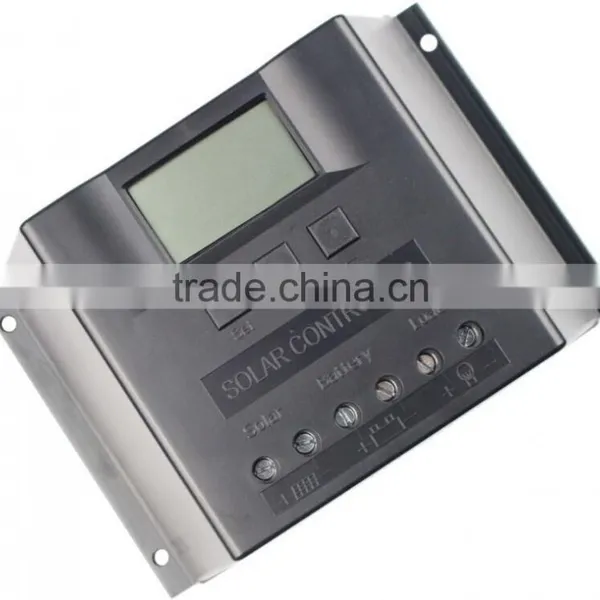

40A 48V LCD Display off Grid Home Solar System PWM Solar Charge Controller photo-1

US$ 10 - 18 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Brand Name:

off grid solar controller

Model Number:

YC-S

Application:

Other, Charger Controller, Solar Thermal

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai shenzhen ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name off grid solar controller

Model Number YC-S

Application Other, Charger Controller, Solar Thermal

Rated Voltage 48V

Maximum Current 40A

Specifications

off grid solar controller
48V Automatic identification
solar lightig & charge controller
90*188*48mm IP56 protection

40A 48V LCD display off grid home solar system PWM solar charge controller

Product Description

This product is the new generation of intelligent solar recharge controller. The industrial product design reliability, with super stability and high life-span.

The department example product automatic identification system voltage 24V and 12V
The controller is used to protect battery, avoid solar battery overcharge wants and load output
Adopted MCU control, five charging and discharging LED indicator, capacity state
With strong charger, balanced filling and floating filling 3-sectional series PWM temperature compensation function
Automatic detection and tracking outside and battery temperature, the built-in temperature compensation function
Have overall electronic protection, it has the overcharge put, overload, short-circuit, answer the reverse, etc
Has the TVS lightning protection, no jump line design, can enhance the system reliability and durability
Parameter setting with power lost save functions, namely system model and control parameters and other important data are stored in chip inside, fell after power not to lose, and makes the system more reliable
All control all adopt industrial-class chips and precision components, can in cold, high temperature, humid environment normal operation

Technology Data

Rated current	40A	Rated voltage	48V
PV module voltage	≤100V	Float charge voltage	55.2V
Low voltage protection	42.8V	Low voltage recovery	50V
Non load loss	≤30mA	short circuit loss	≤170mV
Charge mode	PWM	Temperature compensation	-4mV/Cell/℃
Installation wire	≤7# AWG(16mm2)	Working temperature	-10℃~60℃
Storage temperature	-30℃~70℃	Weight	580g
Dimension	90×188×48mm	Mounting hole spacing	60×178mm --Φ5
