Home > Products > screw chiller/scroll chiller > chiller, air-cooled water chiller,

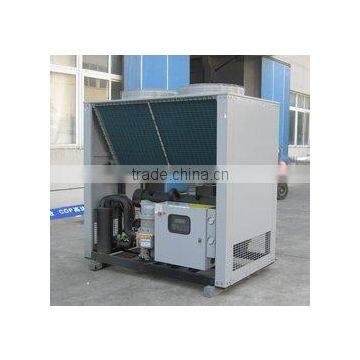

chiller, air-cooled water chiller,
USD $11,417 - $126,176
/ Set
1 Set(Min.Order)
- 300 Set / Sets per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
- Dongguan Carno Plastic Crusher Blade Knife Sharpener
- Quality Warranty 15ton small scroll air cooled water chillers
- New Design water cooler evaporative air cooler
- Sanyo Scroll Compressor ce energy efficient brine water chiller
- Dakin Compressor ce industrial brine water chiller
- Low Temperature Control water chiller filter
Product Details
Type: | Air-Cooled | Place of Origin: | Shanghai, China | Brand Name: | YUAO |
Model Number: | YAF-184 | Cooling Capability(kw): | 56.5kW |
Product Description
chiller,series chiller, air-cooled water chiller,air cooled chillers, display chiller, upright chillers, air conditioner, beer chiller, chiller bag, industrial water chiller, machine chiller, chiller, screw chillers, chiller, chiller aquarium
MYA-F SERIES CHILLER (AIR COOLED TYPE) | ||
Model NO | YAF-184 | |
PRICE:FOB SHANGHAI | US$13,235 | |
Cooling capacity | Kcal/h | 158,403 |
kW | 184 | |
power consumption | kW | 56.5 |
operating current | A | 110.1 |
start current | A | 312 |
Power supply | 380v/3pH/50Hz | |
capacity control | 4- step capacity control | |
Compressor quantity | 1* semi-hermetic crew compressor | |
refrigerant oil charge | kg | 58 |
Evaporator type | water tank type/shell tube type | |
joint size | DN 80 | |
water flow rate | M3/H | 31.7 |
head loss | M | 5.6 |
Refrigerant type | R22/R407/R134A | |
Condenser | coil+axial fan | |
fan | power*quantity | 850*8 |
air flow rate | M3/min | 1500 |
Net Weight | kg | 2700 |
Operating weight | kg | 2800 |
Dimension | L(mm) | 3060 |
W(mm) | 2200 | |
H(mm) | 2220 | |
1.The above cooling capacity is based on the ambient temp 35°C, | ||
2.the inlet water temp 12°C,the outlet water temp7°C. |
....
