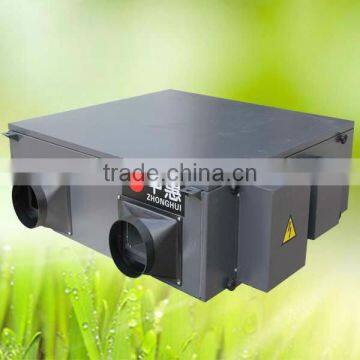

energy recovery ventilators price

Specifications

1.energy recovery ventilators price
2.H with aluminium core
3.Flexible instalation
4.Home

energy recovery ventilators  price

Packaging & Delivery

Packaging Details:	Crate/Wooden case/Carton
Delivery Detail:	Within 7-15 days after received remittance

Specifications

Heat recovery industry air ventilator
1.Air volume:6000m3/h
2.Static pressure:250Pa
3.Efficiency:76%
4.Input power:4158W
wall mounted heating and cooling unit



Product description:

H Series Heat Recovery industry air Ventilator built-in highly efficient heat exchanger, so that the return air and supply air can realize sensible heat exchange and latent heat exchanger during the air flow on the plate, not only provides a comfortable temperature, but also recover and save the energy.



Features:

1.Energy Saving

Crossflow energy recovery unit, use patent technology, improved the energy recovery efficiency, reduced the air flow resistance

2.Application Range

Air flow 4000~16000m3/h, suitable for meeting room, office, machine room and industrial occasions which contains stink, dust, bacteria, viruses.

3.Convenient Installation

Unit ground installation, placed in the base of the smooth, on the ceiling space meet the conditions set can also be installed in the ceiling, a bottom channel base, more safety. Tuyere is diversiform, can according to the customer request design, ease of installation.

4.Low Noise

Optimized structure design, used sound-absorbing material and nonmetallic impeller, guaranteed the good static sound effect.

5.Complete Function

Two-way air exchange, air purification, energy recovery and so on, easy to control.



Performance Parameter:

Model	Air Volume(m3/h)	Static Pressure(Pa)	Volts/Hz	Motor Power (Kw)	Temperature Efficiency (%)	Noise [dB(A)]	Dimension (mm)	Re. Weight (kg)
H-02D	200	40	220V-1-50Hz	0.016*2	77	30	665x580x293	30
H-03D	300	50	220V-1-50Hz	0.03*2	77	32	745x600x293	35
H-04D	400	55	220V-1-50Hz	0.04*2	78	34	745x800x293	42
H-06D	600	110	220V-1-50Hz	0.15*2	76	35	820x900x293	50
H-08D	800	110	220V-1-50Hz	0.15*2	76	37	1110x880x413	76
H-10D	1000	130	220V-1-50Hz	0.20*2	75	38	1110x1135x413	96
H-16D	1500	150	380V-3-50Hz	0.37*2	73	48	1350x940x500	142
H-20D	2000	150	380V-3-50Hz	0.45*2	73	53	1460x1020x500	166
H-25D	2500	160	380V-3-50Hz	0.55*2	74	56	1460x1020x600	182
H-30D	3000	190	380V-3-50Hz	0.80*2	74	59	1600x1100x540	196
H-35D	3500	100	380V-3-50Hz	2345	70	61	1600X1100X620	230
H-40D	4000	210	380V-3-50Hz	1.00*2	75	62	1750X1210X600	260
H-55D	5000	210	380V-3-50Hz	1.80*2	75	65	1800X1210X760	330
H-60D	6000	240	380V-3-50Hz	1.80*2	76	66	1850X1210X900	370



Installation drawing:
