Specifications
Portable DTH Hammer1.Lower energy consumption
2.Higher impact frequency
3.Easy and cheap maintenance
4.Long life, reliable
Portable Forging DTH Hammer for Mining and Hard Rock Drilling(DHD360/Cop64):
1. 10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide
It is a kind of high air pressure DTH Hammer without foot valve, our newest design. It is also one of the most advanced DTH Hammers in the world.
It has the following advantages:
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
ND75A DTH Hammer Technical Data
Length (Without Bit) |
Weight (Without Bit) |
External diameter |
Bit Shank |
Hole Range |
Connection Thread |
||
1258mm |
120.00kg |
165mm |
Cop64 DHD360 |
175-216 |
API3 1/2Reg |
||
Working Pressure |
Impact rate at 1.7Mpa |
Recommended rotation speed |
Air consumption |
||||
1.0Mpa |
1.8Mpa |
2.4Mpa |
|||||
1.0-2.5Mpa |
23HZ |
20-30r/min |
11m³/min |
20m³/min |
28m³/min |
||
|
|
|
|
|
|
|
|
Item Description |
Weight (kg) |
Part Number |
|

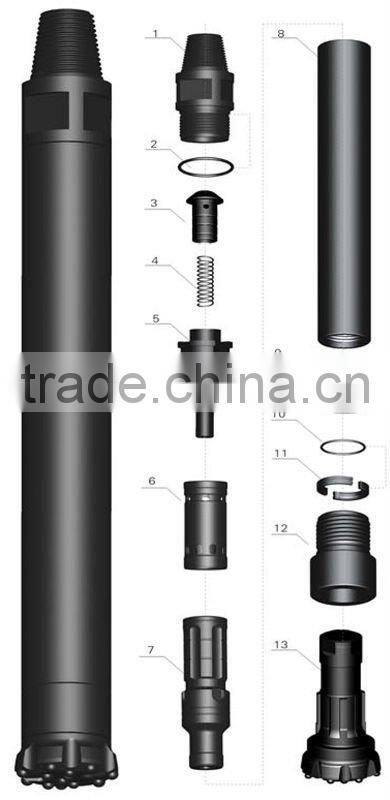

1. Top Sub 2. O Ring of Top Sub 3. Check Valve 4. Spring 5. Air Distributor 6. Internal Cylinder 7. Piston 8. External Cylinder 9. Guided Sleeve 10. o Ring of Stop Ring 11. Stop Ring 12. Drive Chuck 13. Drill Bit |
23.00 0.015 0.70 0.10 4.50 6.50 28.00 40.00 7.50 0.01 0.80 8.00 28.50 |
ND75A01 ND75A02 ND75A03 ND75A04 ND75A05 ND75A06 ND75A07 ND75A08 ND75A09 ND75A10 ND75A11 ND75A12 ND75A13 |
Our advantages:
We have advanced production equipments & talented researchers & technicians & rich experiences in R & D and production.
We use the best quality raw materials.
We adopt advanced production technology & strict testing procedure.
We passed ISO9001 quality management system certification.
We accept OEM manufacturing and produce on your design.
