Specifications
DTH drill Hammer1.Lower energy consumption
2.Higher impact frequency
3.Easy and cheap maintenance
4.Long life, reliable
Faster Drilling Pneumatic DTH Drill Hammer Mission80:
1. 10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide
It is a kind of high air pressure DTH Hammer without footvalve, our newest design. It is also one of the most advanced DTH Hammers in the world.
It has the following advantages:
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
NM8A/Mission80 DTH Hammer Technical Data
Length (Without Bit) |
Weight (Without Bit) |
External diameter |
Bit Shank |
Hole Range |
Connection Thread |
||
1338mm |
176.00kg |
180mm |
HM8 |
195-254 |
API4 1/2Reg |
||
Working Pressure |
Impact rate at 1.7Mpa |
Recommended rotation speed |
Air consumption |
||||
1.0Mpa |
1.8Mpa |
2.4Mpa |
|||||
1.0-2.5Mpa |
22HZ |
15-25r/min |
12m³/min |
22m³/min |
28m³/min |
||
|
|
|
|
|
|
|
|
Item Description |
Weight (kg) |
Part Number |
|

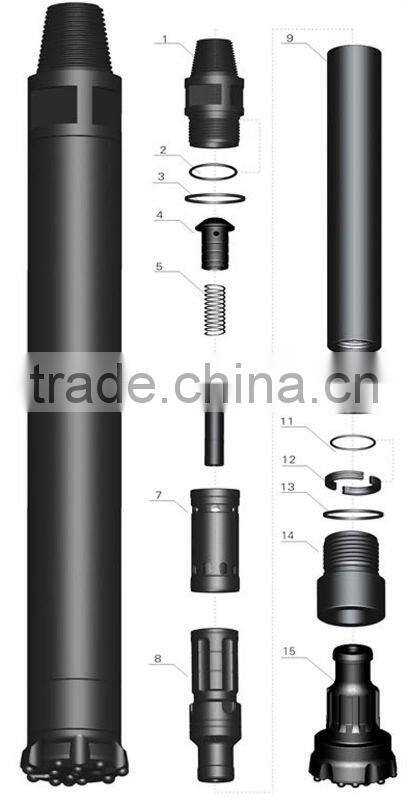

1. Top Sub 2. O Ring of Top Sub 3. Breakout Ring 4. Check Valve 5. Spring 6. Air Distributor 7. Internal Cylinder 8. Piston 9. External Cylinder 10. Guided Sleeve 11. o Ring of Stop Ring 12. Stop Ring 13. Breakout Ring 14. Drive Chuck 15. Drill Bit |
34.00 0.015 0.30 1.20 0.10 6.00 6.50 42.50 61.00 5.30 0.01 1.50 0.30 17.30 31.00 |
NM8A01 NM8A02 NM8A03 NM8A04 NM8A05 NM8A06 NM8A07 NM8A08 NM8A09 NM8A10 NM8A11 NM8A12 NM8A13 NM8A14 NM8A15 |
Our advantages:
We have advanced production equipments & talented researchers & technicians & rich experiences in R & D and production.
We use the best quality raw materials.
We adopt advanced production technology & strict testing procedure.
We passed ISO9001 quality management system certification.
We accept OEM manufacturing and produce on your design.
