Faster Drilling Speed and Most Advanced Air DTH Hammer(QL80)

Xian Wellwork Industrial Co., Ltd.
Faster Drilling Speed and Most Advanced Air DTH Hammer(QL80) thumbnail-1
Faster Drilling Speed and Most Advanced Air DTH Hammer(QL80) photo-1
US$ 500 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
New Diamond
Model Number:
QL80
Machine Type:
Drilling Tool
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name New Diamond
Model Number QL80
Machine Type Drilling Tool
Material Carbide
Processing Type Forging
Use Ore Mining
Place of Origin Hunan, China
Type Other, hammer
Certification Other, ISO9001:2008
Product Description

Faster Drilling Speed and Most Advanced Air DTH Hammer:

1. 10 years manufacturing experience;

2. Certificate: ISO9001:2008

3. Material: Carbide

It is a kind of high air pressure DTH Hammer without footvalve, our newest design. It is also one of the most advanced DTH Hammers in the world.

It has the following advantages:

1. Out of the trouble of foot valve fracture and expansion and contraction.

2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.

3. Simple structure, reliable parts, long life, easy and cheap maintenance.

4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.

NQL8A DTH Hammer Technical Data

Length (Without Bit)

Weight (Without Bit)

External diameter

Bit Shank

Hole Range

Connection Thread

1330mm

171.00kg

180mm

QL8

195-254

API4 1/2Reg

Working Pressure

Impact rate at 1.7Mpa

Recommended rotation speed

Air consumption

1.0Mpa

1.8Mpa

2.4Mpa

1.0-2.5Mpa

22HZ

15-25r/min

12m³/min

22m³/min

28m³/min

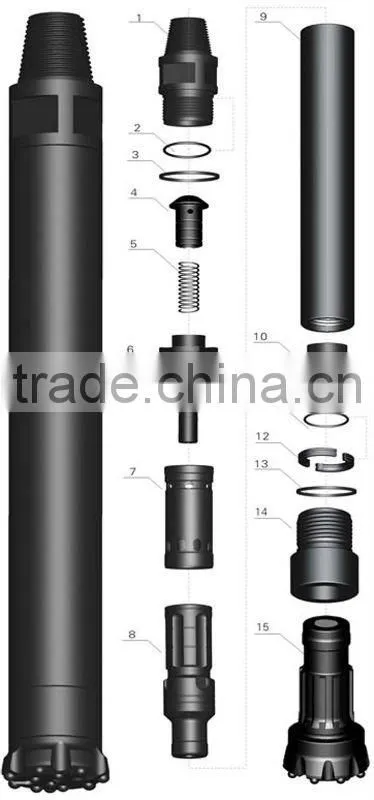

Item Description

Weight (kg)

Part Number

1. Top Sub

2. O Ring of Top Sub

3. Breakout Ring

4. Check Valve

5. Spring

6. Air Distributor

7. Internal Cylinder

8. Piston

9. External Cylinder

10. Guided Sleeve

11. o Ring of Stop Ring

12. Stop Ring

13. Breakout Ring

14. Drive Chuck

15. Drill Bit

34.00

0.015

0.30

1.20

0.10

6.00

6.50

42.50

59.00

6.30

0.01

1.40

0.30

13.00

35.00

NQL8A01

NQL8A02

NQL8A03

NQL8A04

NQL8A05

NQL8A06

NQL8A07

NQL8A08

NQL8A09

NQL8A10

NQL8A11

NQL8A12

NQL8A13

NQL8A14

NQL8A15

Our Services

Our advantages:

We have advanced production equipments & talented researchers & technicians & rich experiences in R & D and production.
We use the best quality raw materials.
We adopt advanced production technology & strict testing procedure.
We passed ISO9001 quality management system certification.
We accept OEM manufacturing and produce on your design.
