Specifications
Hydraulic Forging DTH Hammer1.Lower energy consumption
2.Higher impact frequency
3.Easy and cheap maintenance
4.Long life
Hydraulic Forging DTH Hammer(SD8):
1. 10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide
It is a kind of high air pressure DTH Hammer without footvalve, our newest design. It is also one of the most advanced DTH Hammers in the world.
It has the following advantages:
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
NSD8A DTH Hammer Technical Data
Length (Without Bit) | Weight (Without Bit) | External diameter | Bit Shank | Hole Range | Connection Thread | ||
1330mm | 174.00kg | 180mm | SD8 | 195-254 | API4 1/2Reg | ||
Working Pressure | Impact rate at 1.7Mpa | Recommended rotation speed | Air consumption | ||||
1.0Mpa | 1.8Mpa | 2.4Mpa | |||||
1.0-2.5Mpa | 22HZ | 15-25r/min | 12m³/min | 22m³/min | 28m³/min | ||
|
|
|
|
|
|
|
|

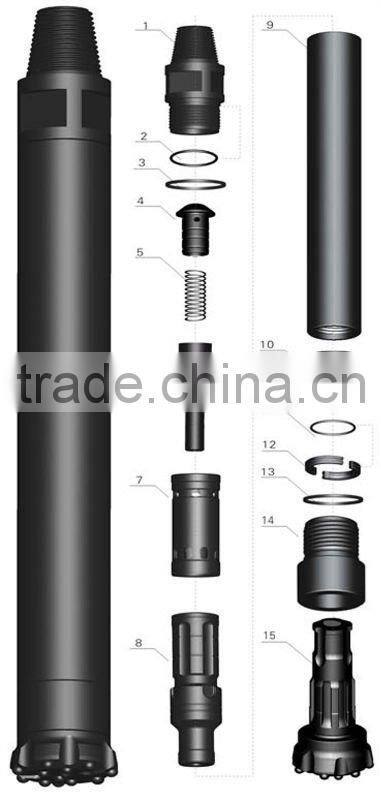

Item Description | Weight (kg) | Part Number |
1. Top Sub 2. O Ring of Top Sub 3. Breakout Ring 4. Check Valve 5. Spring 6. Air Distributor 7. Internal Cylinder 8. Piston 9. External Cylinder 10. Guided Sleeve 11. o Ring of Stop Ring 12. Stop Ring 13. Breakout Ring 14. Drive Chuck 15. Drill Bit | 34.00 0.015 0.30 1.20 0.10 6.00 6.50 42.50 59.00 6.00 0.01 1.20 0.30 16.00 37.00 | NSD8A01 NSD8A02 NSD8A03 NSD8A04 NSD8A05 NSD8A06 NSD8A07 NSD8A08 NSD8A09 NSD8A10 NSD8A11 NSD8A12 NSD8A13 NSD8A14 NSD8A15 |
Our advantages:
We have advanced production equipments & talented researchers & technicians & rich experiences in R & D and production.
We use the best quality raw materials.
We adopt advanced production technology & strict testing procedure.
We passed ISO9001 quality management system certification.
We accept OEM manufacturing and produce on your design.
