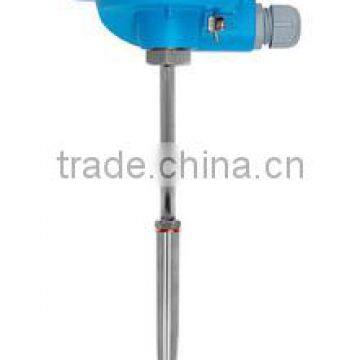

Omnigrad S TC15 Modular TC thermometer
Comprehensive and common temperature measurement technology for almost all branches of industry
Product Overview
The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.
Benefits
High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
High degree of insert compatibility and design as per DIN 43772
Extension neck to protect the head transmitter from overheating
Fast response time with reduced/tapered tip form
Types of protection for use in hazardous locations: Intrinsic safety (Ex ia), non-sparking (Ex nA)
Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™
Field of application
Universal range of application
Particularly suitable for steam and gas applications with high process pressures and temperatures
Measuring range: –40 to 1100 °C (–40 to 2012 °F)
Static pressure range up to 400 bar (5800 psi)
Degree of protection: up to IP68
Technical information
| Measuring Principle | Thermocouple | |
| Characteristic / Application | metric style modular temperature assembly universal range of application suitable for hazardous areas suitable for high process pressures flanged process connection with neck incl. thermowell / protection tube (metal) | |
| Terminal head | TA20A - aluminium - cover with screws TA20B - plastics - screw cover TA20D - aluminium - hinged cover high TA20J - SS - deep-drawn w. or w/o. display TA20R - SS - machined w. screw cover TA20W - aluminium - cover w. snap fit TA21E - aluminium - screw cover w. chain TA30A - E+H, aluminium - cover low - w. or w/o. display TA30D - E+H, aluminium - cover high | |
| Thermowell / protection tube | bar stock (drilled) | |
| Insert / probe | mineral insulated (MI), flexible | |
| Outer diameter protection tube | 18,0 mm (0,71'') 24,0 mm (0,94'') | |
| Max. immersion length on request | up to 30.000,00 mm (1.181,10'') | |
| Material protection tube/thermowell | 1.0460 (A105) 1.4571 (316Ti) 1.7335 (13CrMo4-5; F-11) Alloy C276 (2.4819) Duplex SAF 2205 (1.4462) Titan Gr2 (3.7035 ) | |
| Optional coating | Tantal | |
| Process connection | weld in version flange: DN25 PN40 B1 (EN1092) DN40 PN40 B1(EN1092) DN50 PN40 B1 (EN1092) ASME 1" 150 RF (B16.5) ASME 1" 300 RF (B16.5) | |
| Tip shape | tapered | |
| Surface roughness Ra | 0,8 μm (31,5 μin.) | |
| Operating temperature range | Type K: -40 °C ... 1.100 °C (-40 °F ...2.012 °F) Type J: -40 °C ...750 °C (-40 °F ...1.382 °F) | |
| Max. process pressure (static) | at 20 °C: 400 bar (5.802 psi) | |
| Accuracy | class 1 acc. to IEC 60584 | |
| Response time | depending on configuration | |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) | |
| Ex - approvals | ATEX II1D Ex ia IIIC, II1G Ex ia IIC T6 ATEX II1/2D Ex ia IIIC,II1G Ex ia IIC T6 ATEX II1G Ex ia IIC T6 ATEX II 3 G Ex nA IIC T6, II3D NEPSI Ex ia IIC T6 IECEx Ex ia IIC T6 Ga/Gb NEPSI Ex nA IIC T6 | |
| Certification | Gost Metrology SIL (transmitter only) | |
