Omnigrad S TAF16 High Temperature TC Thermometer

Omnigrad S TAF16 High Temperature TC Thermometer thumbnail-1
Omnigrad S TAF16 High Temperature TC Thermometer thumbnail-2
Omnigrad S TAF16 High Temperature TC Thermometer photo-1

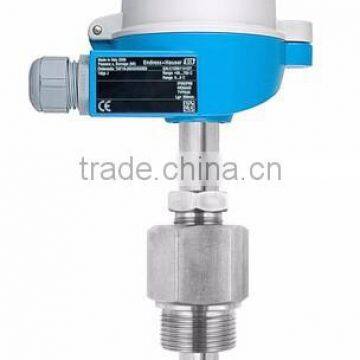

Omnigrad S TAF16 High Temperature TC Thermometer photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
TAF16
Contact Supplier Request Quote Chat Now
Xian Wellwork Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number TAF16

Omnigrad S TAF16 High temperature TC thermometer



Applicable for cement production, steel treatment, incinerators and fluidized bed furnaces



Product Overview





Measuring points with extremely high process temperatures require these special thermometers with ceramic or metal thermowells as well as thermocouples made from special metals, such as platinum and rhodium. The thermowell made from special materials protects from mechanical and chemical damages in the process and increases the life span of the used sensors. This leads to: Cost savings for maintenance of the measuring point, quality improvements of the products and increased plant safety.



Benefits

  • Long lifetime by usage of innovative thermowell materials with increased wear and chemical resistance

  • Long term stable measurement due to sensor protection with non-porous materials

  • Flexible product selection by modular design

  • Optimized life cycle costs by means of replaceable spare parts



Field of application

  • Applicable for cement production, steel treatment, incinerators and fluidized bed furnaces. The TAF16 contains a single or double TC insert and a metal or ceramic protection tube.

  • Process temperatures: up to +1700 °C (+3092 °F)



Technical information



Measuring Principle Thermocouple
Characteristic / Application metric style
modular temperature assembly
high temperature probe (furnace)
incl. thermowell / protection tube (metal)
Terminal head TA20A - aluminium - cover with screws
TA20D - aluminium - hinged cover high
DIN A - aluminium
Thermowell / protection tube welded protection tube
Insert / probe mineral insulated (MI), flexible
Outer diameter protection tube 14,00 mm …28,00 mm
(0,55'' ...1,1'')
Max. immersion length on request up to 4.525,00 mm (178,15'')
Material protection tube/thermowell 1.4401 (316)
1.4749 (~446)
1.4841 (310)
Alloy (2.4816)
Alloy (2.4851)
Incoloy 800HT (1.4959)
Kanthal AF
Kanthal Super
NiCo
Siliciumnitrid
Process connection compression fitting:
G1/2"
G3/4"
G1"
G11/4"
G11/2"
adjustable Flange
Tip shape straight
Operating temperature range Type K:
-40 C ...1.100 C
(-40 F ...2.012 F)
Type J:
-40 C ...750 C
(-40 F ...1.382 F)
Type N:
-40 C ...1.150 C
(-40 F ...2102 F)
Type S:
0 C ...1.400 C
(32 F ...2.552 F)
Max. process pressure (static) at 20 °C: 1 bar (15 psi)
Accuracy class 2 acc. to IEC 60584
Integration head transmitter yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
Certification SIL (transmitter only)
