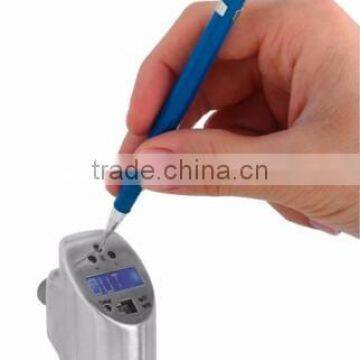

Thermophant T TTR31 Temperature Switch photo-2

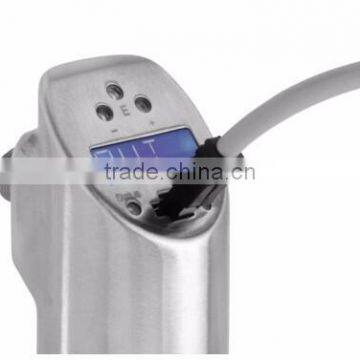

Thermophant T TTR31 Temperature Switch photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
TTR31
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number TTR31

Thermophant T TTR31 Temperature switch



Compact and cost-saving for safe monitoring of process temperatures



Product Overview



 Cost efficiency, optimal use of space, reliable operation, easy installation and commissioning indicate modern process measuring technology. The temperature switch completely fulfills these requirements. Designed for the safe measurement and monitoring of process temperatures it can be selected between one or two switch outputs as well as one switch output and one standardized analog output. Vibration-proof integrated thin-film sensors guarantee highest operational safety.

Benefits

  • Integrated switching electronics for decentral and economic process monitoring and control

  • High reproducibility and long-term stability

  • Function control and information on-site thanks to LEDs and digital display

  • Long-term stable temperature sensor made of platinum (Pt100 class A as per IEC 60751)

  • High accuracy across the entire ambient temperature range and short response time

  • Operation and vizualisation also with PC and FieldCare or ReadWin 2000 configuration software

  • DESINA-compliant

Field of application

Temperature switch for the monitoring, display and control of process temperatures in a range from -50 to 150 °C (-58 to 302 °F). Thermophant T TTR 31- with thread connections or coupling.

Electronic versions:

  • One PNP switch output

  • Two PNP switch outputs

  • 2 x PNP switch outputs or one PNP switch output and 4 to 20 mA output (active)

Technical information

Measuring PrincipleTemperature switch
Characteristic / ApplicationIntelligent temperature switch with Pt100 sensor (Class A)
DESINA compliant
Auxiliary power supply12...30 V DC
Accuracy-50...75 °C: <0,5 K
(-58...167 °F: <0,9 °F)
75...150 °C: <0,65 K
(167...302 °F: <1,2 °F)
Long term drift<0,1K/a (<0,2°F/a)
Operating temperature range-50...150 °C (-58...302 °F)
Process connectionthreads, clamp connection
HintPlease check also pressure switch Ceraphant T with the identical look and feel in the housing, the electronics and the software.
