FU24F PH/ORP SENCOM SensorLGSY

Product Information

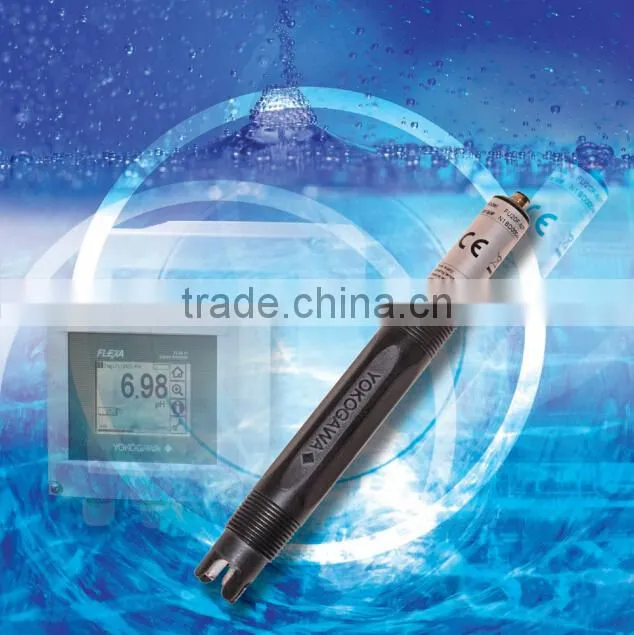

          FU24F pH/ORP SENCOM® sensor

Processes in which sensors are subjected to pressure changes normally decrease the useful life time. The internal pressure compensation feature of the analogue is made available for customers using digital sensors in the FU24F sensor.

The pressure changes of the process may cause fast desalting and dilution of the reference electrolyte. This on its turn will change the reference voltage being reason for drifting pHmeasurement.

By using the successful Yokogawa patented Bellow system integrated in the FU24F electrode, a strong pressure compensation mechanism is created. The build-in bellow ensures immediate interior pressure equalization to the outside pressure, making the sensor virtually insensitive to external pressure variations. A slight overpressure caused by the bellow tension, prevents fluid ingress and maintains a positive ion flow out of the sensor. This feature is of particular interest in pure water applications.

For applicability in chemically harsh applications chemical resistant PPS 40GF has been selected for manufacturing the sensor body.

Features

* Simple installation due to two sided threaded body.

* Direct easy installation in-line.

* Installation in by-pass loop or immersion assembly.

* Flow fitting installation in FF20 using adapter K1521JA or K1521JB.

* Optimal sensor for fluctuating pressure application due to patented bellow technique..

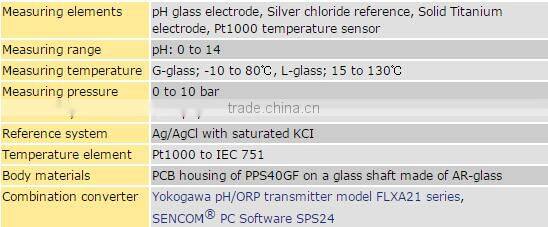

Specifications

Applications

  * Useing in a heavy industrial environment is possible .
